Test 60A: Diagnosing Trunk Key Cylinder Switch

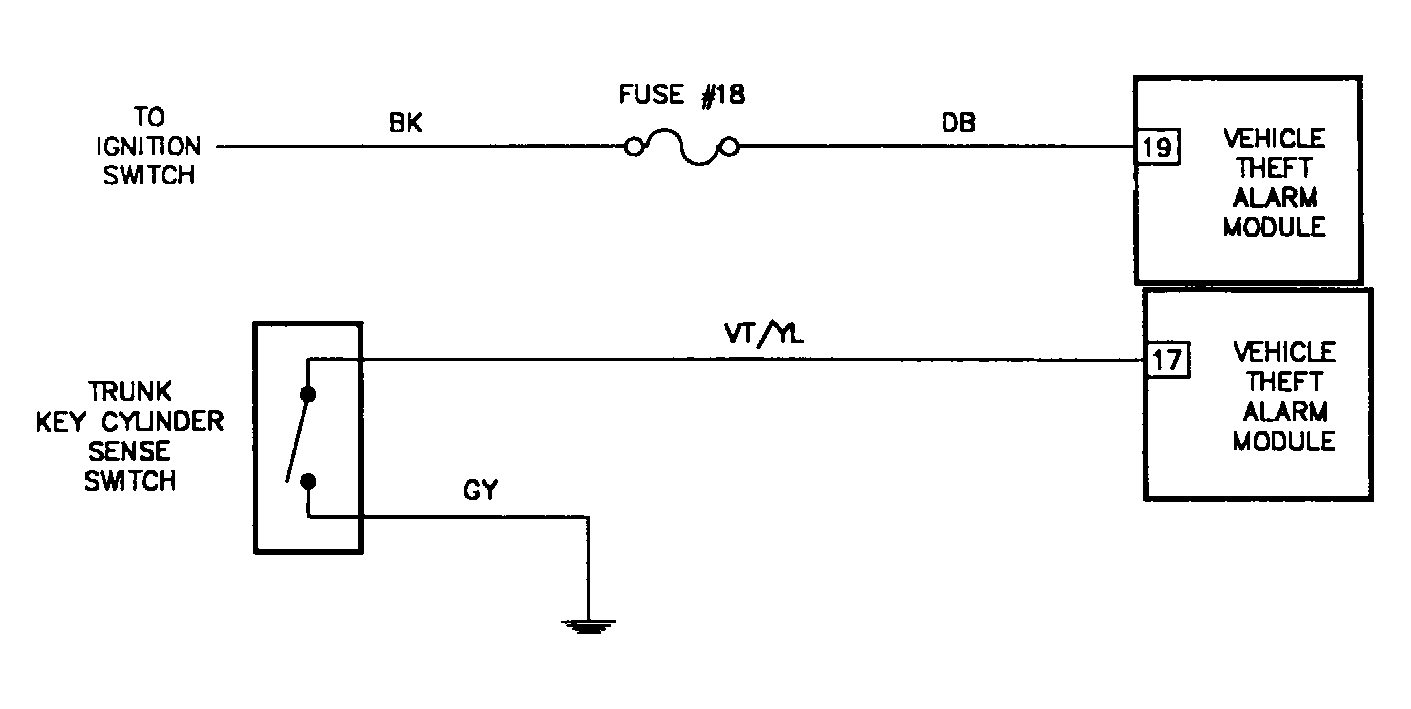

Fig 1: Test 60A: Circuit Diagram

G90D17239

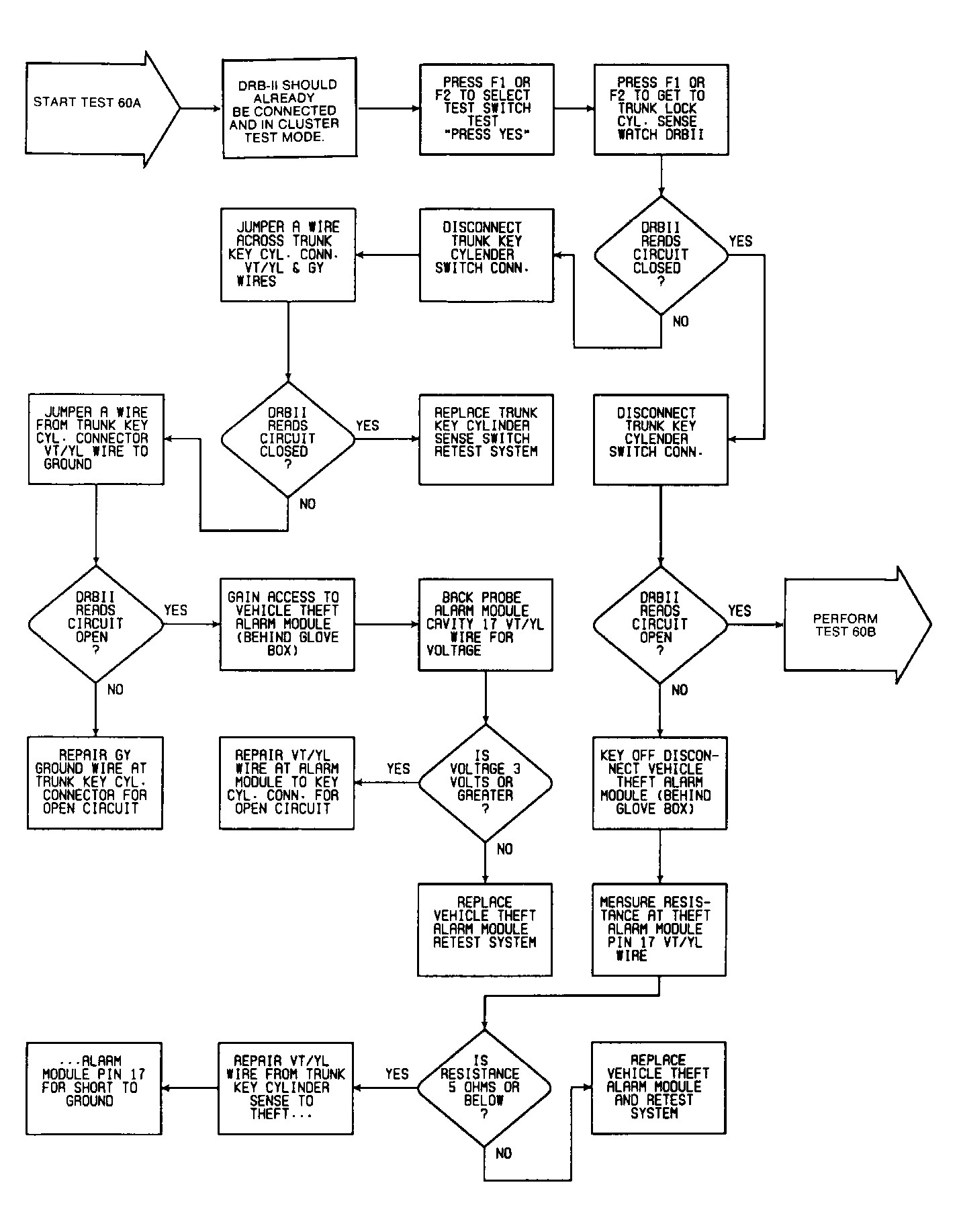

Fig 2: Test 60A: Flow Chart

G90G12324
