Test 58: Theft Alarm Indicator Light

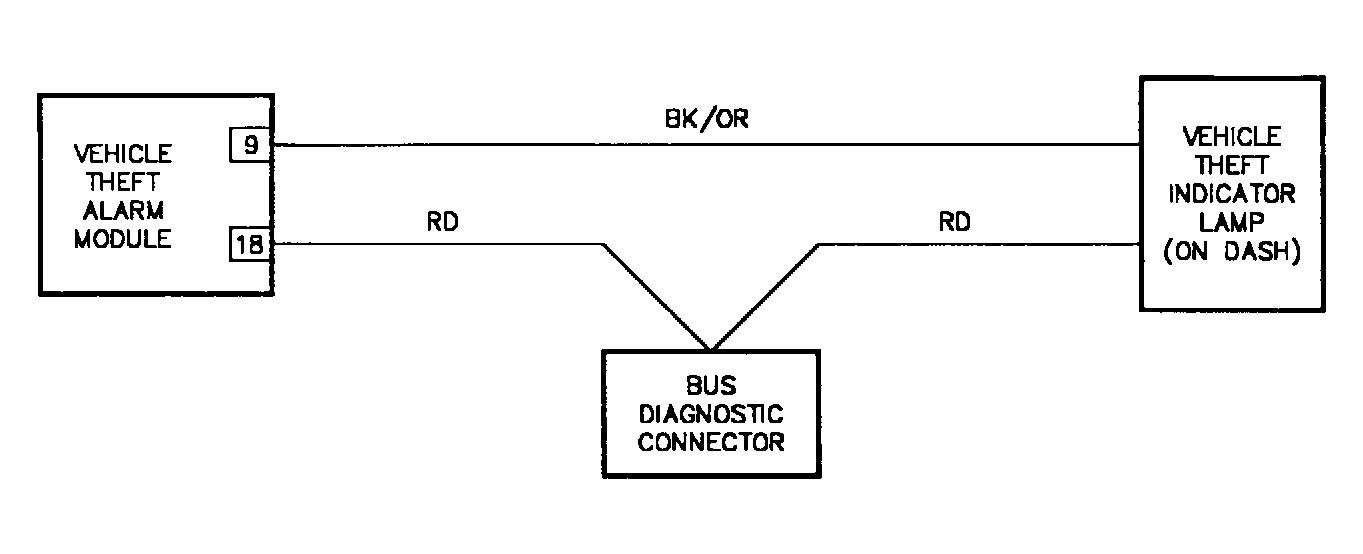

Fig 1: Test 58: Circuit Diagram

G90C17238

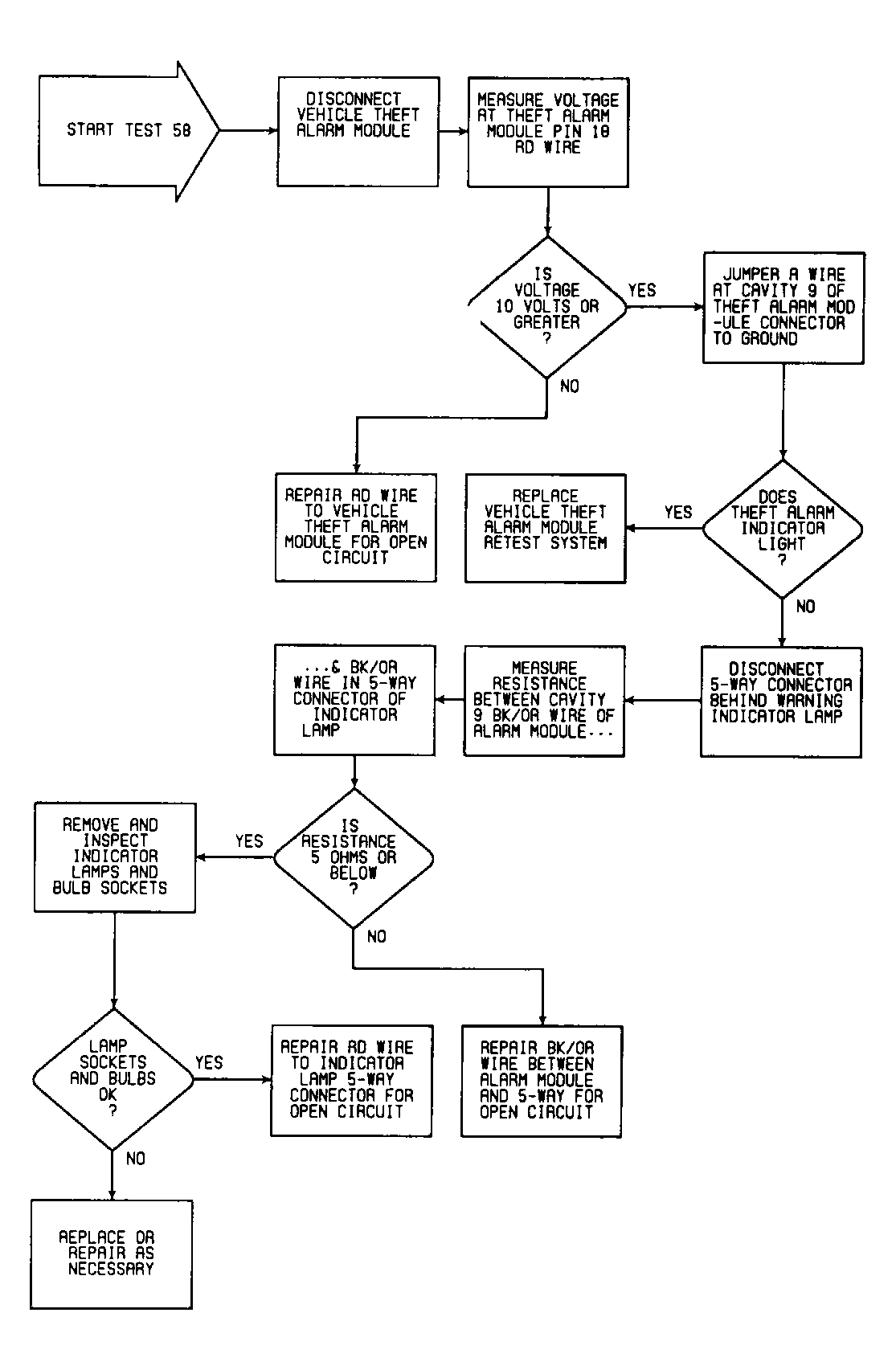

Fig 2: Test 58: Flow Chart

G90E12322
