Test 31: Washer Fluid Low

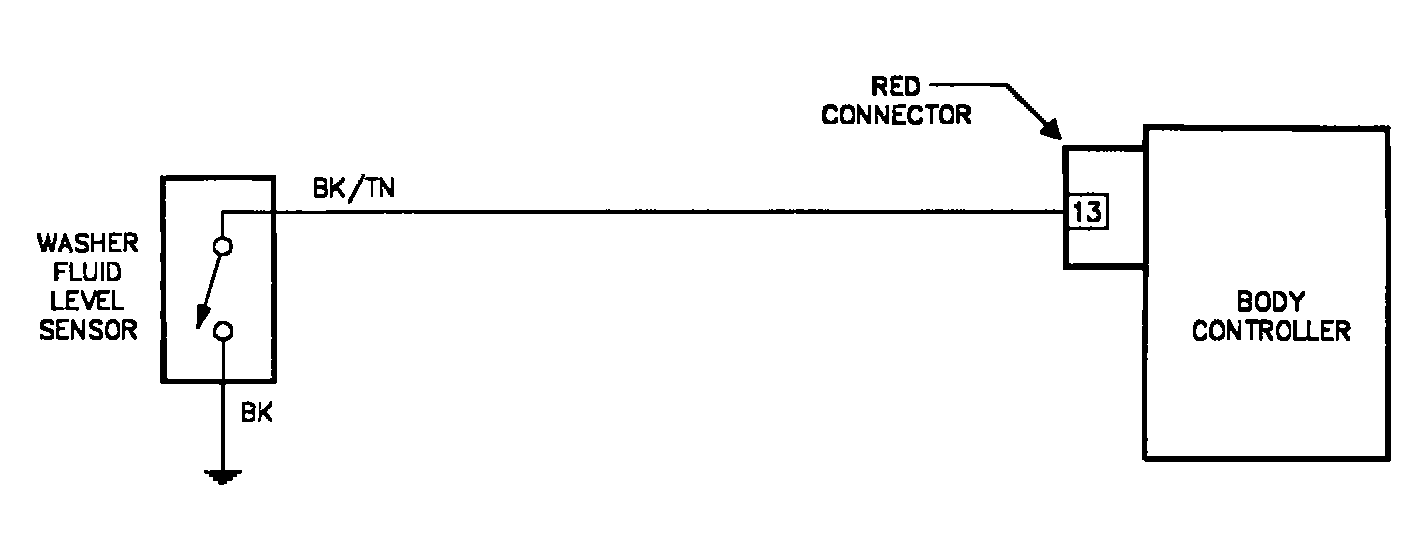

Fig 1: Test 31: Circuit Diagram

G90H17217

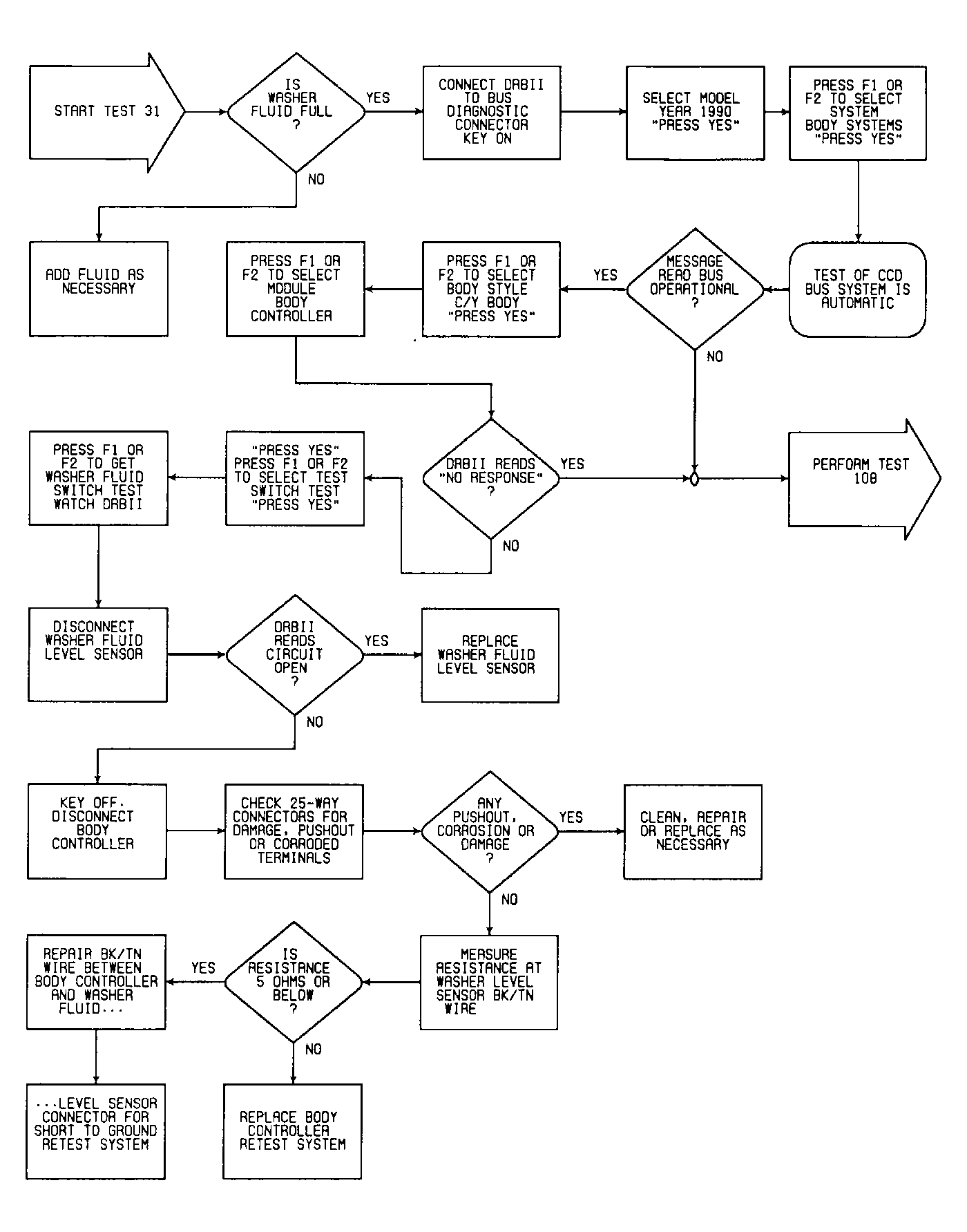

Fig 2: Test 31: Flow Chart

G90D12271
