Test 20: Low Oil Pressure

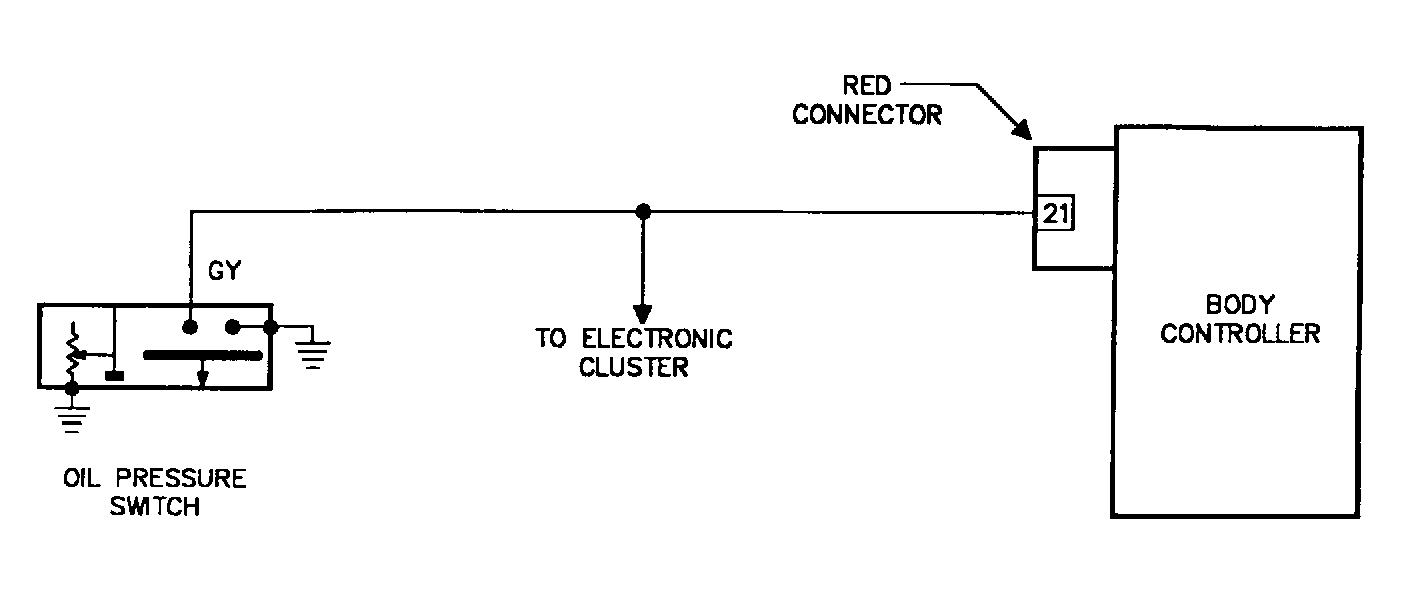

Fig 1: Test 20: Circuit Diagram

G90H17209

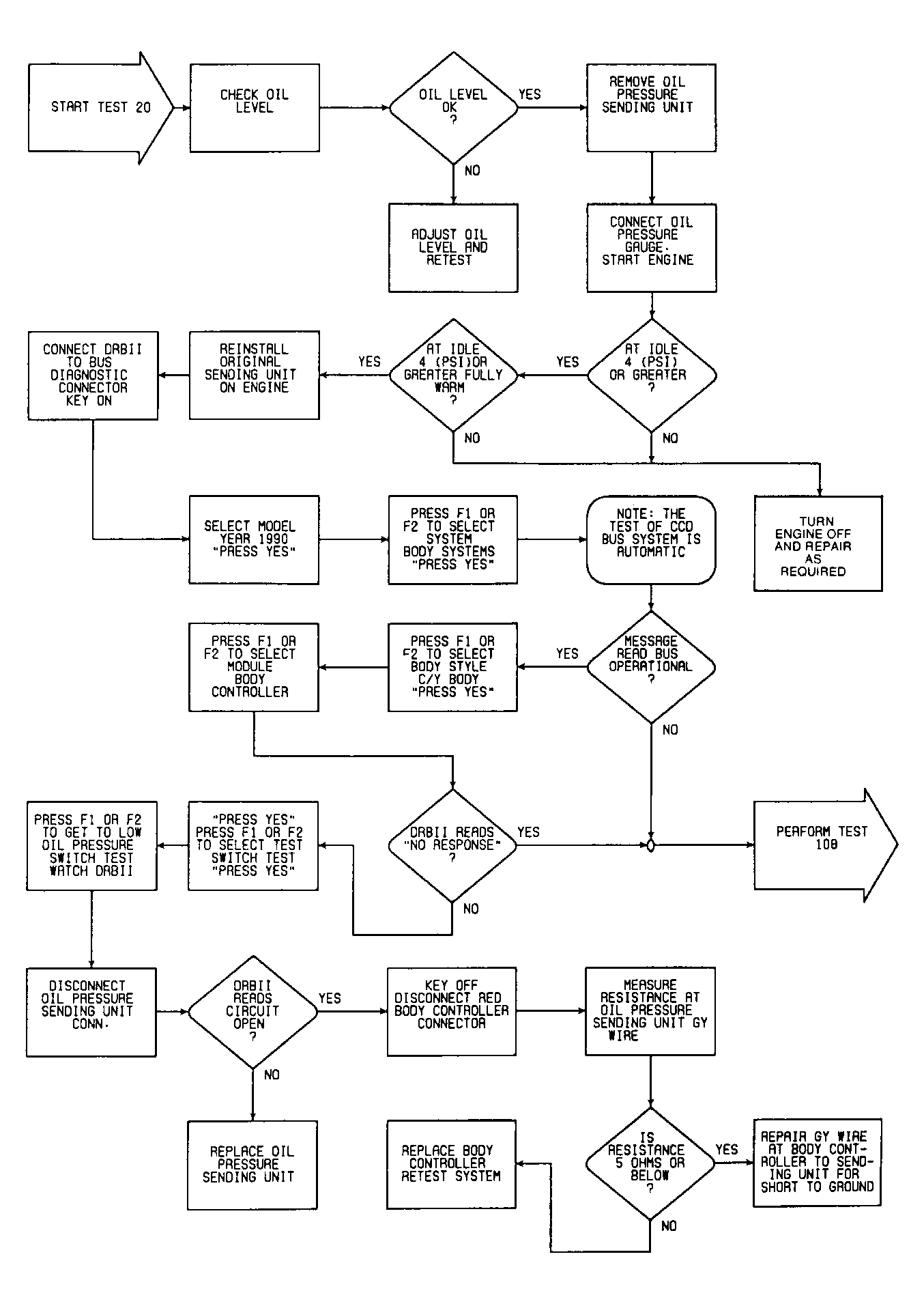

Fig 2: Test 20: Flow Chart

G90A12260
