Test 1: Id Vehicle Equip & SYS Problems

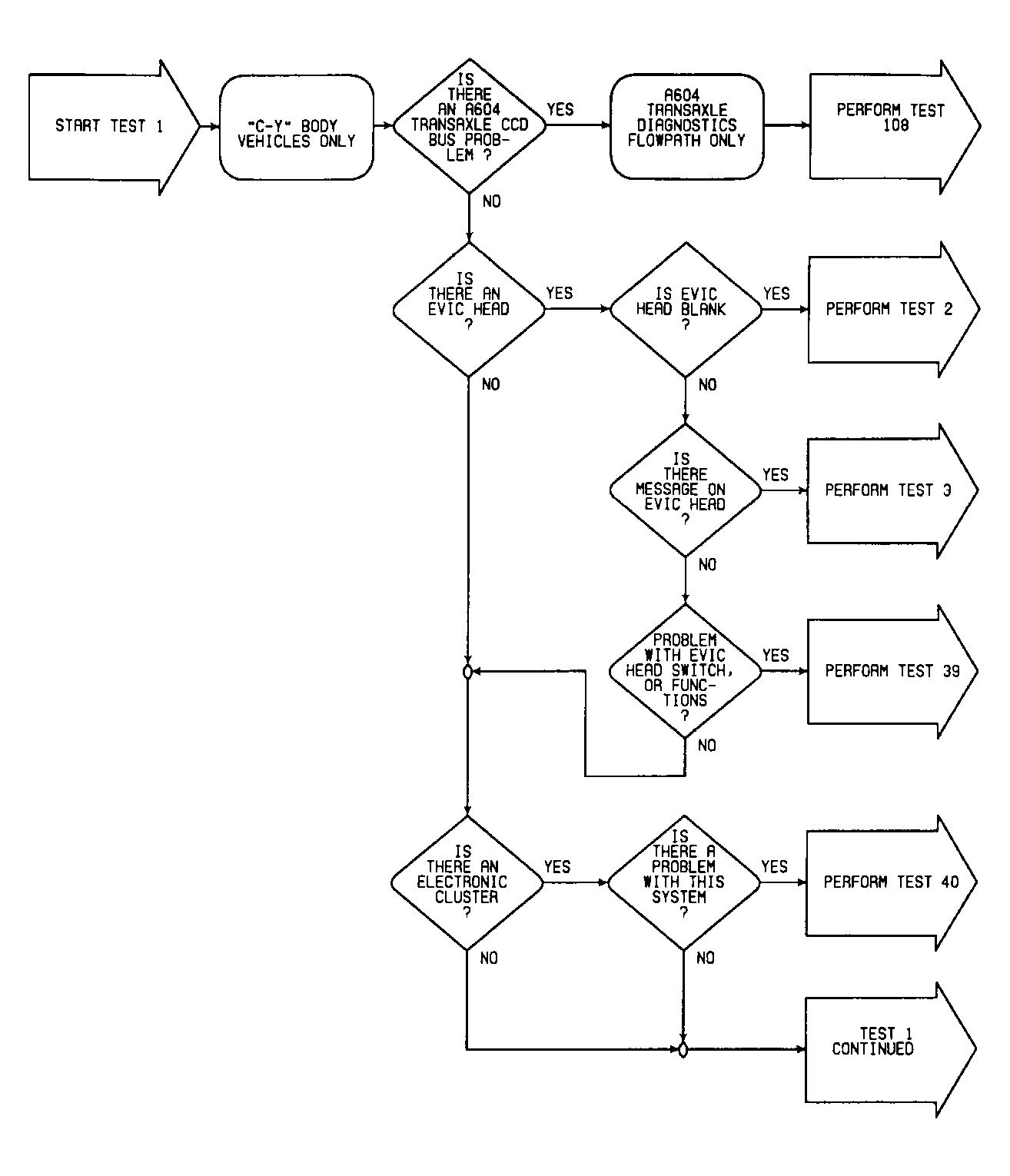

Fig 1: Test 1: Flow Chart (1 of 3)

G90G12233

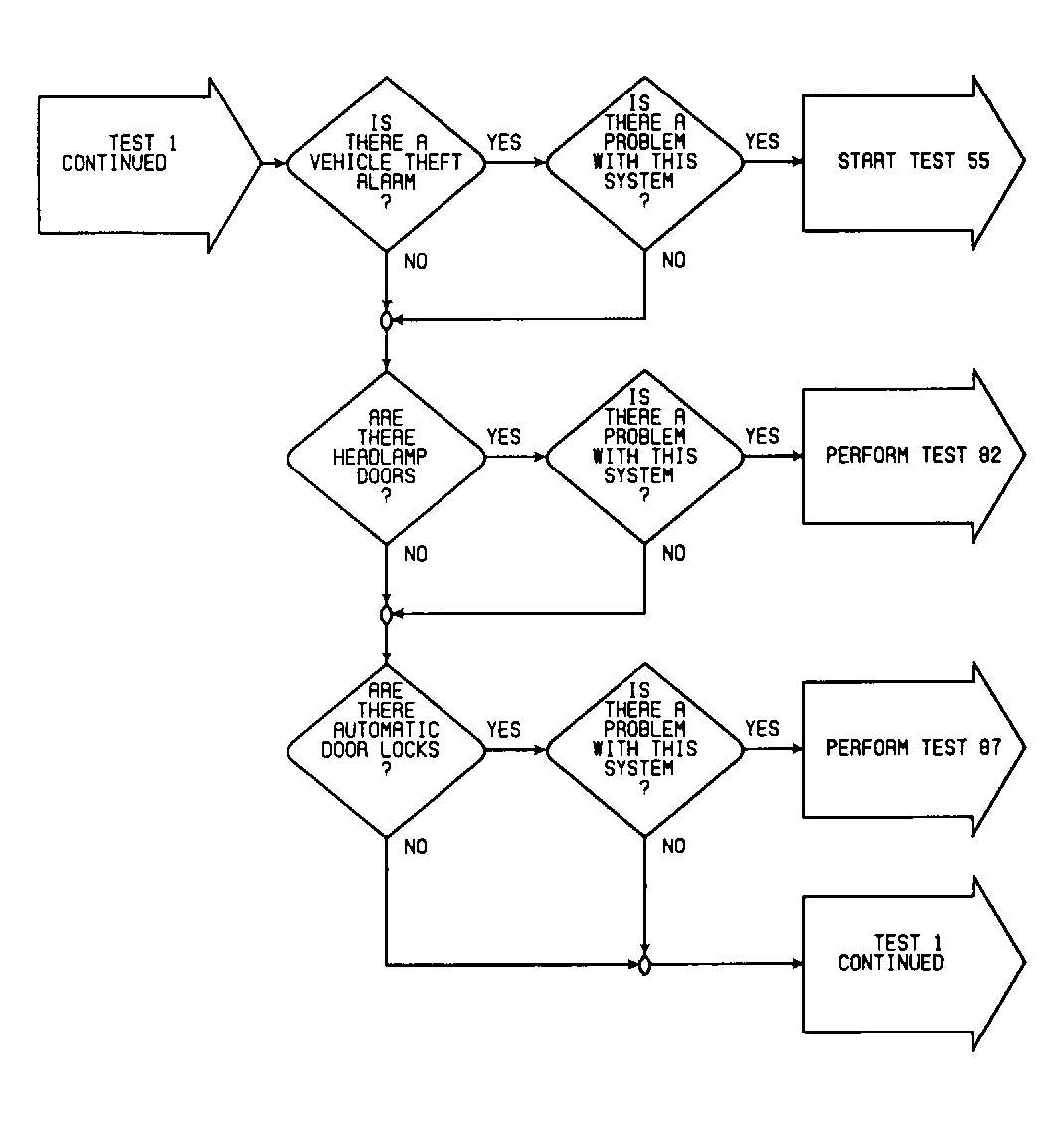

Fig 2: Test 1: Flow Chart (2 of 3)

G90H12234

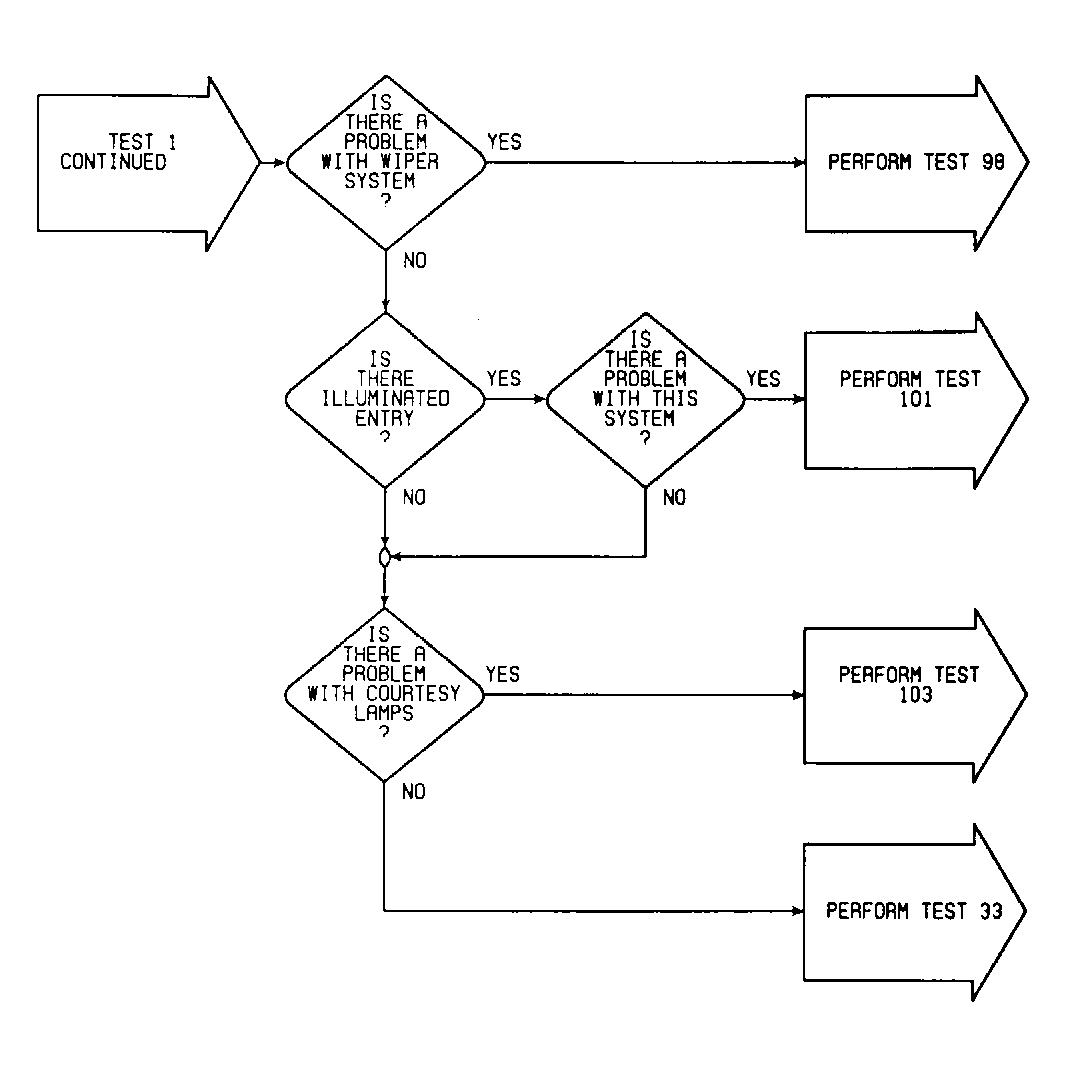

Fig 3: Test 1: Flow Chart (3 of 3)

G90I12235
