Ch-1 - Checking Charging System For Fault Messages

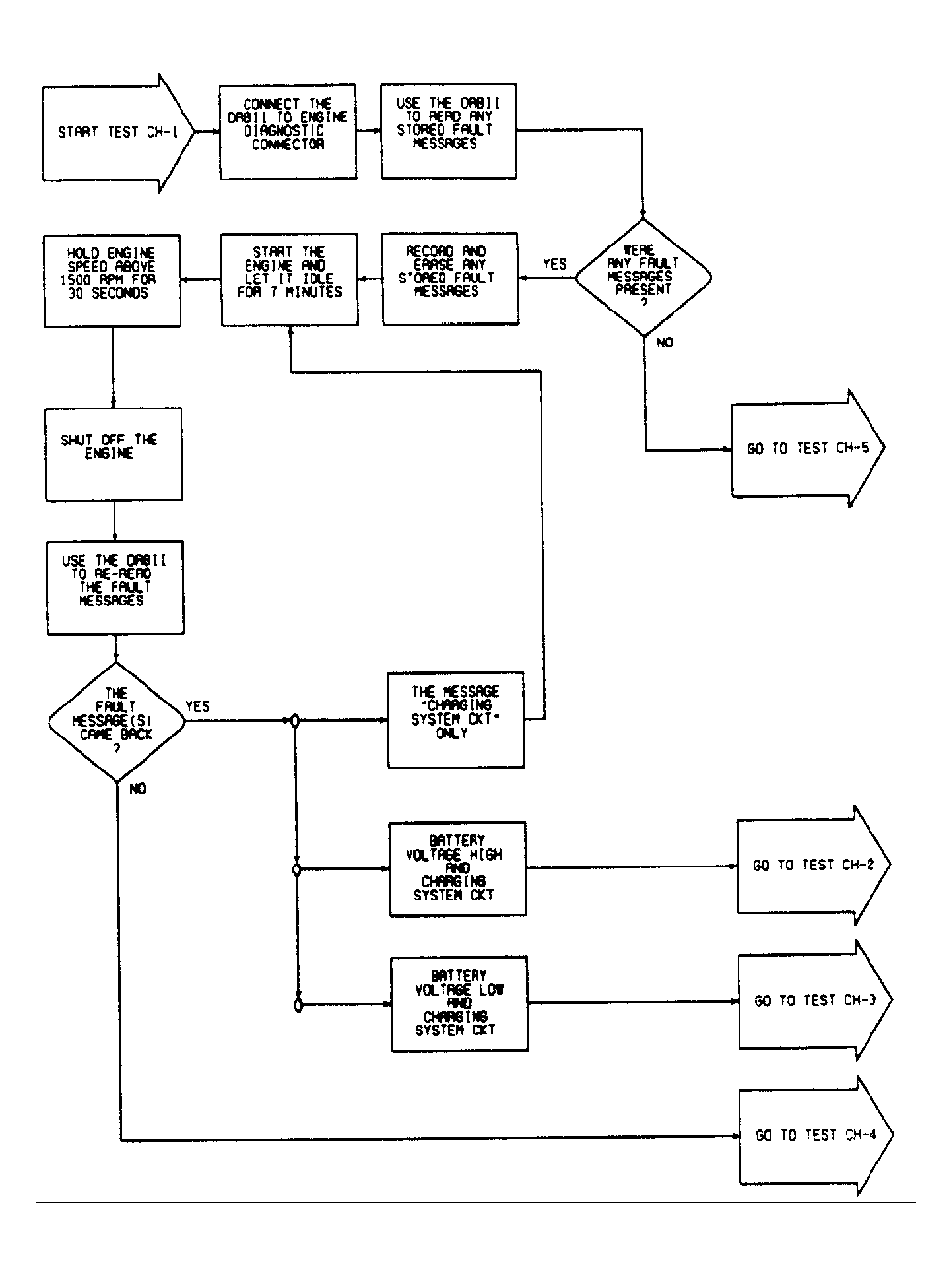

Fig 1: CH-1 - Checking Charging System For Fault Messages

G107608
