Master Cylinder: Disassembly

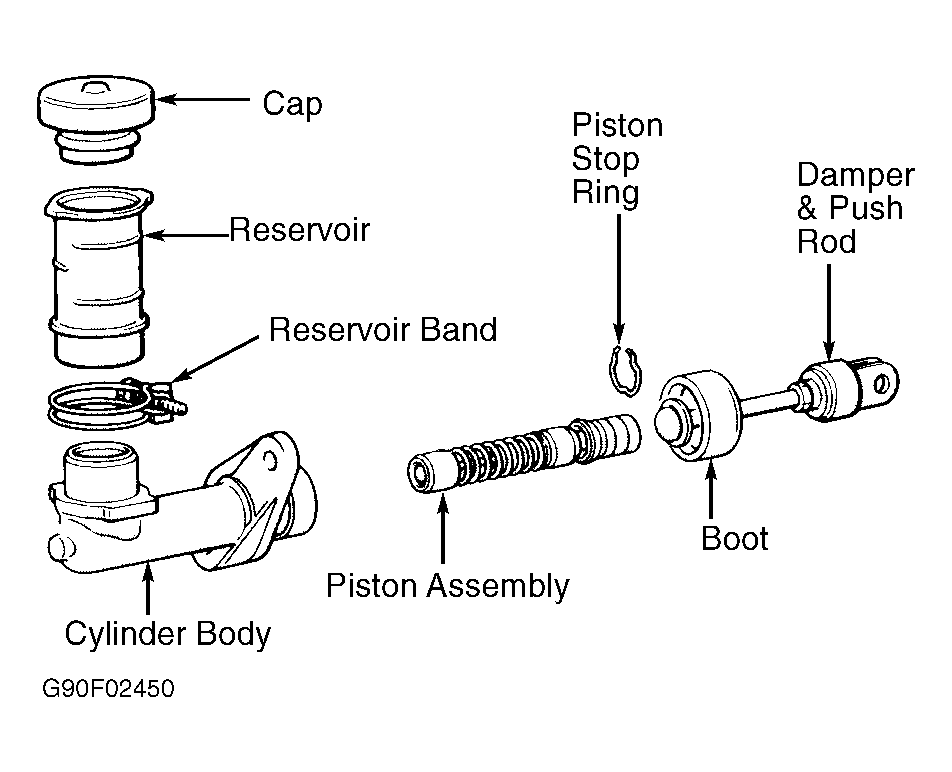

Remove piston stop ring, damper and push rod assembly. Remove piston assembly. Note position of reservoir band for reassembly reference and remove reservoir. See Figure .
