Starter Controls: Notes

NOTE: Test solenoid and relay in order as described. Before performing any test, disconnect coil wire from distributor cap and secure to a good ground to prevent engine from starting.

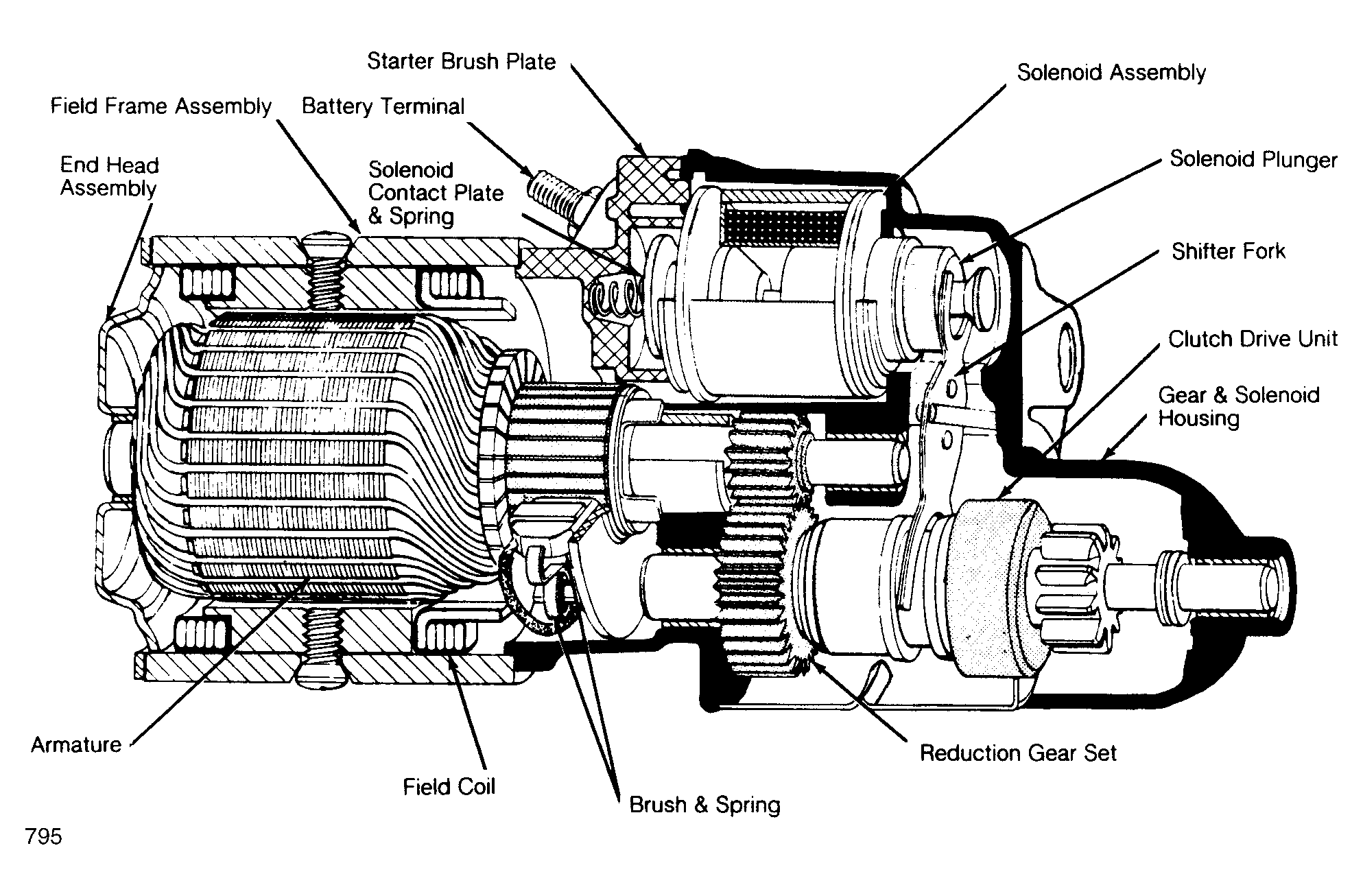

Fig 1: Sectional View of Starter Motor
G795
