Heater Cables: Notes

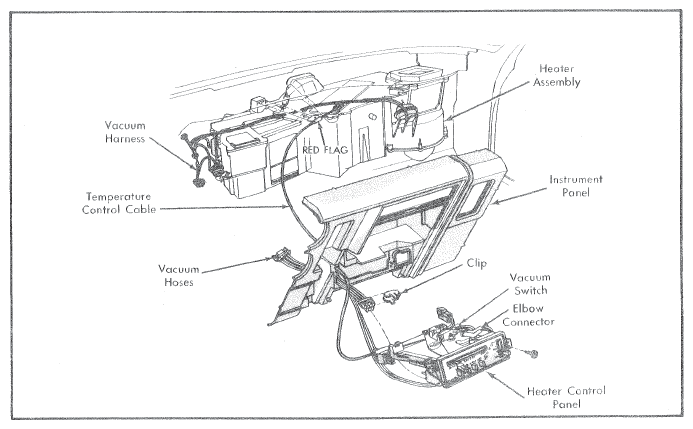

Temperature and mode control cables are attached to the heater control by color coded, "T" shaped snap-in flags. A red flag is used for temperature cable and a yellow flag (larger than red flag) for mode control. Control cables attach to the heater assembly by means of a ribbed, snap-in flag. Rib provides installation orientation and retention. Flag may be removed only after tab has been depressed into receiver.
