Vacuum & Wiring Diagrams

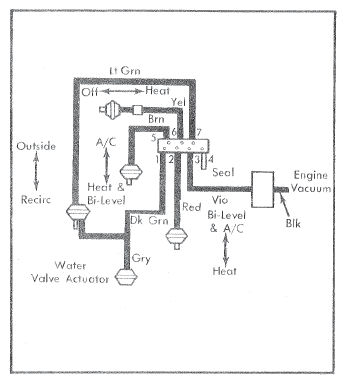

Fig 1: Chrysler Corp. SATC System Vacuum Diagram
G09361736Courtesy of CHRYSLER GROUP, LLC

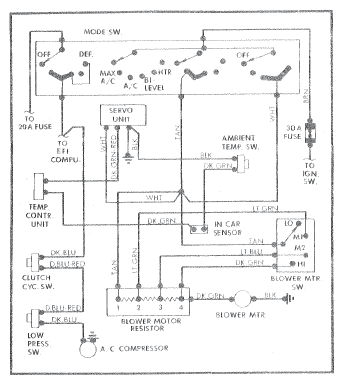

Fig 2: Chrysler Corp. SATC System Wiring Diagram (Gran Fury, New Yorker and Diplomat)
G09361737Courtesy of CHRYSLER GROUP, LLC
