Oil Pump: Installation
Prime the pump by filling rotor cavity with oil while rotating pump shaft. Place pump on engine and install retaining bolts and tighten.

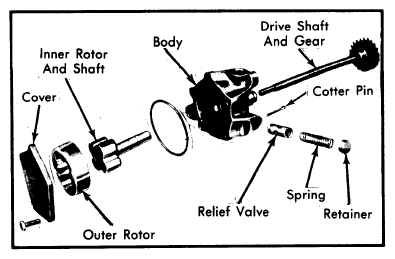

OIL PUMP SPECIFICATIONS
| Application | Measurement In. (mm) |
|---|---|
| Oil Pump Cover Wear | .0015 (.003) |
| Outer Rotor Thickness | 825 (20.95) |
| Outer Rotor Diameter | 2.469 (62.71) |
| Inner Rotor Thickness | 825 (20.95) |
| Clearance Over Outer Rotor | .004 (.10) |
| Clearance Over Inner Rotor | .004 (.10) |
| Outer Rotor Clearance | .014 (.35) |
| Tip Clearance Between Rotors | .010 (.25) |
