Propeller Shaft Alignment: Adjustment: Front

To reduce high readings, place shims between extension housing of transmission and rear engine mount. Each 1/8" shim will reduce angle 1/4°. If angle reads low or negative, no correction is required.

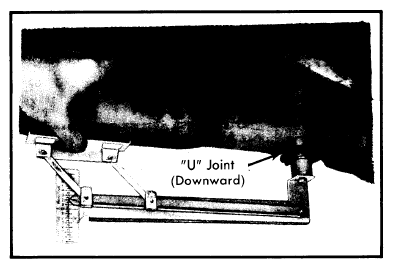

Fig 1: Measuring Rear Universal Joint Angle Using Pinion Angle Gauge (Inclinometer)

Courtesy of CHRYSLER GROUP, LLC
