Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

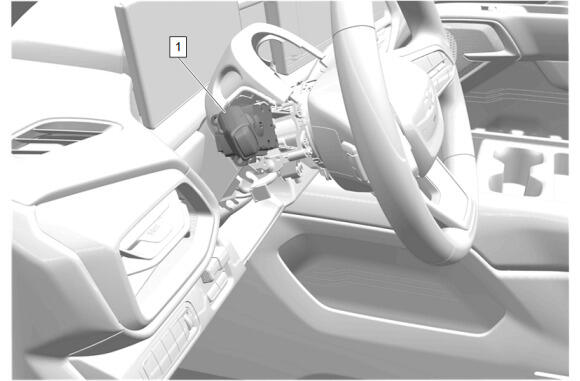

Turn Signal Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

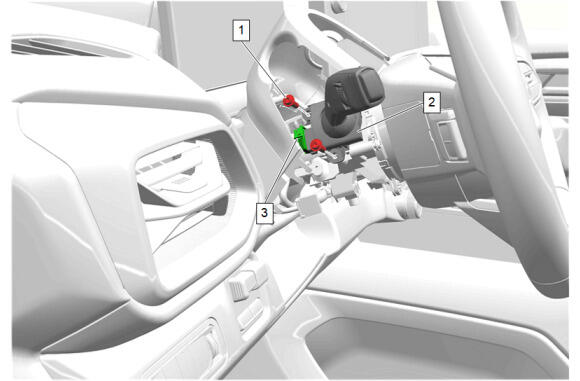

Turn Signal Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector. (3)
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Instrument Panel Steering Column Lower Trim Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel approximately 90 degrees to the right of the centered position.
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel approximately 90 degrees to the left of the centered position.
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Turn the steering wheel to the centered position.
Courtesy of GENERAL MOTORS COMPANY

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
Return the steering column to its original position.
