Fastener Specifications
Seat Heating and Cooling (KA1 / KU9)

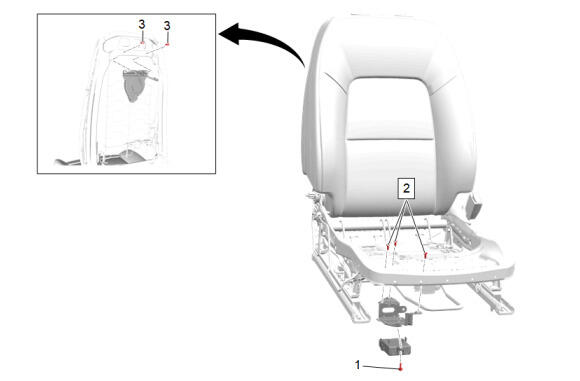

| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Heater Control Module Bolt | - | - | 2.5 N.m (22 lb in) | Front Seat Heater Vent Control Module Replacement (KA1 / KU9) |
| 2 | Front Seat Heater Control Module Bracket Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Front Seat Heater Control Module Bracket Replacement (KA1) |
| 3 | Front Seat Vent Fan Control Module Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Seat Back Ventilation Blower Replacement (KU9) |
