Installation Procedure

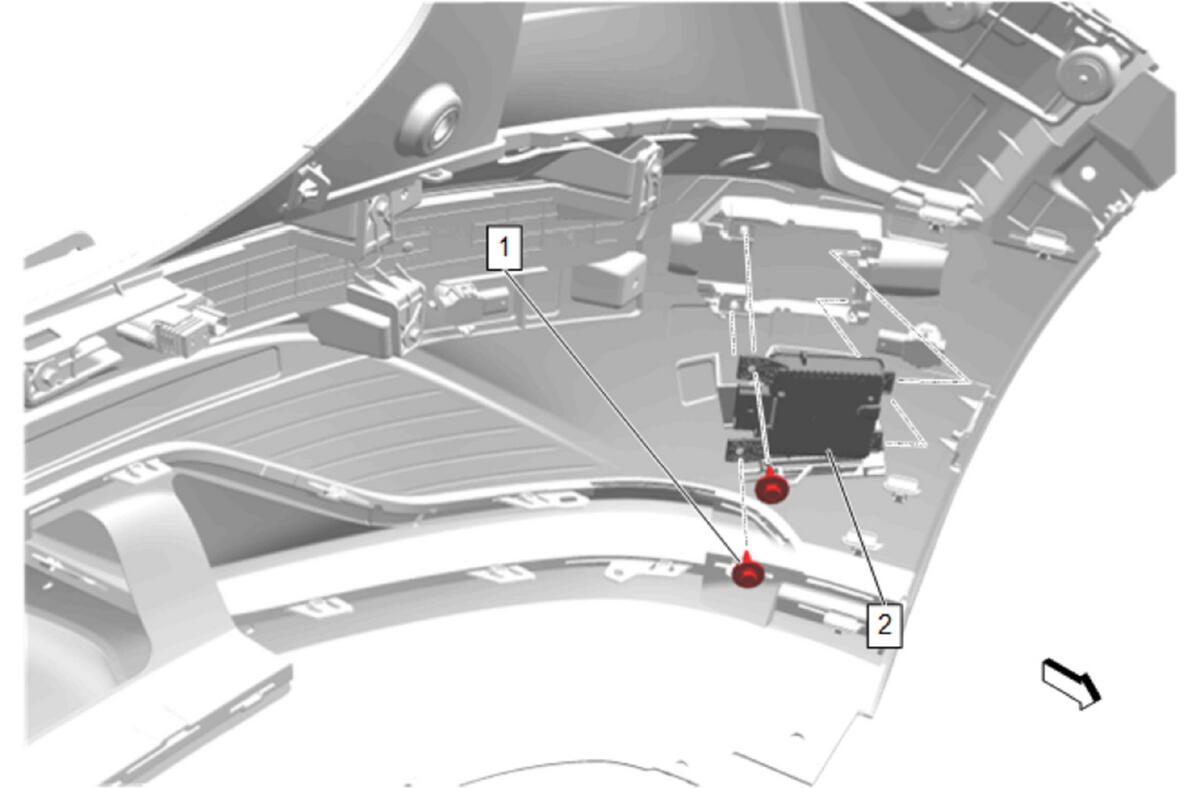

  1. GM6494497Courtesy of GENERAL MOTORS COMPANY

    Ensure the retaining tabs are properly aligned.

  2. Side Obstacle Detection Control Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rear Bumper Fascia Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. Connect the electrical connector.

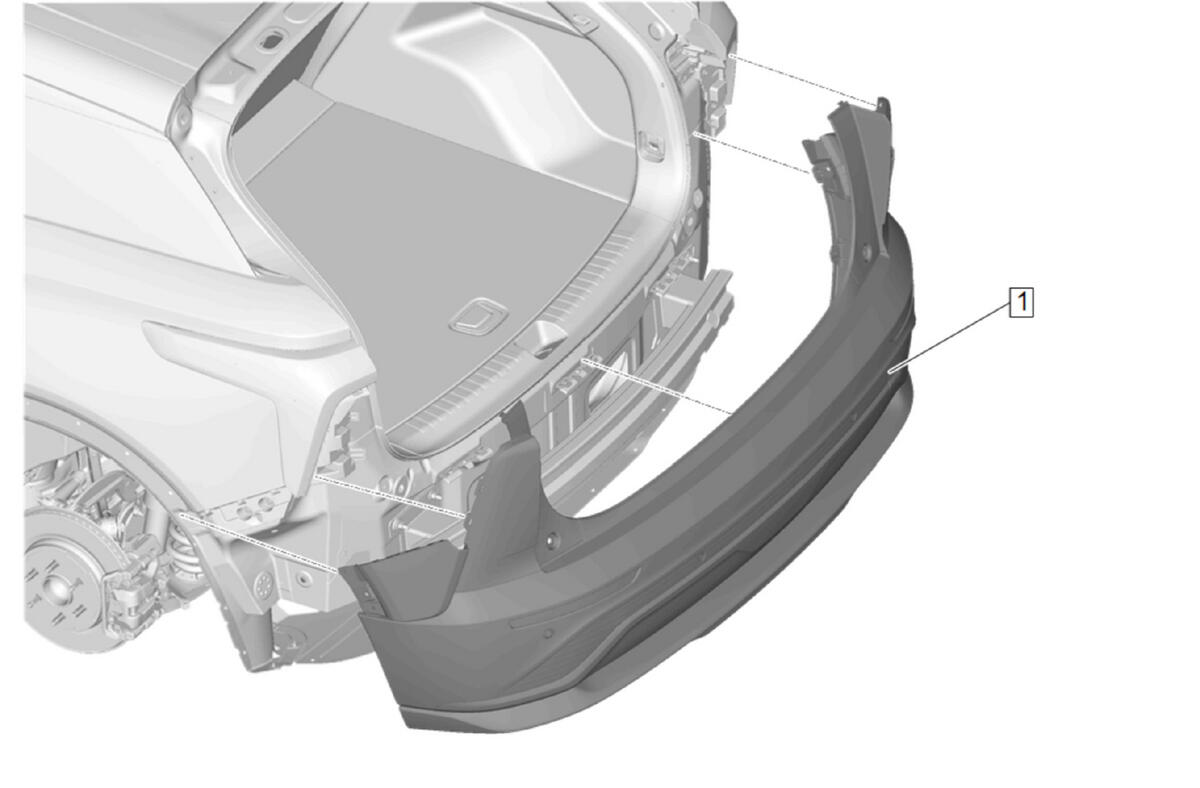

  5. GM6293480Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation

  6. Perform the necessary programming and setup procedure: Control Module References
