Installation Procedure

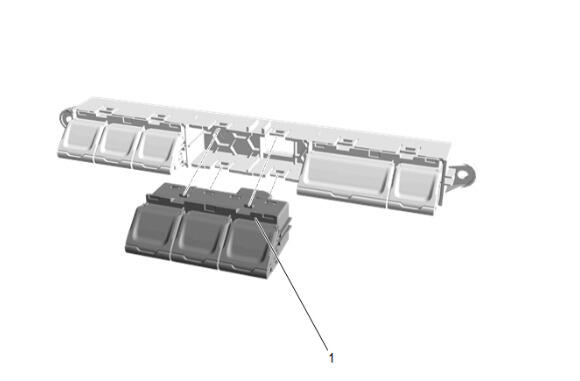

  1. GM5906310Courtesy of GENERAL MOTORS COMPANY

    Vehicle Stability Control System Switch (1) - Install

  2. Secure the retaining tabs.

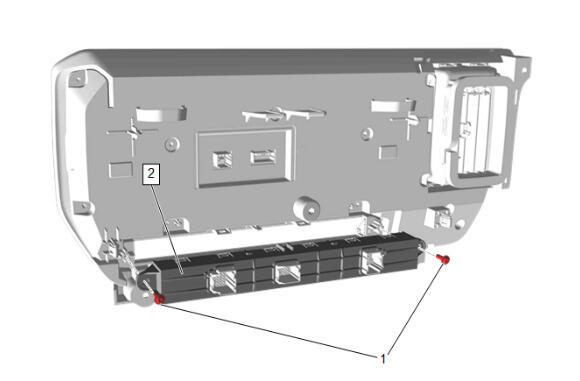

  3. GM5905918Courtesy of GENERAL MOTORS COMPANY

    Hazard Warning Switch Housing (2) - Install

  4. Secure the retaining tabs.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Hazard Warning Switch Housing Bolt (1) - Install and tighten [2x] - Fastener Specifications

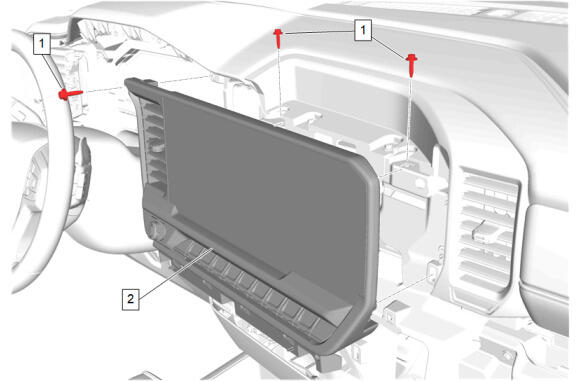

  6. GM5902318Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Radio Control (2) - Install
  8. Radio Control Bolt (1) - Install and tighten [3x] - Fastener Specifications

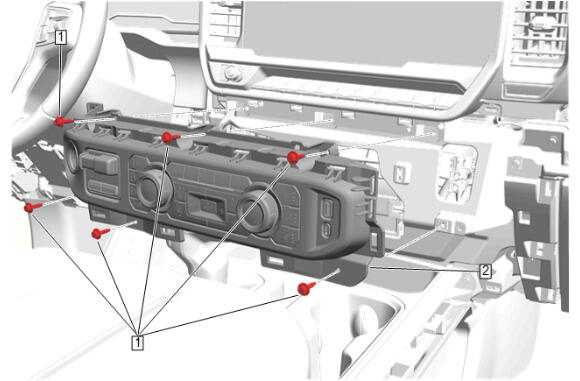

  9. GM5903312Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  10. Instrument Panel Accessory Bezel (2) - Install
  11. Instrument Panel Accessory Bezel Bolt (1) - Install and tighten [6x] - Fastener Specifications

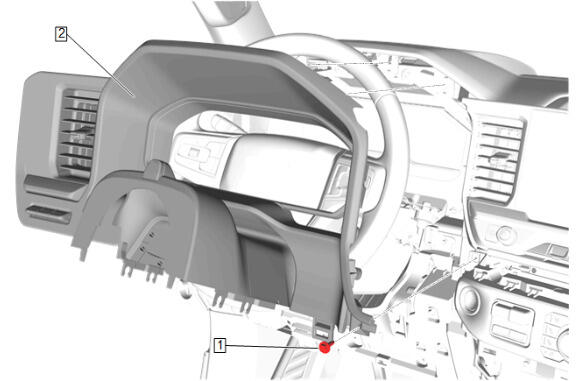

  12. GM5903427Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Connect the electrical connector.

  13. Instrument Panel Cluster Trim Plate (2) - Install
  14. Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten - Fastener Specifications

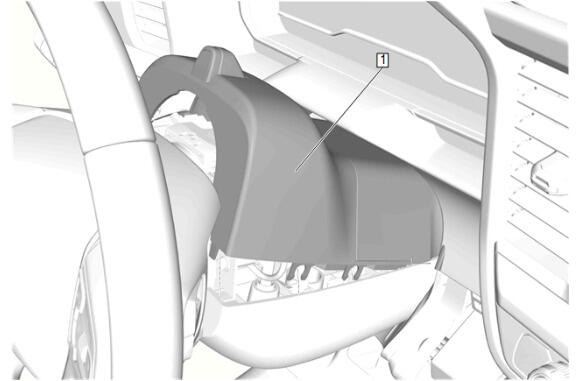

  15. GM5903426Courtesy of GENERAL MOTORS COMPANY

    If equipped with a camera, connect the electrical connector.

  16. Instrument Panel Steering Column Upper Trim Cover (1) - Install

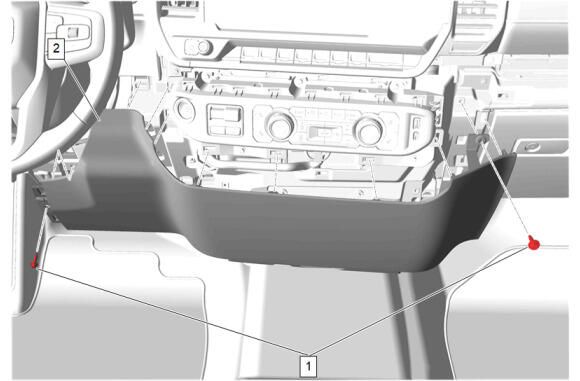

  17. GM6239930Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (2) - Install

  18. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [2x] - Fastener Specifications

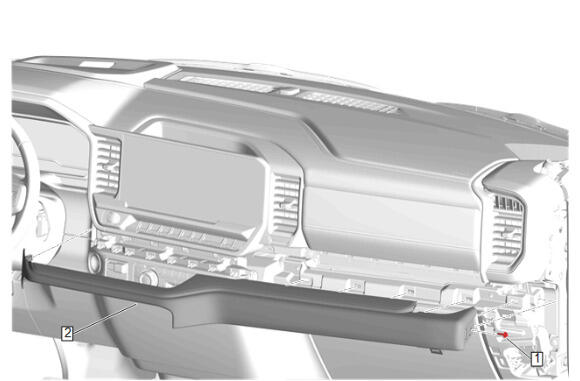

  19. GM5902526Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (2) - Install

  20. Instrument Panel Center Trim Panel Bolt (1) - Install and tighten - Fastener Specifications

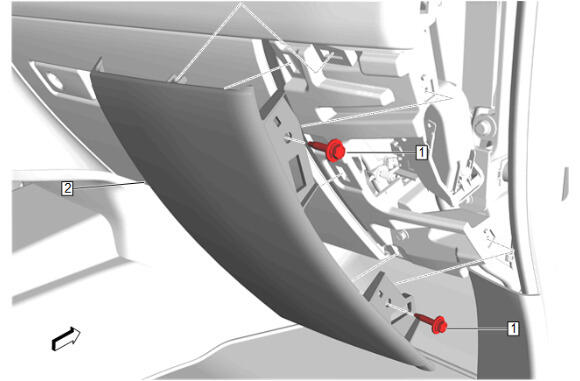

  21. GM5902525Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (2) - Install

  22. Instrument Panel Lower Trim Panel Outer Filler Bolt (1) - Install and tighten [2x] - Fastener Specifications

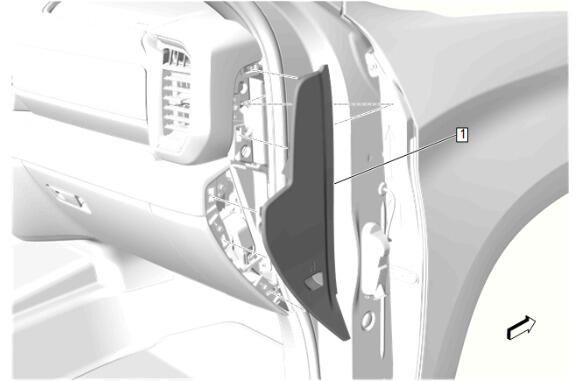

  23. GM5902523Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Line up flange around the front side door weatherstrip

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

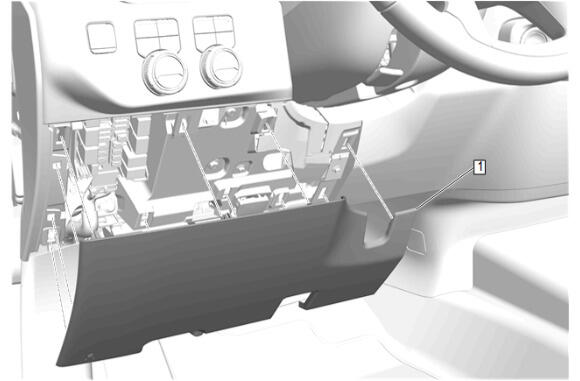

  24. GM5902090Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

    Instrument Panel Knee Bolster (1) - Install

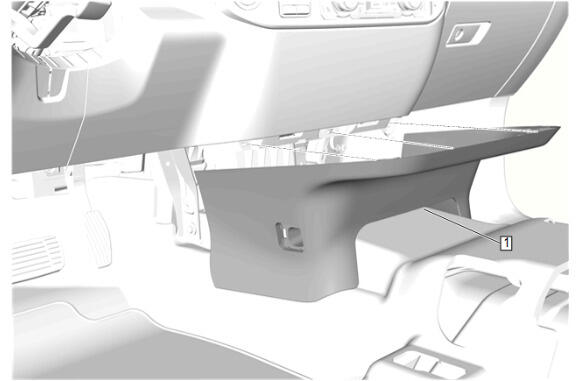

  25. GM5902205Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install

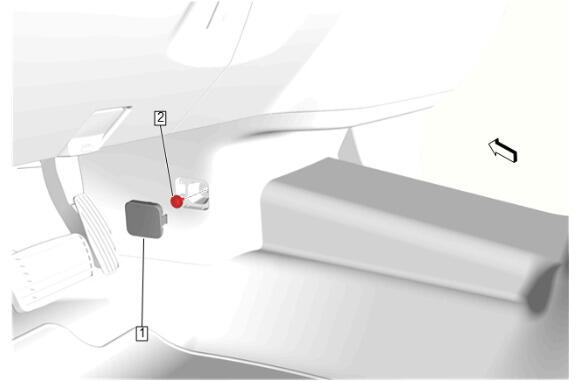

  26. GM5902204Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Bolt (2) - Install and tighten - Fastener Specifications

  27. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
