Instrument Panel Center Accessory Function Switch Replacement

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

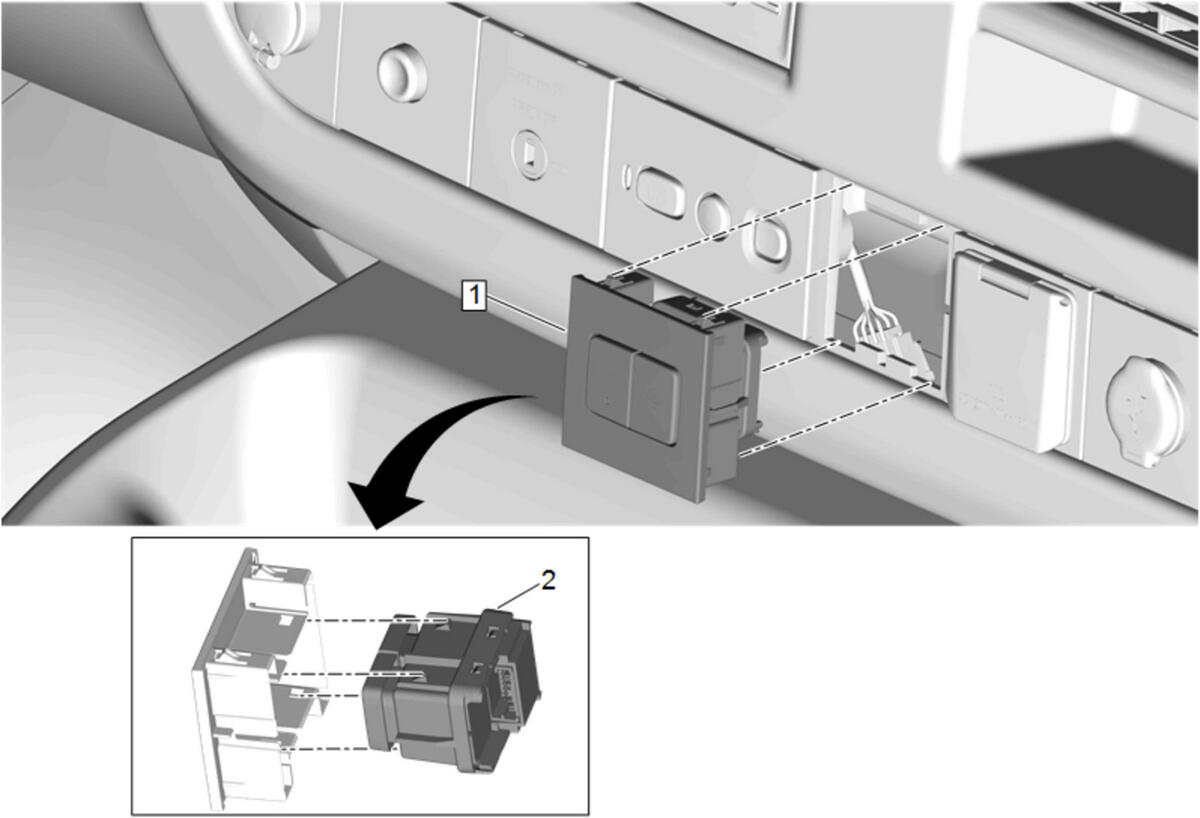

GM5064727Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Outer Trim Cover
2 Instrument Panel Center Accessory Function Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
