Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

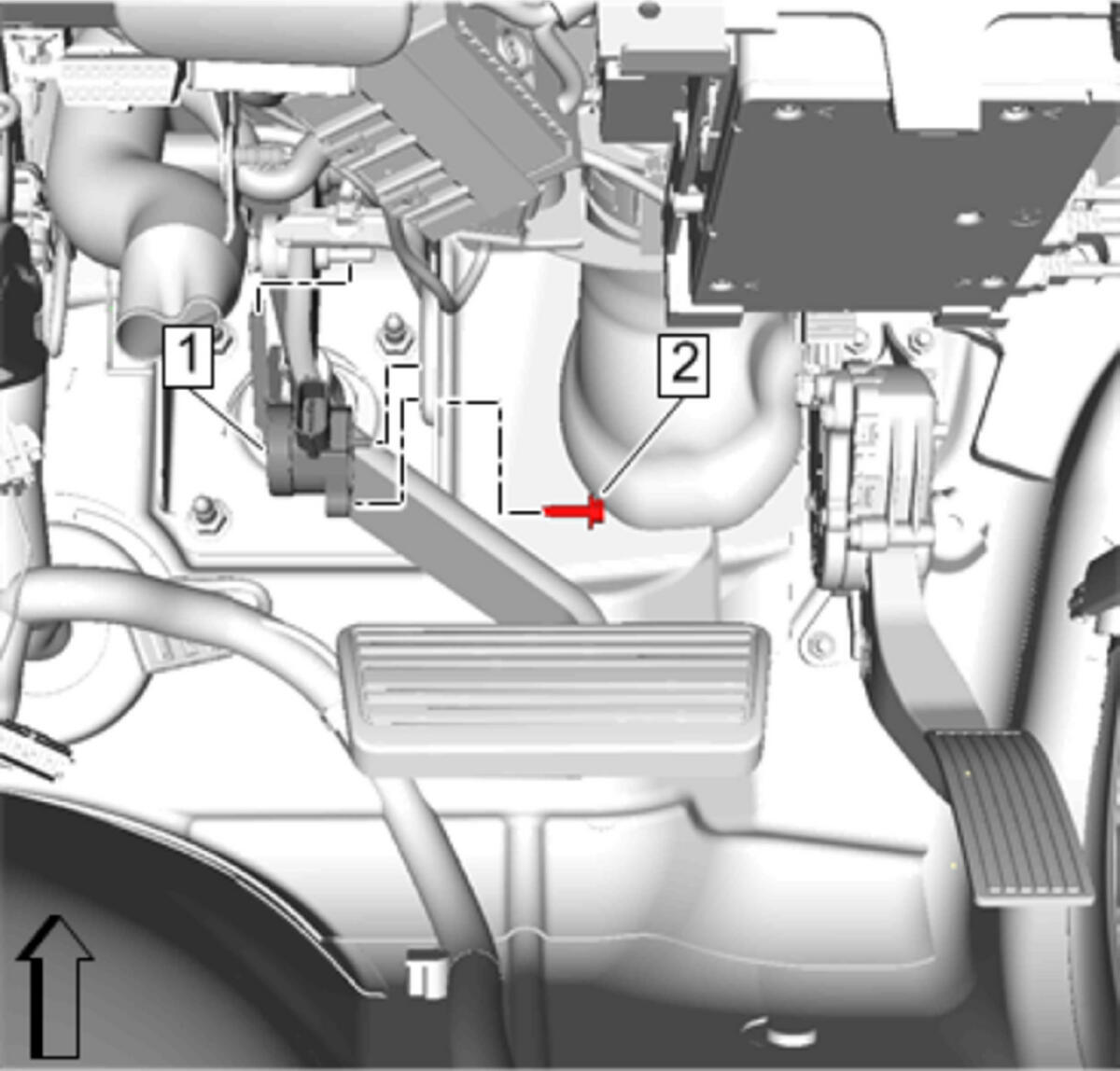

Brake Pedal Position Sensor (1) - Install
- Brake Pedal Position Sensor Bolt (2) - Install and tighten 2.5 N.m (22 lb in)
- Electrical Connector@Brake Pedal Position Sensor - Connect
- Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
- Clear All Vehicle DTCs
CAUTION:
Refer to Fastener Caution .
