Installation Procedure

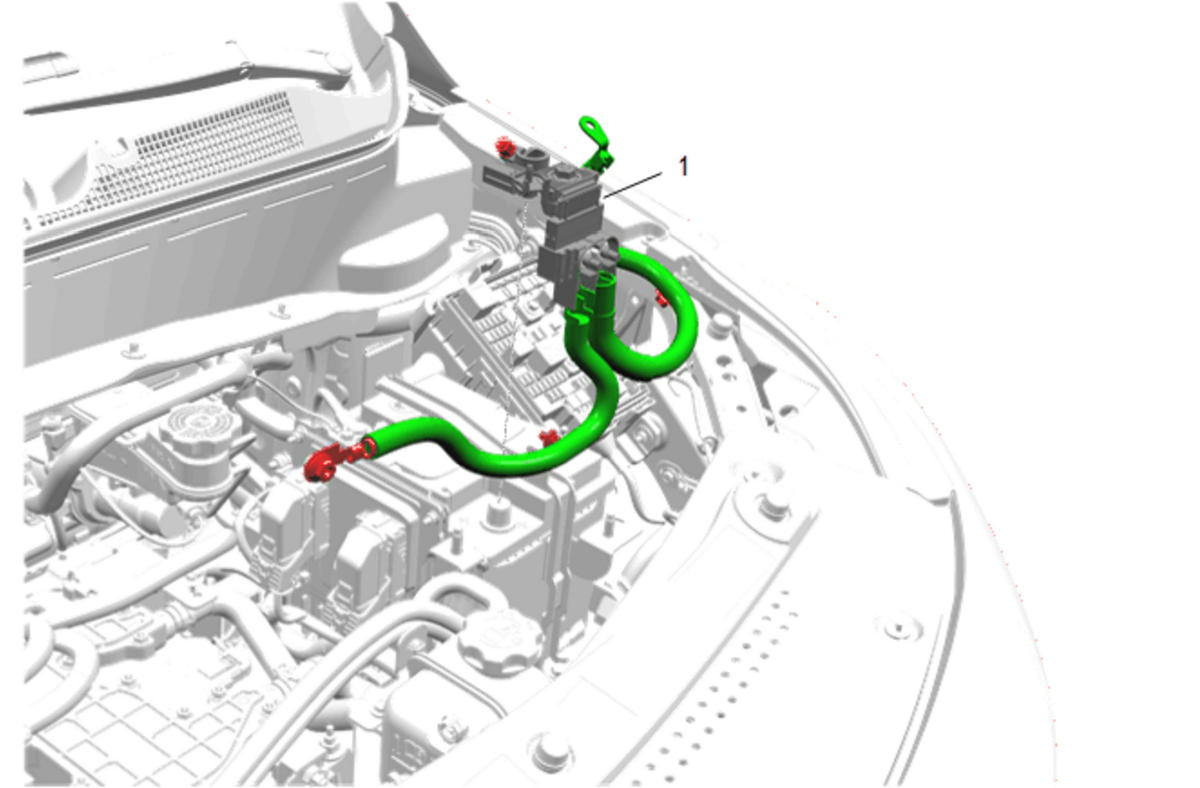

  1. GM5684843Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (1) - Install

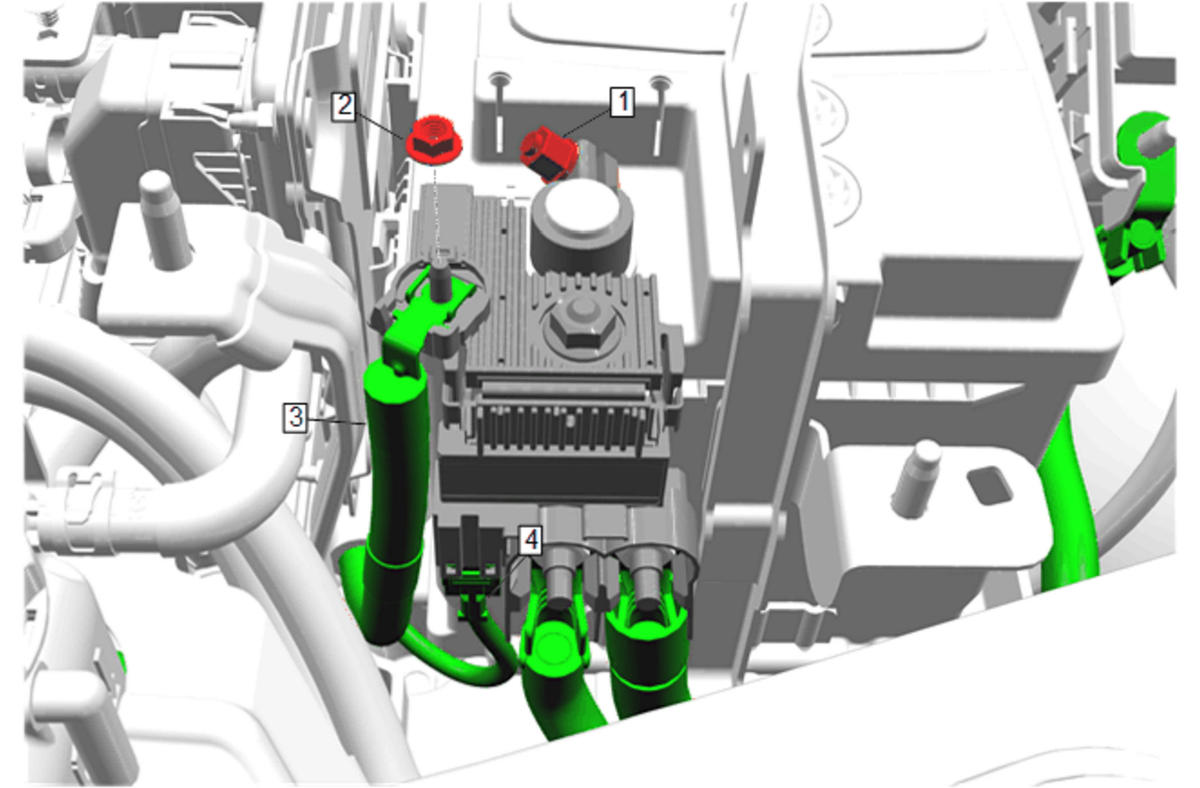

  2. GM5684842Courtesy of GENERAL MOTORS COMPANY

    Body Wiring Harness Connector (4) - Connect

  3. Body Wiring Harness (3) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Body Wiring Harness Nut (2) - Install and tighten - Battery Distribution Fuse Block Replacement
  5. Battery Positive Cable Clamp Fastener (1) - Tighten - Battery Replacement

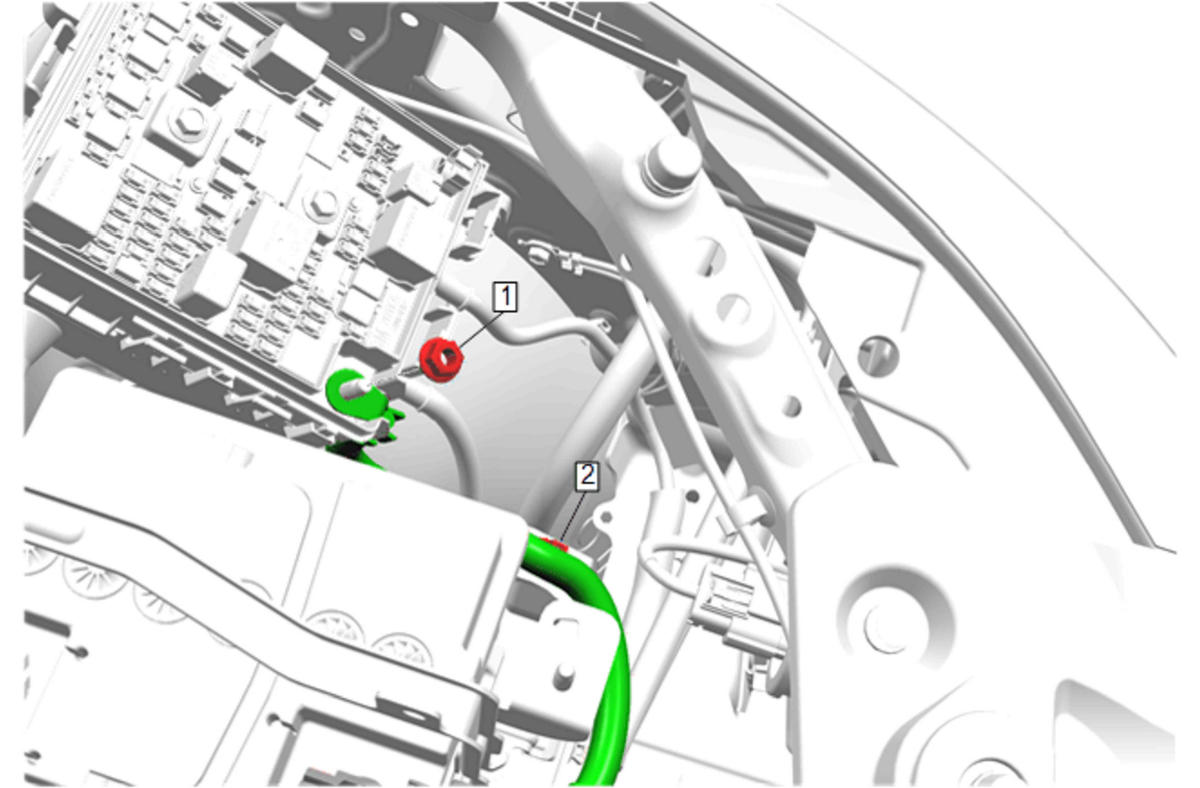

  6. GM5684841Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Retainer (2) - Install

  7. Battery Positive Cable Nut (1) - Install and tighten 22 N.m (16 lb ft)

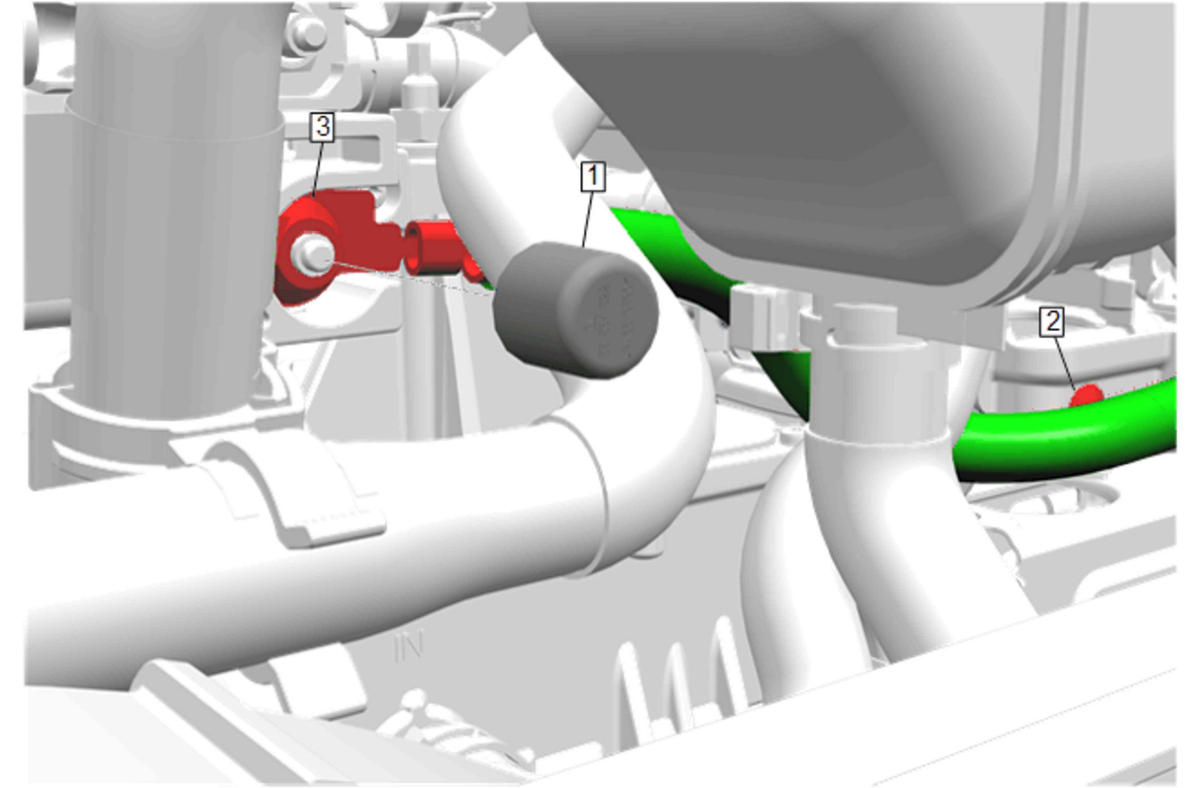

  8. GM5684840Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Retainer (2) - Install

  9. Battery Positive Cable Nut (3) - Install and tighten 15 N.m (11 lb ft)
  10. Engine Wiring Harness Connector Protector (1) - Install

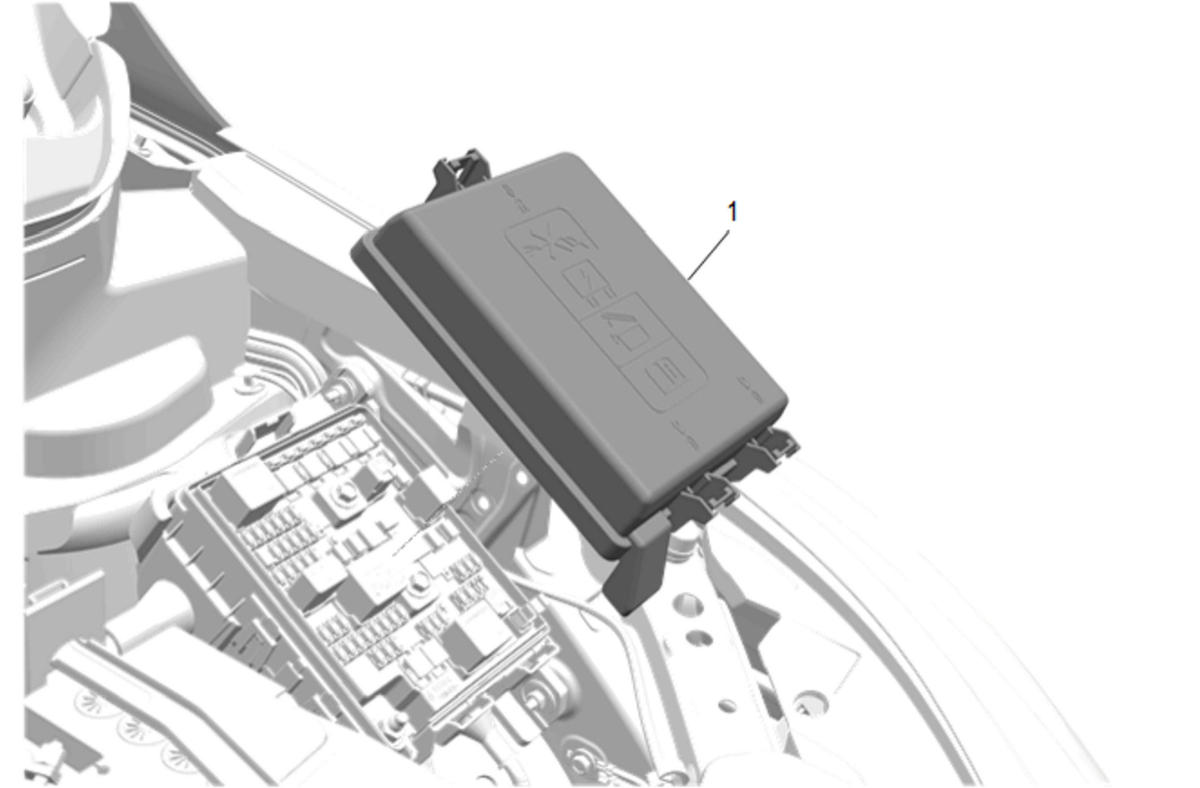

  11. GM5684839Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block Cover (1) - Install

  12. GM5682620Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Terminal Cover (1) - Install

  13. GM5512499Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Support (2) - Install

  14. Battery Tray Support Nut (1) - Install and tighten - Battery Replacement
  15. GM5512497Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Reinforcement (3) - Install

  16. Battery Tray Reinforcement Bolt (2) - Install and tighten - Battery Replacement
  17. Battery Tray Reinforcement Nut (1) - Install and tighten - Battery Replacement
  18. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .
