Installation Procedure

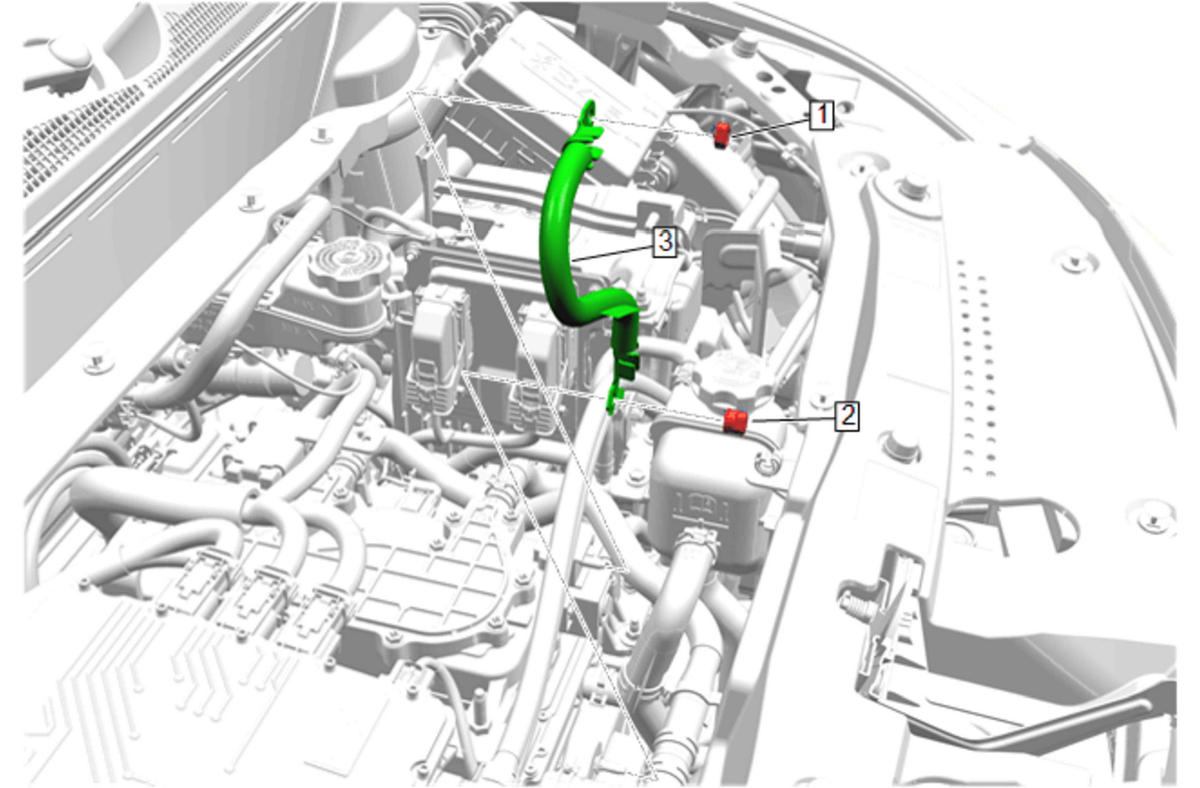

  1. GM5682831Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Extension Cable (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Battery Negative Cable Extension Cable Nut (2) - Install and tighten 22 N.m (16 lb ft)
  3. Battery Negative Cable Extension Cable Nut (1) - Install and tighten 15 N.m (11 lb ft)
  4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
