Installation Procedure

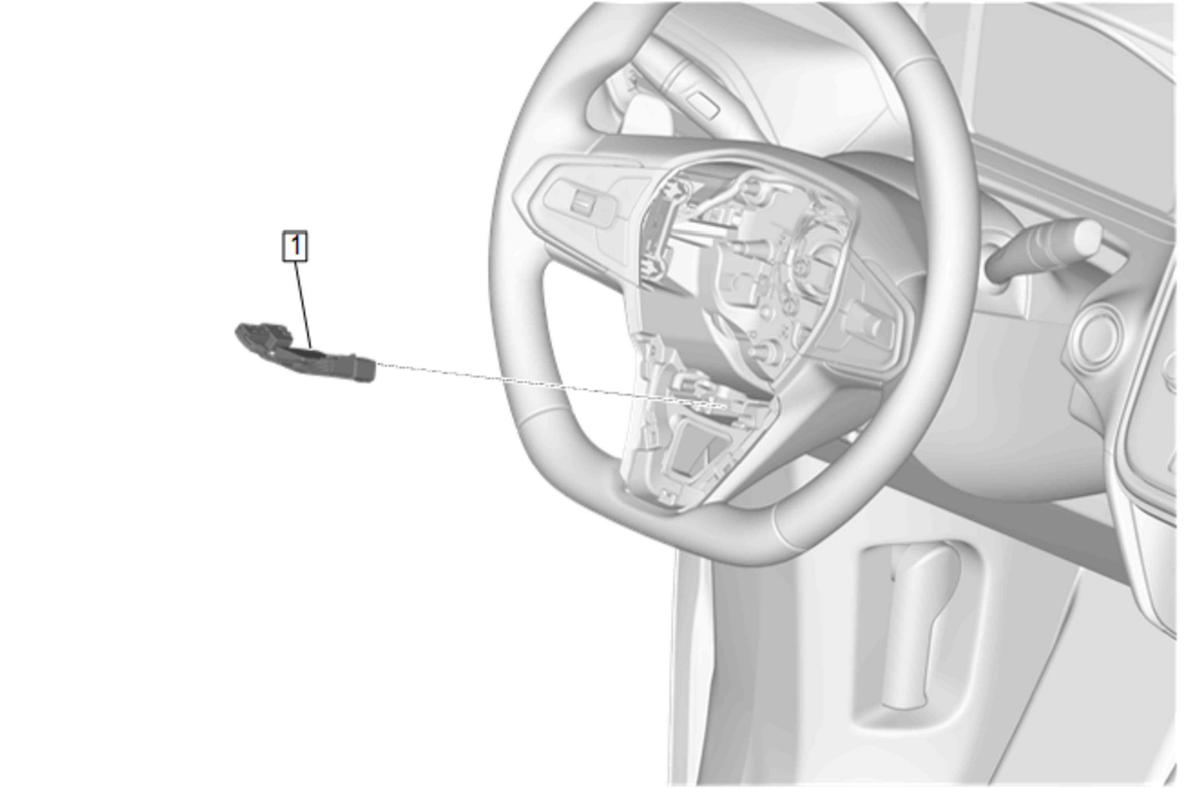

  1. GM5675508Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Heated Steering Wheel Module (1) - Install

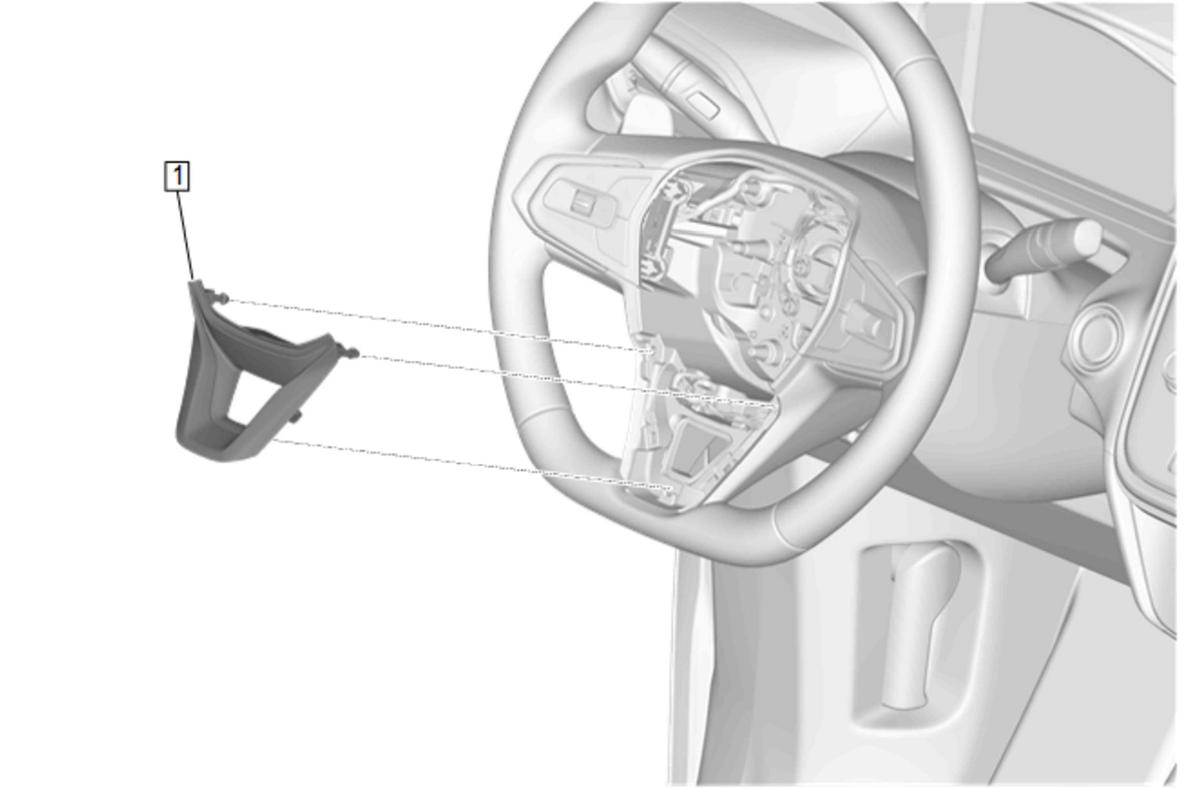

  3. GM5675507Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Trim Spoke Cover Applique (1) - Install

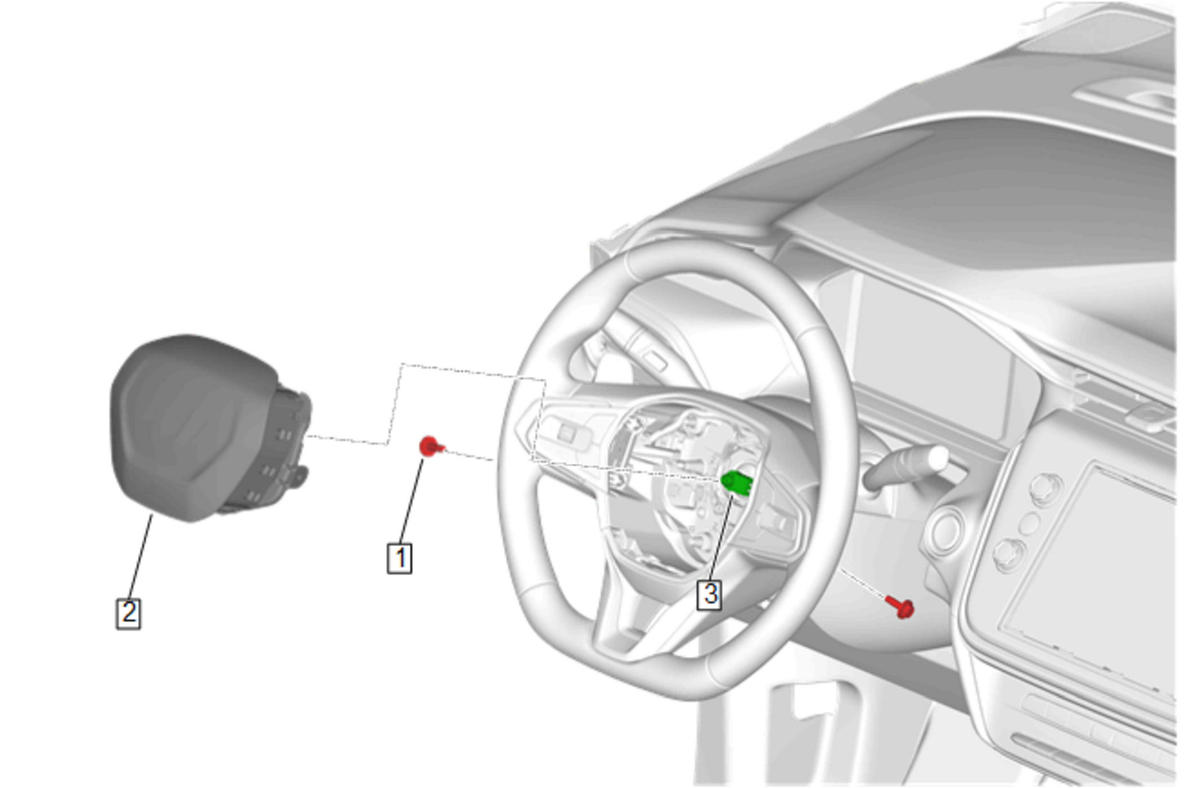

  4. GM5675780Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag (2) - Install - Steering Wheel Airbag Replacement
