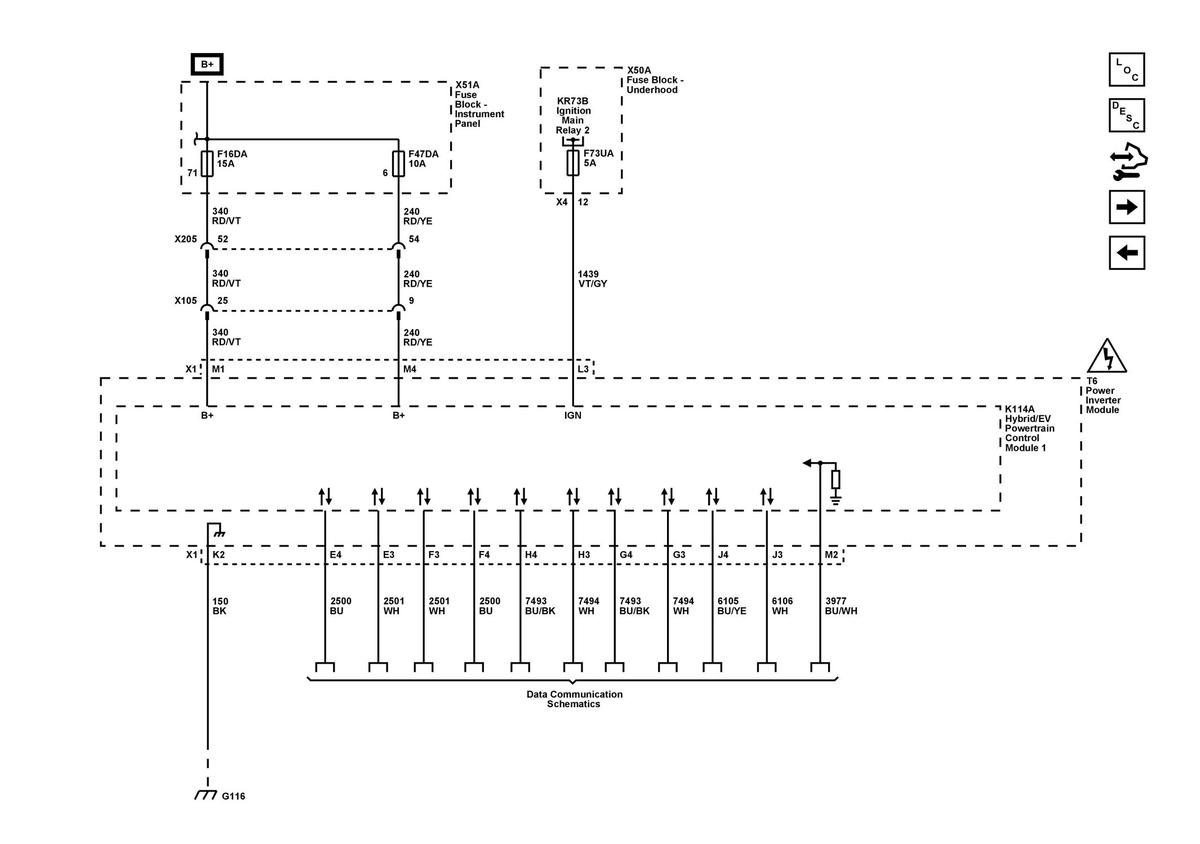

Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground, and Data Communication

GM5666477

Courtesy of GENERAL MOTORS COMPANY
