Home >> Chevrolet >> 2021 >> Traverse LT, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Electrical Center Identification Views >> Electrical Center Identification Views >> X51A Fuse Block - Instrument Panel Label

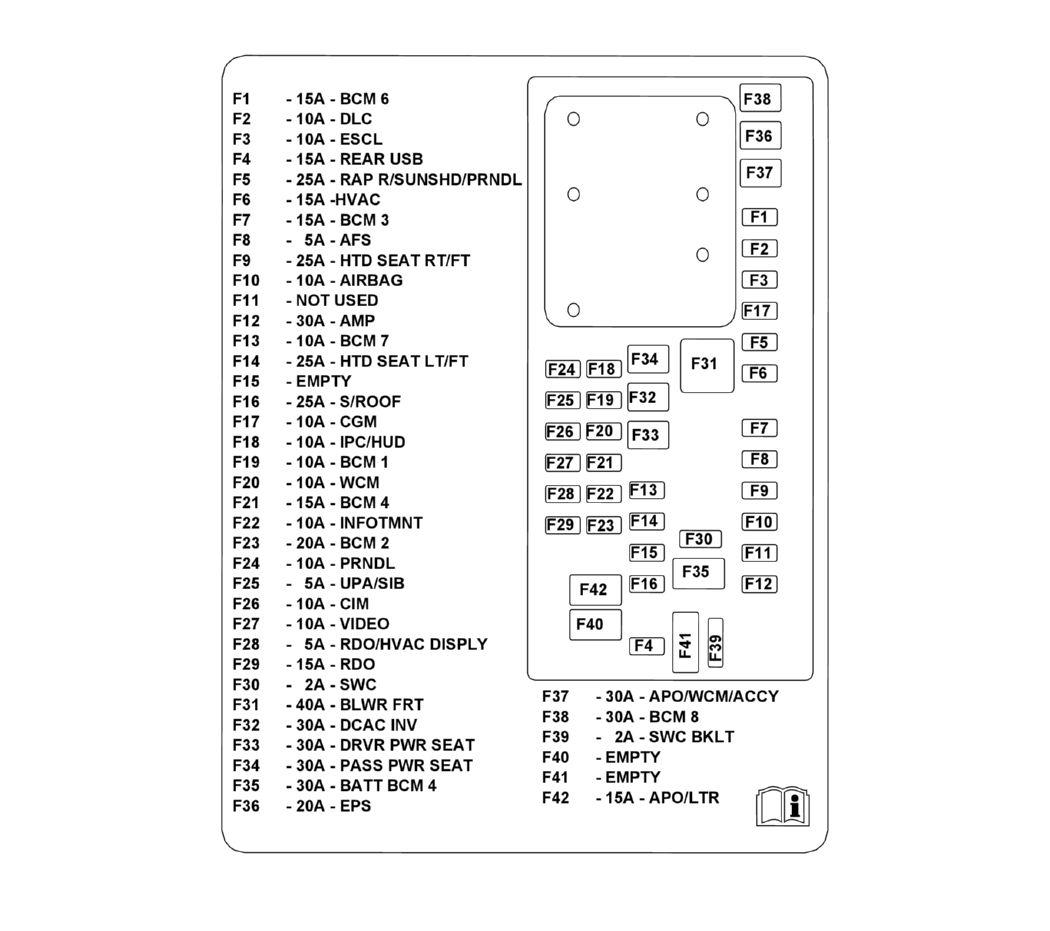

X51A Fuse Block - Instrument Panel Label

GM5765258

Courtesy of GENERAL MOTORS COMPANY
