B18 Battery Current Sensor
 Courtesy of GENERAL MOTORS COMPANY
|

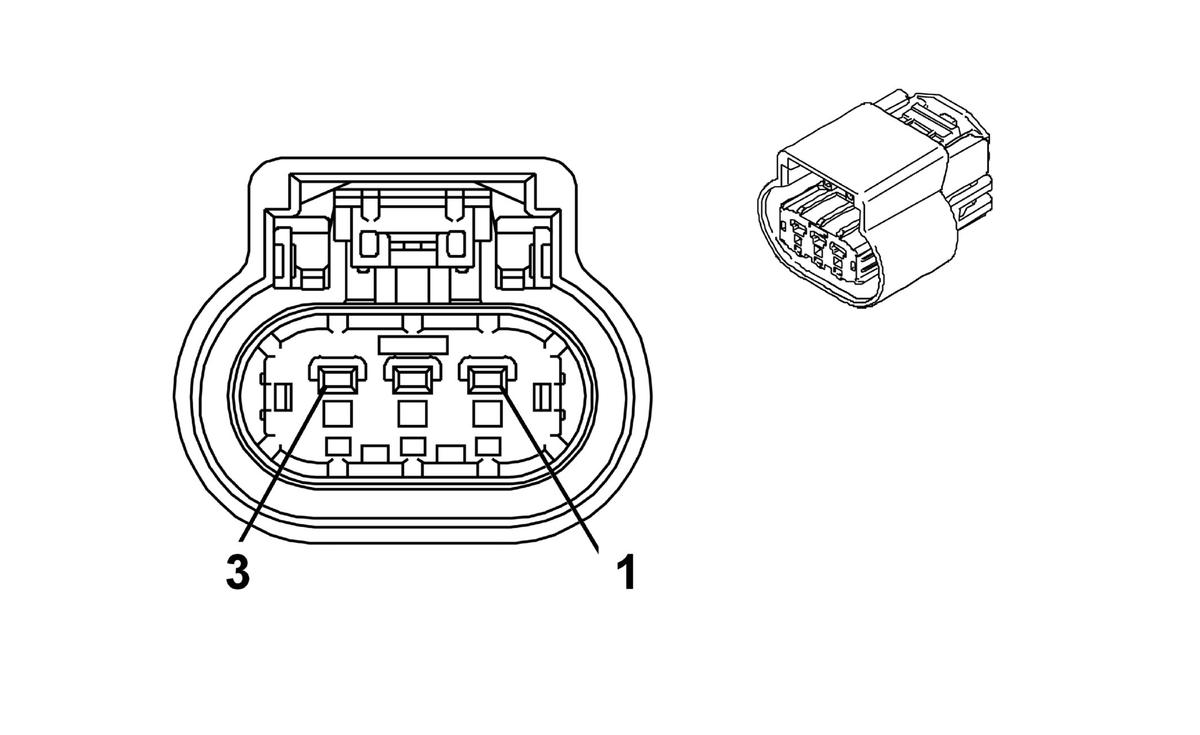

Connector Part Information
- Harness Type: Body
- OEM Connector: MG644167-5
- Service Connector: 19331327
- Description: 3 -Way F 150 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU / VT |
5076 |
Current Sensor Voltage Reference |
I |
- |
| 2 |
0.35 |
BK / VT |
5077 |
Current Sensor Low Reference |
I |
- |
| 3 |
0.35 |
WH / YE |
5075 |
Current Sensor Signal |
I |
- |
