X50D Fuse Block - Battery Top View

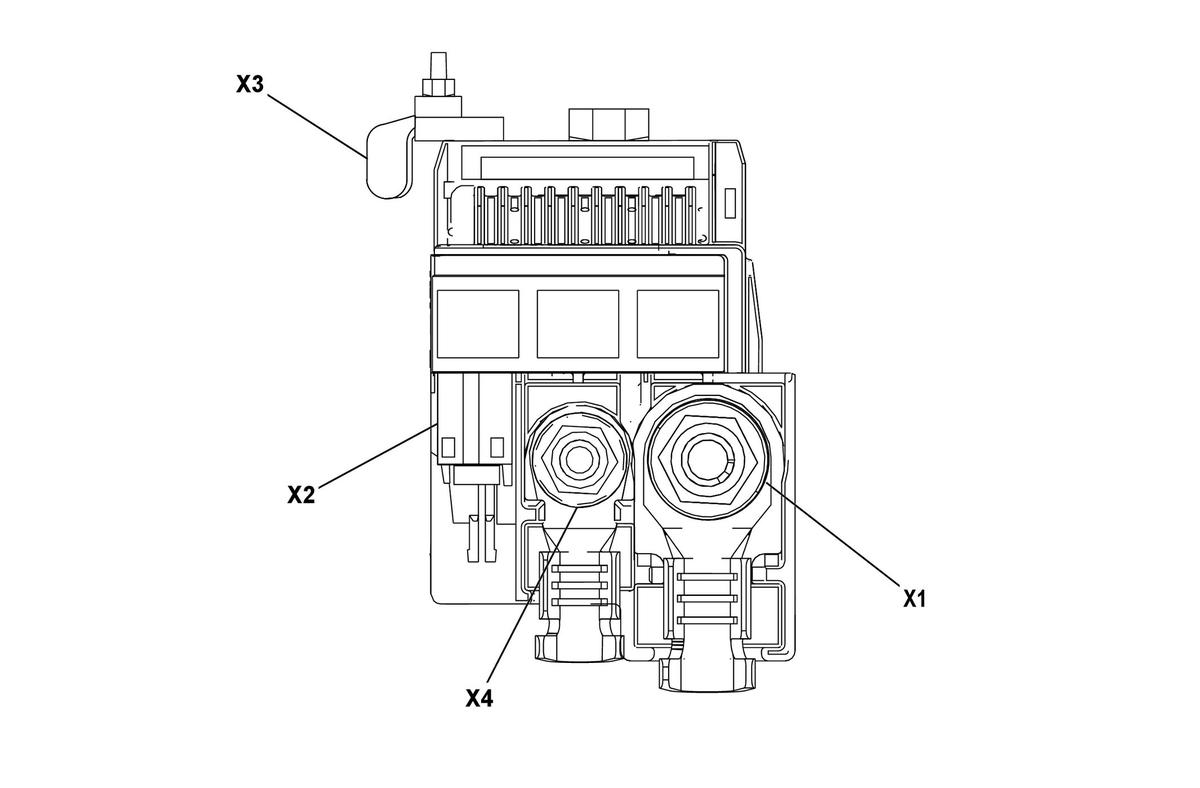

GM4754694Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
Fuses
1 UEC F1BA 175A
  • X50A Fuse Block - Underhood
2 EPS F2BA 80A
  • K43 Power Steering control Module
3 IEC F3BA 80A
  • X51A Fuse Block - Instrument Panel
4 APM F4BA 150A
  • K1 14V Power Module
