Antilock Brake System Wiring Schematics
>>

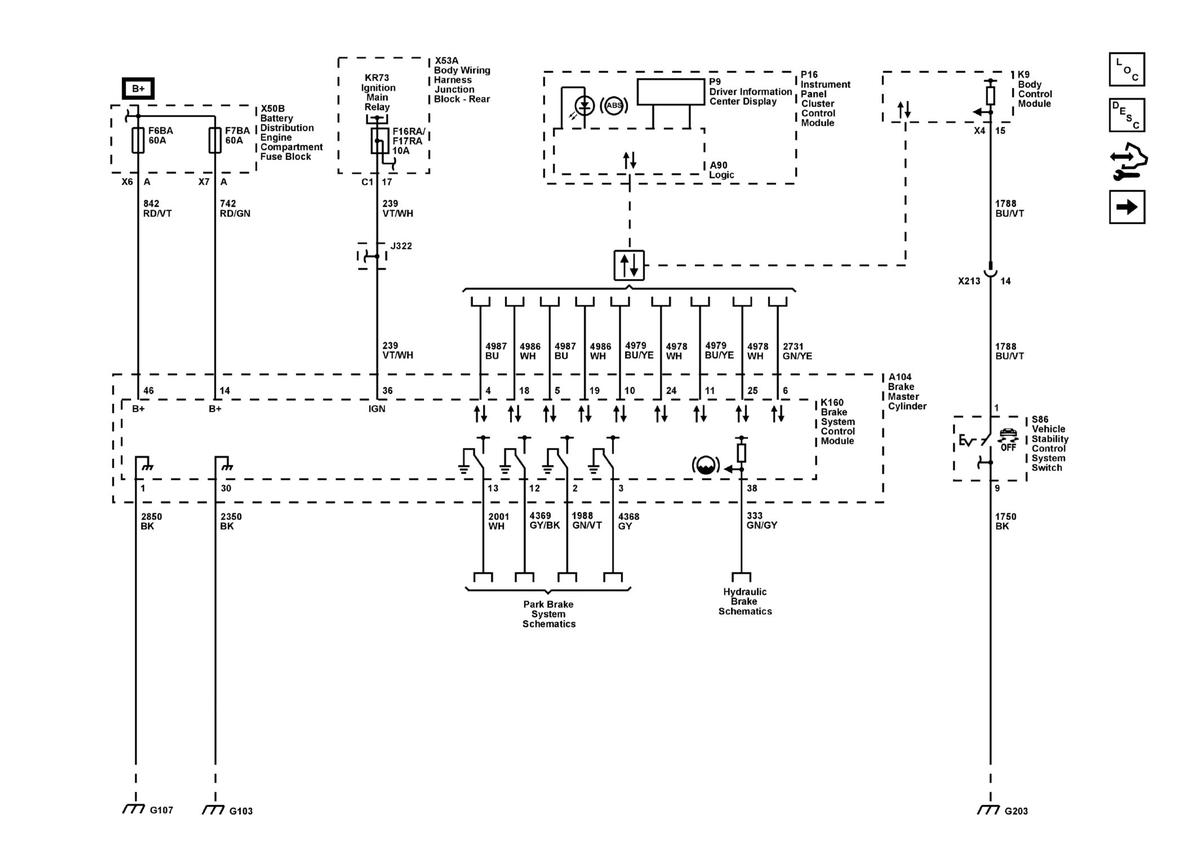

Module Power, Ground, and Subsystem References
Module Power, Ground, and Subsystem References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
