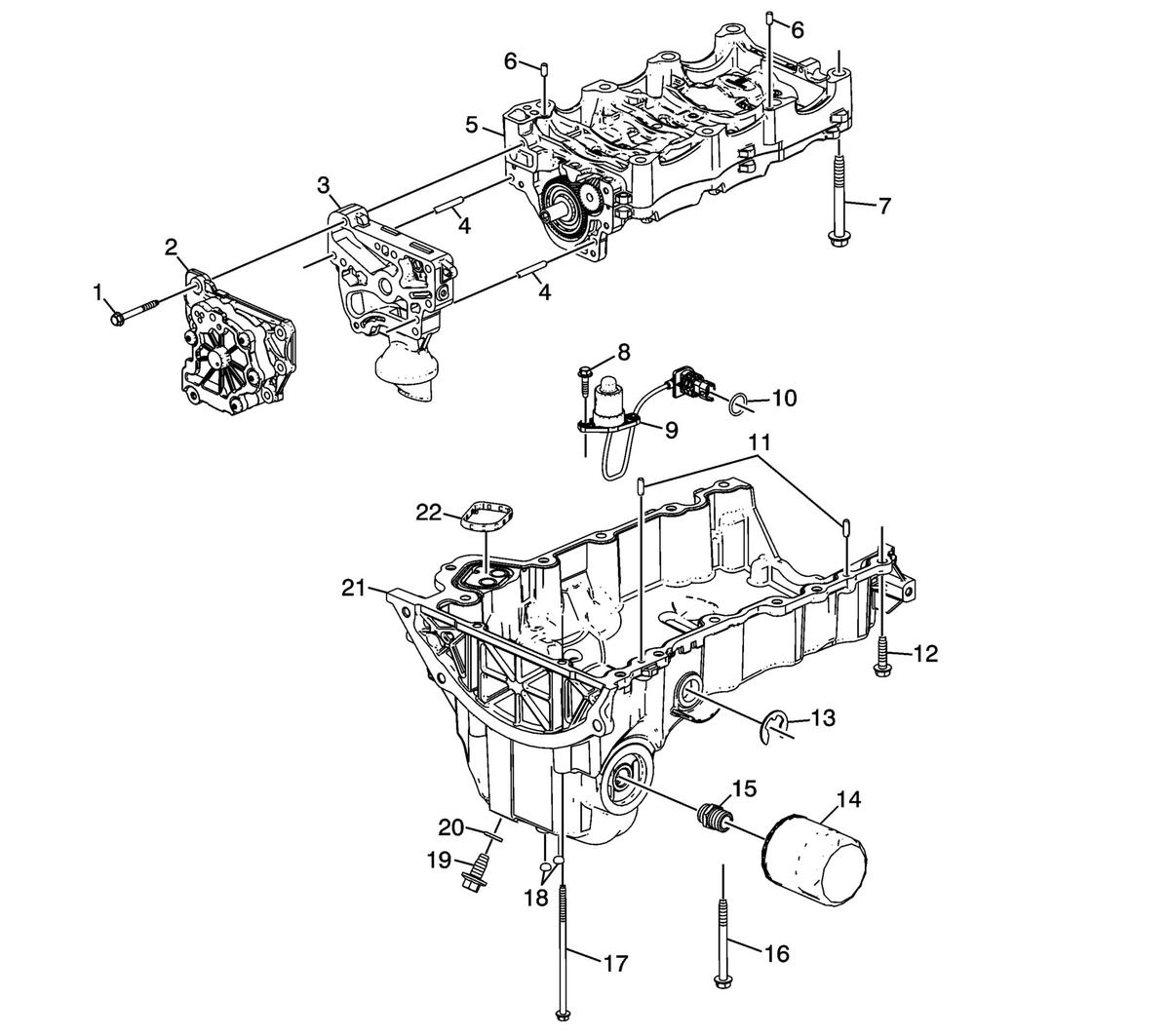

| 1 |
Oil Pump Assembly Bolt (Qty: 7) |
| 2 |
Oil Pump Assembly |
| 3 |
Oil Pump Cover |
| 4 |
Oil Pump Locating Pin (Qty: 2) |
| 5 |
Balancer Shaft Module |
| 6 |
Balancer Shaft Housing Locating Pin (Qty: 2) |
| 7 |
Balancer Shaft Housing Bolt (Qty: 8) |
| 8 |
Engine Oil Level Indicator Switch Bolt (Qty: 2) |
| 9 |
Engine Oil Level Indicator Switch |
| 10 |
Engine Oil Level Indicator O-ring Seal |
| 11 |
Oil Pan Locating Pin (Qty: 2) |
| 12 |
Oil Pan Bolt (Qty: 11) |
| 13 |
Engine Oil Level Sensor Lead Clip |
| 14 |
Oil Filter |
| 15 |
Oil Filter Fitting |
| 16 |
Oil Pan Bolt (Qty: 1) |
| 17 |
Oil Pan Bolt (Qty: 2) |
| 18 |
Oil Gallery Plug (Qty: 2) |
| 19 |
Oil Pan Drain Plug |
| 20 |
Oil Pan Drain Plug Seal |
| 21 |
Oil Pan |
| 22 |
Oil Pan Gasket |
