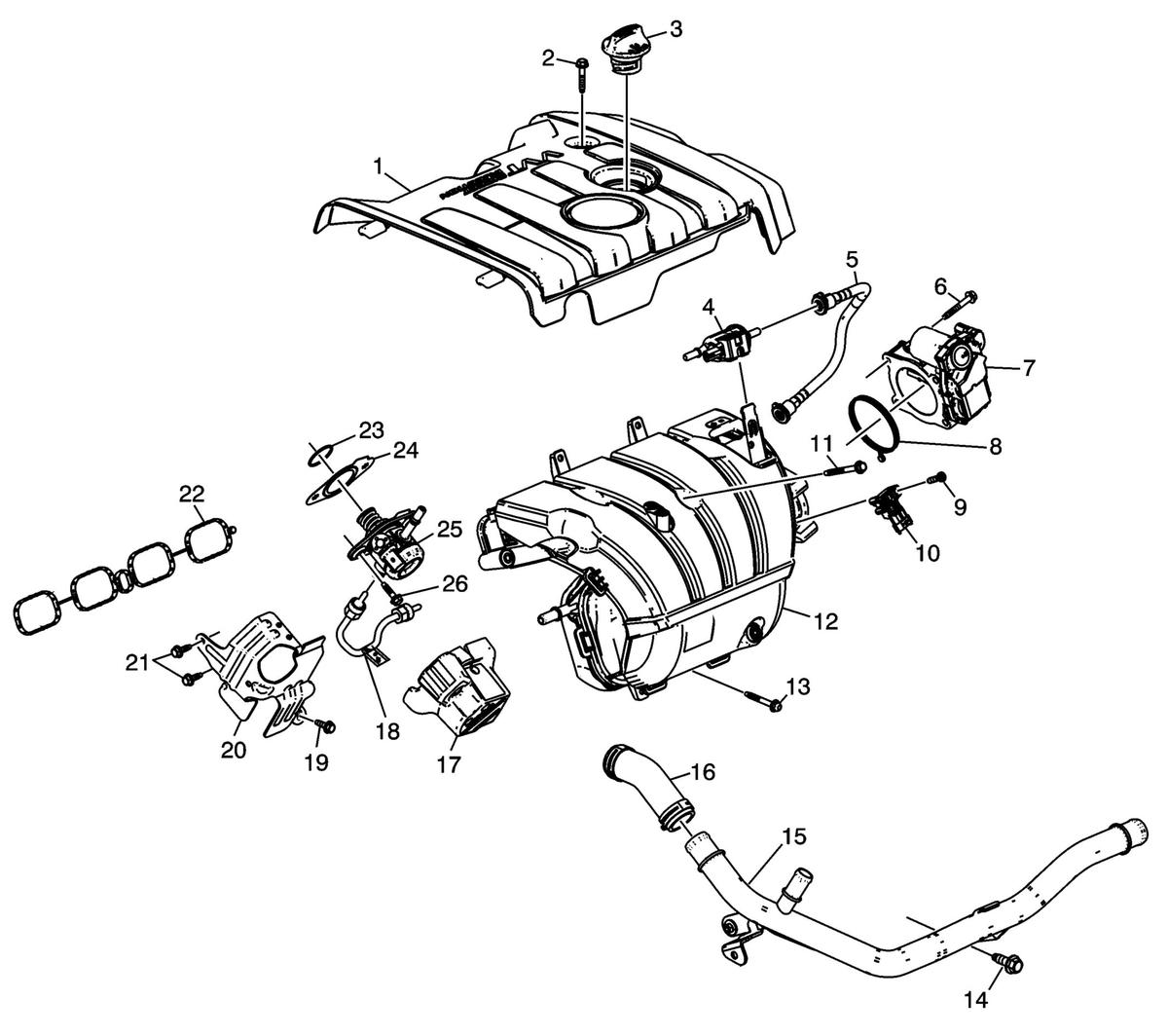

| 1 |
Intake Manifold Sight Shield |
| 2 |
Intake Manifold Sight Shield Bolt (Qty: 1) |
| 3 |
Oil Fill Cap |
| 4 |
Evaporative Emission Canister Purge Valve Assembly |
| 5 |
Evaporative Emission Canister Purge Valve Pipe Assembly |
| 6 |
Throttle Body Assembly Bolt (Qty: 4) |
| 7 |
Throttle Body Assembly |
| 8 |
Throttle Body Assembly Gasket |
| 9 |
Manifold Absolute Pressure (MAP) Sensor Bolt |
| 10 |
Manifold Absolute Pressure (MAP) Sensor |
| 11 |
Intake Manifold Bolt (Qty: 5) |
| 12 |
Intake Manifold |
| 13 |
Intake Manifold Bolt (Qty: 1) |
| 14 |
Radiator Inlet Pipe Bolt (Qty: 1) |
| 15 |
Radiator Inlet Pipe |
| 16 |
Radiator Inlet Hose |
| 17 |
Fuel Pump Insulator |
| 18 |
Fuel Feed Intermediate Pipe Assembly |
| 19 |
Fuel Pump Cover Bolt (Qty: 1) |
| 20 |
Fuel Pump Cover |
| 21 |
Fuel Pump Cover Bolt (Qty: 2) |
| 22 |
Intake Manifold Gasket |
| 23 |
Fuel Pump Housing O-Ring Seal |
| 24 |
Fuel Pump Housing Gasket |
| 25 |
Fuel Pump Assembly |
| 26 |
Fuel Pump Bolt (Qty: 2) |
