Installation Procedure

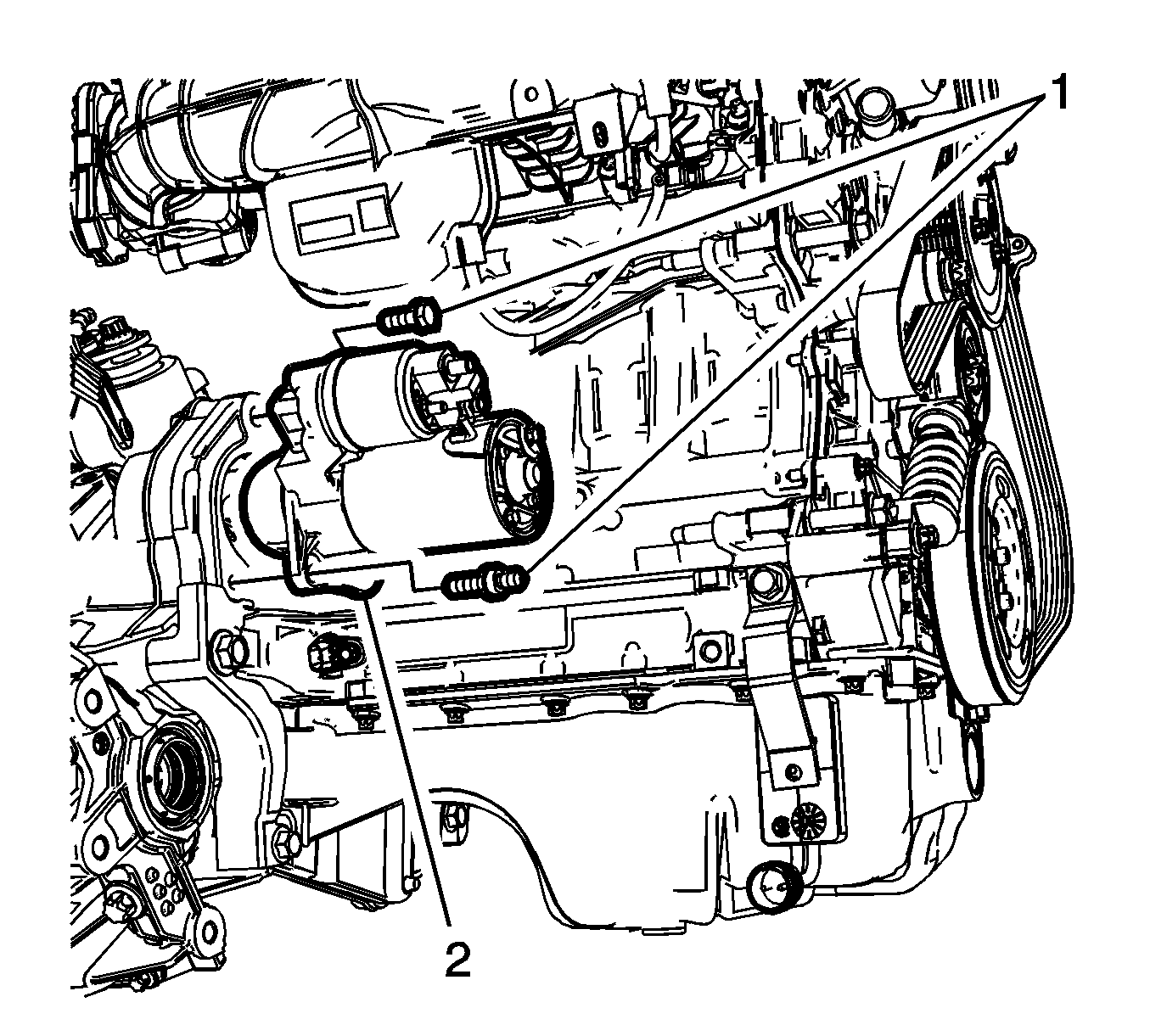

  1. GM2680106Courtesy of GENERAL MOTORS COMPANY

    Install the starter (2).

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the starter fasteners (1) and tighten to 25 N.m (18 lb ft).
  3. GM2191724Courtesy of GENERAL MOTORS COMPANY

    Install the ground cable (6).

  4. Install the ground cable fastener (5) and tighten to 12.5 N.m (111 lb in).
  5. Install the starter positive cable (4) to starter.
  6. Install the starter positive cable fastener (3) and tighten to 12.5 N.m (111 lb in).
  7. Install the battery positive cable terminal (1).
  8. Install the battery positive cable fastener (2) and tighten to 12.5 N.m (111 lb in).
  9. Install the drivetrain and suspension skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
  10. Lower the vehicle.
  11. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
