Behind Instrument Panel - Left

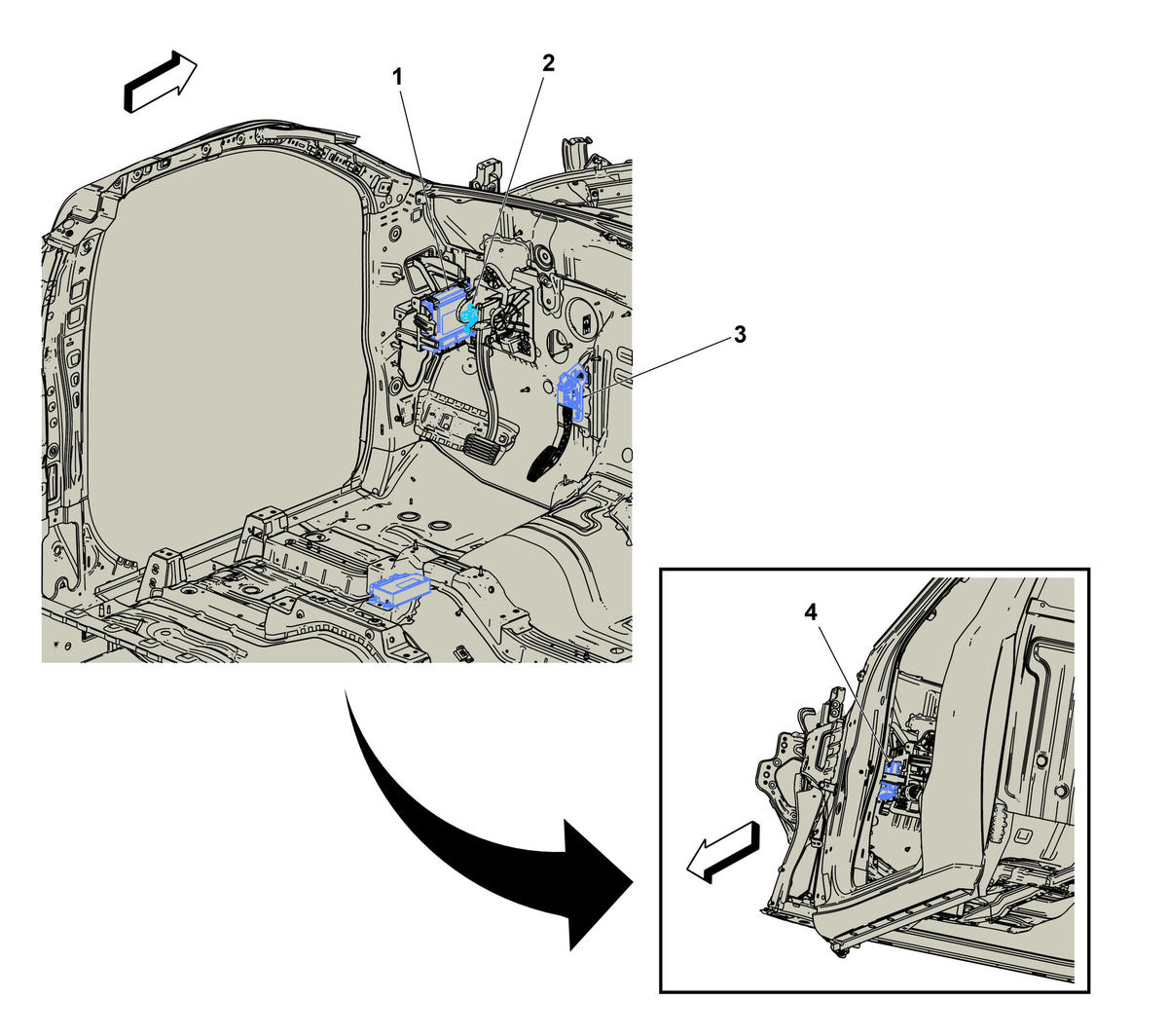

GM5023365Courtesy of GENERAL MOTORS COMPANY
Items
1. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7
2. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
3. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
4. K84 Keyless Entry Control Module (BTM) K84 Keyless Entry Control Module X1 (BTM) , or K84 Keyless Entry Control Module X2 (BTM)
