Sunroof Panel/Window Guide Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

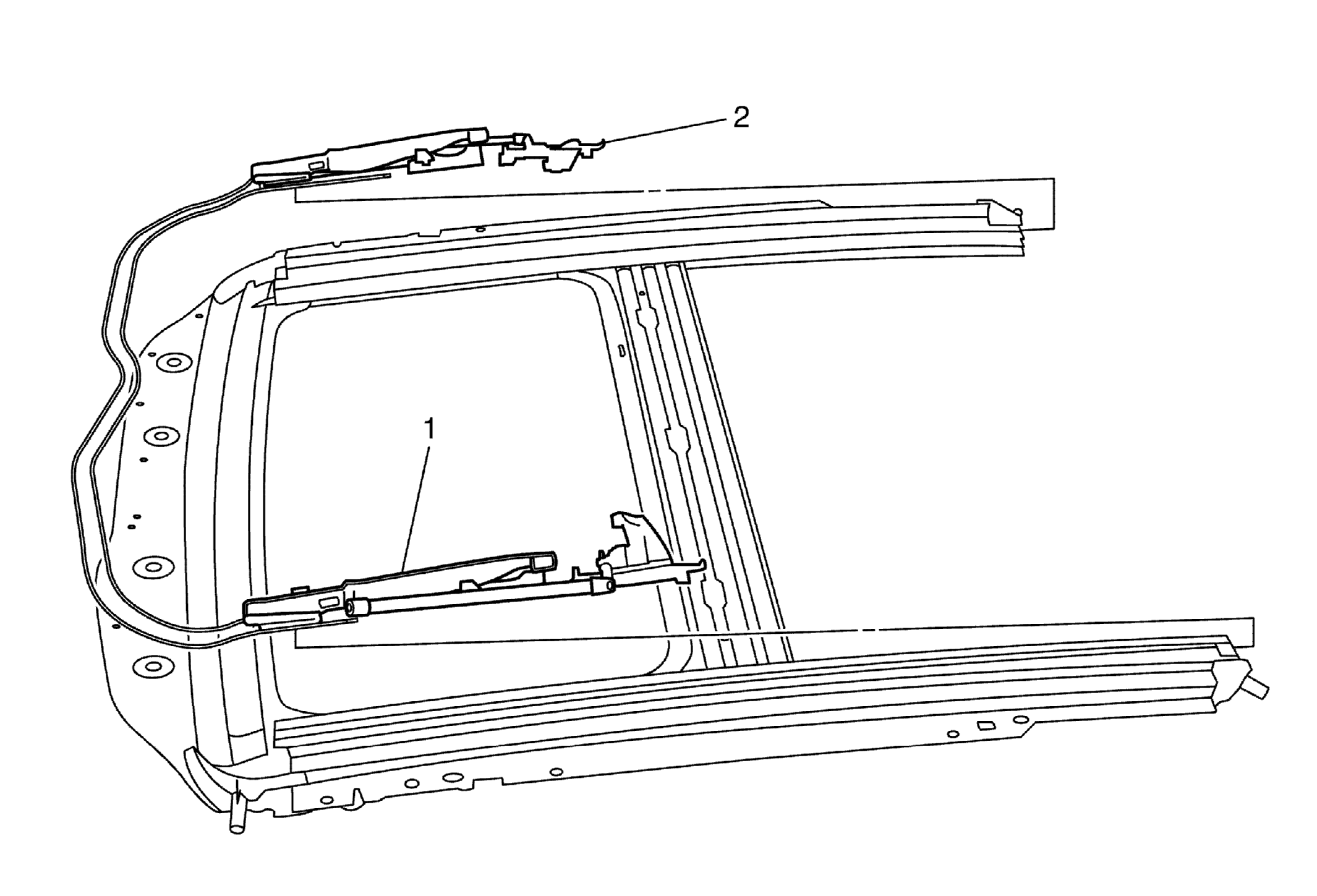

| Callout |
Component Name |
|
Preliminary Procedures
- Sunroof Housing Replacement
- Sunroof Housing Rear Support Replacement
|
| 1 |
Sunroof Panel/Window Guide Procedure
- Move the sunroof panel/window guide left side and right side rearward out of the sliding rail.
- After installation, adjust the sunroof module.
- After the installation, adjust the sunroof sunshade motor.
- After the installation, adjust the sunroof window.
- Functional check sunroof.
- Visually check the sunroof.
|
| 2 |
Sunroof Panel/Window Guide |
