Engine Control Module Bracket Replacement

WARNING: This page is about a different car, the 2020 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

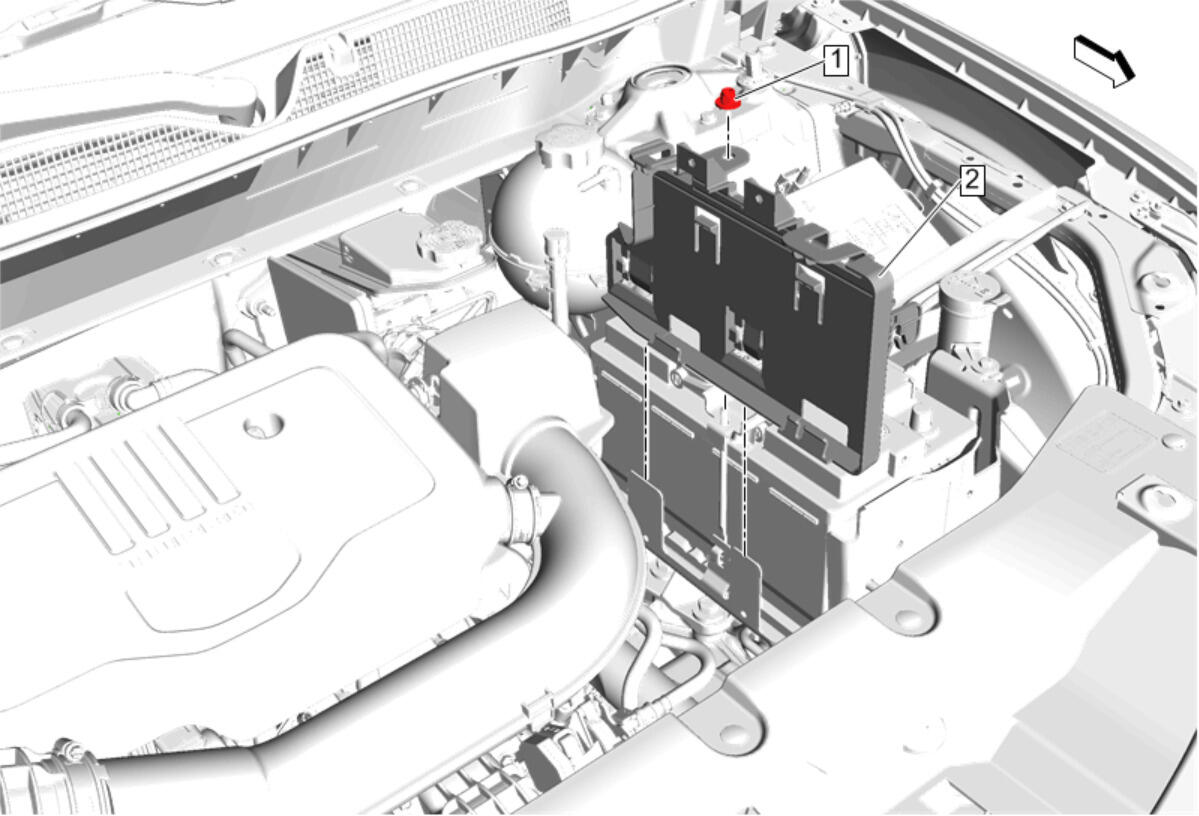

Callout	Component Name
Preliminary Procedures Radiator Surge Tank Inlet Hose @ Engine Control Module Bracket - Reposition away - Radiator Surge Tank Inlet Hose Replacement (LSY) Engine Control Module Replacement
1	Battery Hold Down Retainer Nut CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Engine Control Module Bracket

Callout

Component Name

Preliminary Procedures

Radiator Surge Tank Inlet Hose @ Engine Control Module Bracket - Reposition away - Radiator Surge Tank Inlet Hose Replacement (LSY)
Engine Control Module Replacement

Battery Hold Down Retainer Nut

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Engine Control Module Bracket
