Installation Procedure
- Reposition the secondary air injection pipe to the vehicle.

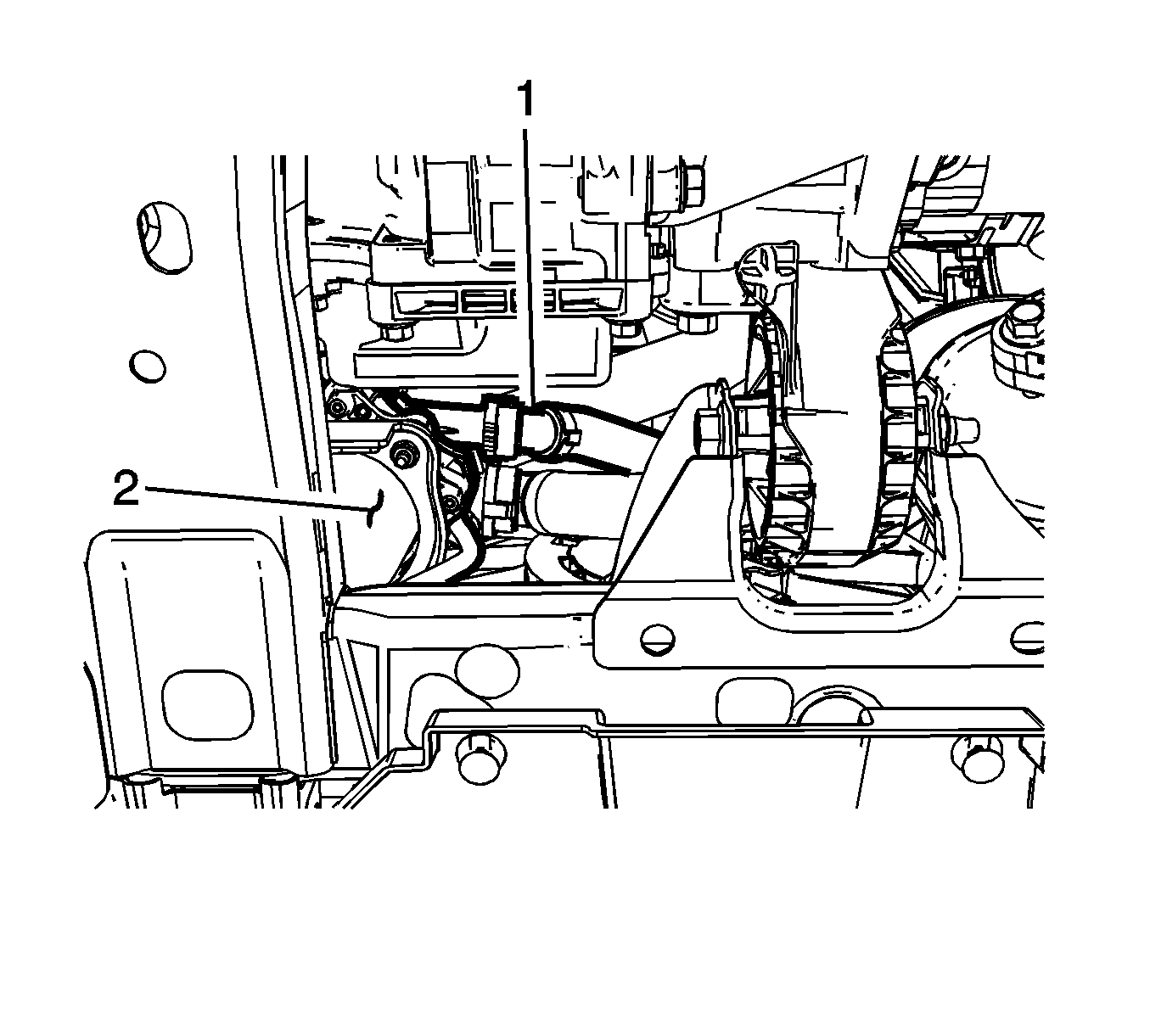

Connect the secondary air injection pipe (1) to the secondary air injection pump (2). Refer to Plastic Collar Quick Connect Fitting Service .

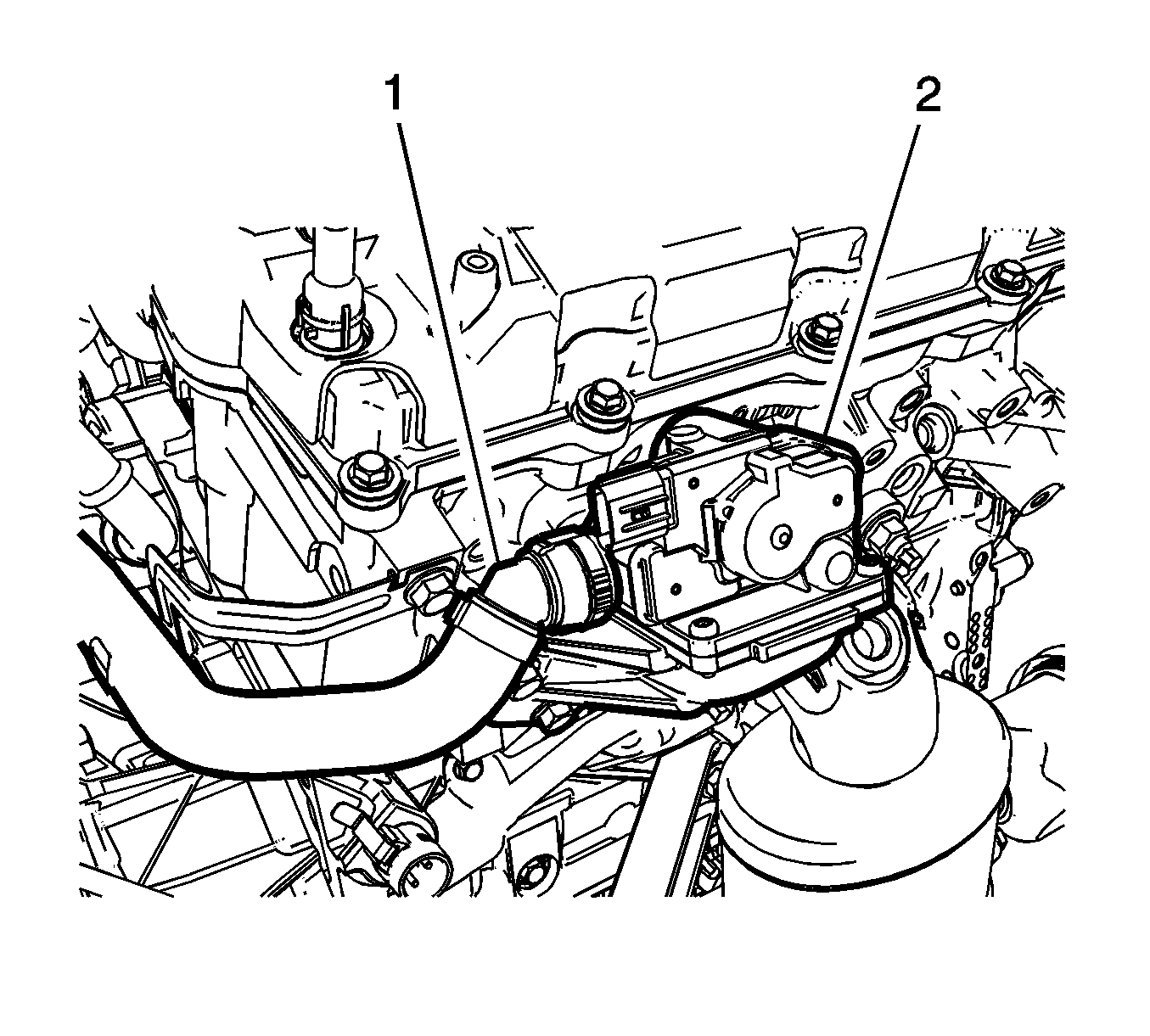

Connect the secondary air injection pipe (1) to the left side secondary air injection bypass valve (2). Refer to Plastic Collar Quick Connect Fitting Service .

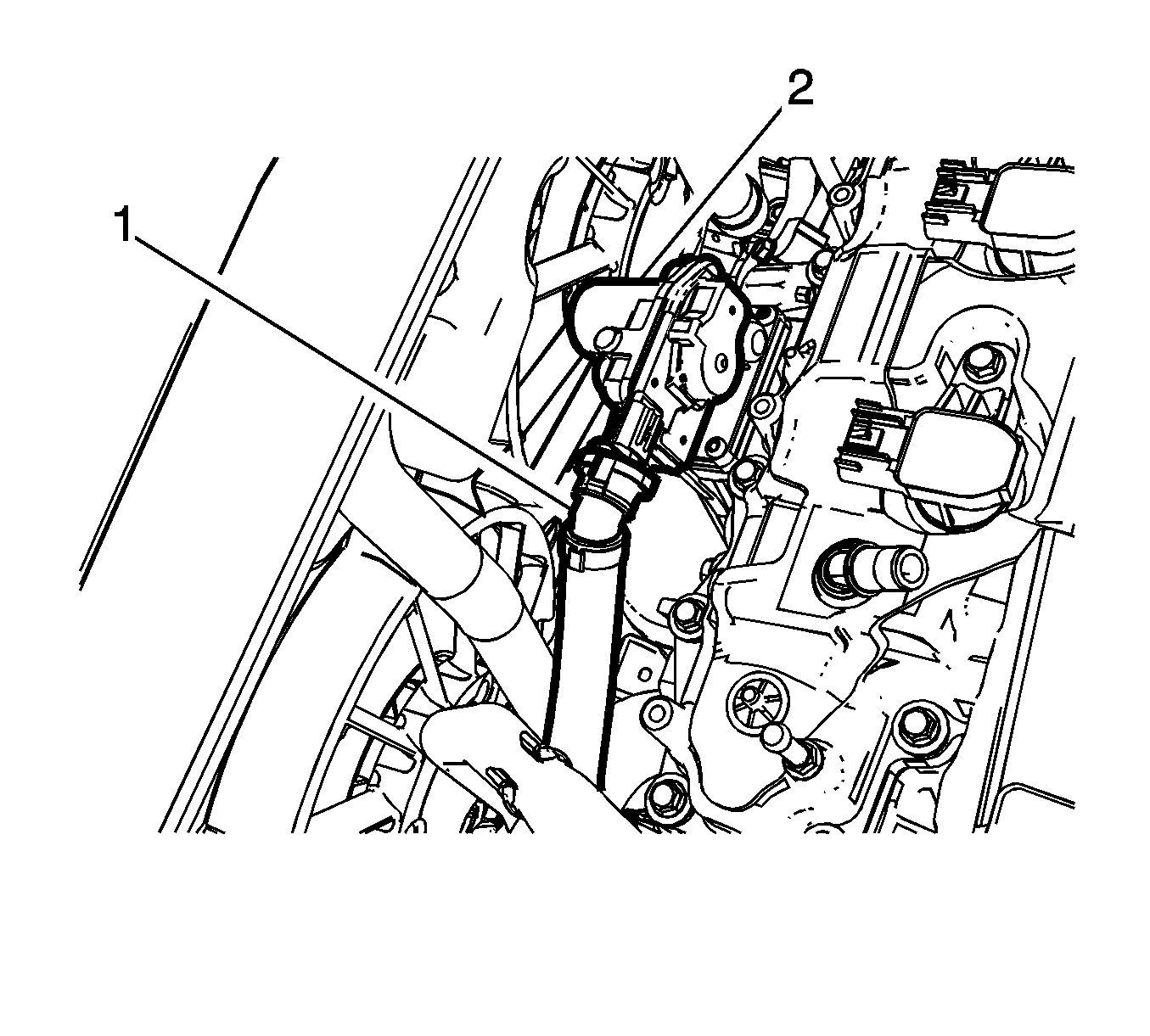

Connect the secondary air injection pipe (1) to the right side secondary air injection bypass valve (2). Refer to Plastic Collar Quick Connect Fitting Service .
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) .
