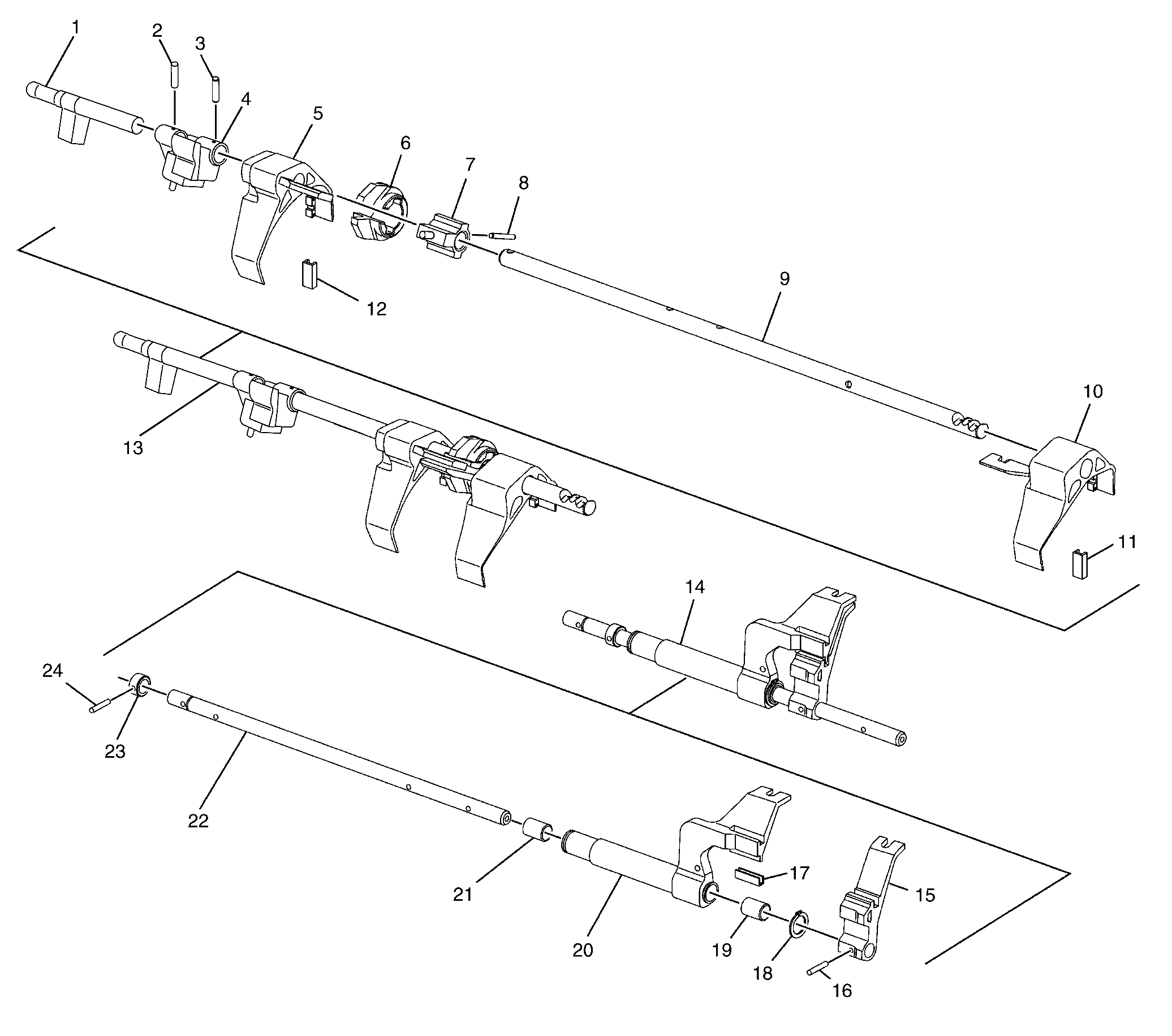

| 1 |
Offset Shift Lever |
| 2 |
Offset Shift Lever Pin |
| 3 |
Control Select Arm Pin |
| 4 |
Control Select Arm |
| 5 |
3rd/4th Shift Fork Assembly |
| 6 |
Gear Select Interlock Plate |
| 7 |
Select Control Lever Assembly |
| 8 |
Select Control Lever Assembly Pin |
| 9 |
1st/2nd/3rd/4th Shift Shaft |
| 10 |
1st/2nd Shift Fork Assembly |
| 11 |
1st/2nd Shift Fork Insert |
| 12 |
3rd/4th Shift Fork Insert |
| 13 |
1st/2nd/3rd/4th Shift Rail Assembly |
| 14 |
5th, 6th, and Reverse Shift Rail Assembly |
| 15 |
Reverse Shift Lever |
| 16 |
Reverse Shift Lever Pin |
| 17 |
5th and Reverse Shift Fork Insert |
| 18 |
5th/6th Shift Lever Retaining Ring |
| 19 |
Shift Shaft Bushing |
| 20 |
5th/6th Shift Lever Assembly |
| 21 |
Shift Shaft Bushing |
| 22 |
5th, 6th, and Reverse Shift Shaft |
| 23 |
Transmission Reverse Shift Lever Collar |
| 24 |
Reverse Shift Collar Pin |
