Installation Procedure

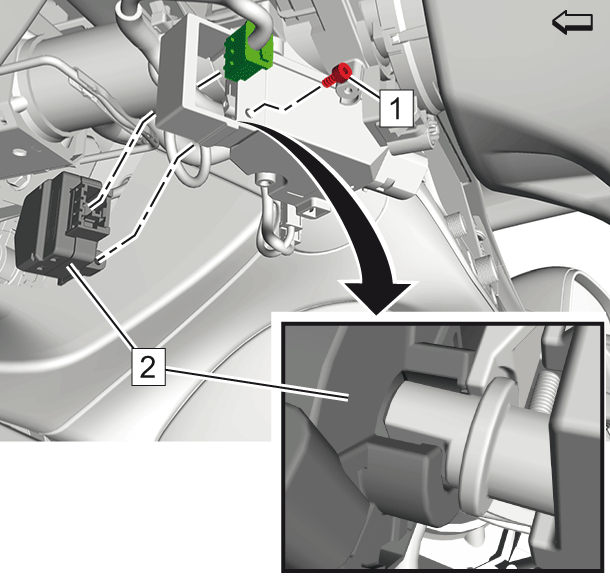

    Fig 1: Ignition and Start Switch With Bolt
    GM4573051Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  1. Install Ignition and Start Switch (2)

    Connect the electrical connector.

  2. Install and tighten Ignition and Start Switch Bolt (1) to 2 N.m (18 lb in)

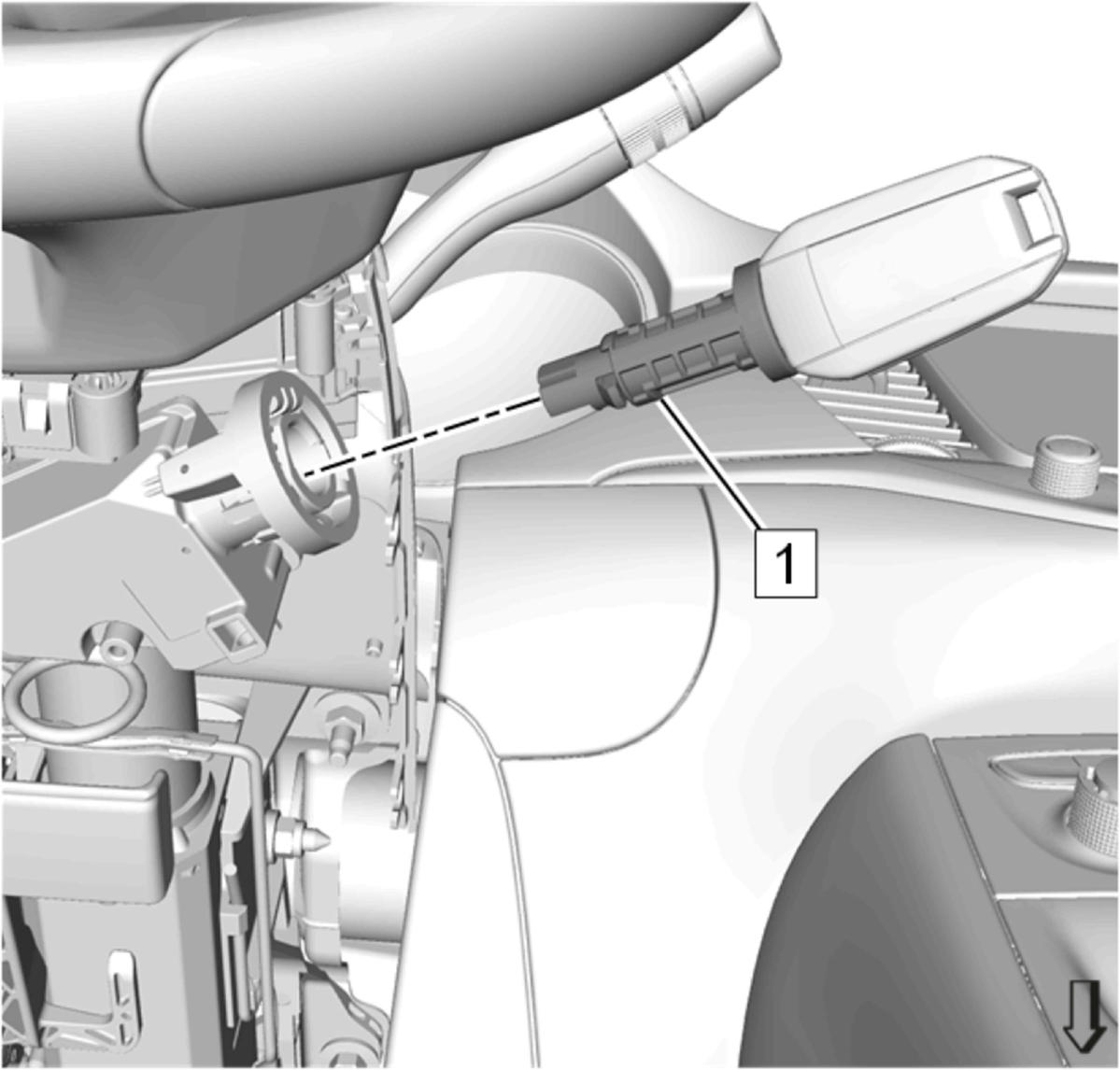

    3. Fig 2: Ignition Lock Cylinder
    GM4604795Courtesy of GENERAL MOTORS COMPANY
  3. Install Ignition Lock Cylinder (1)

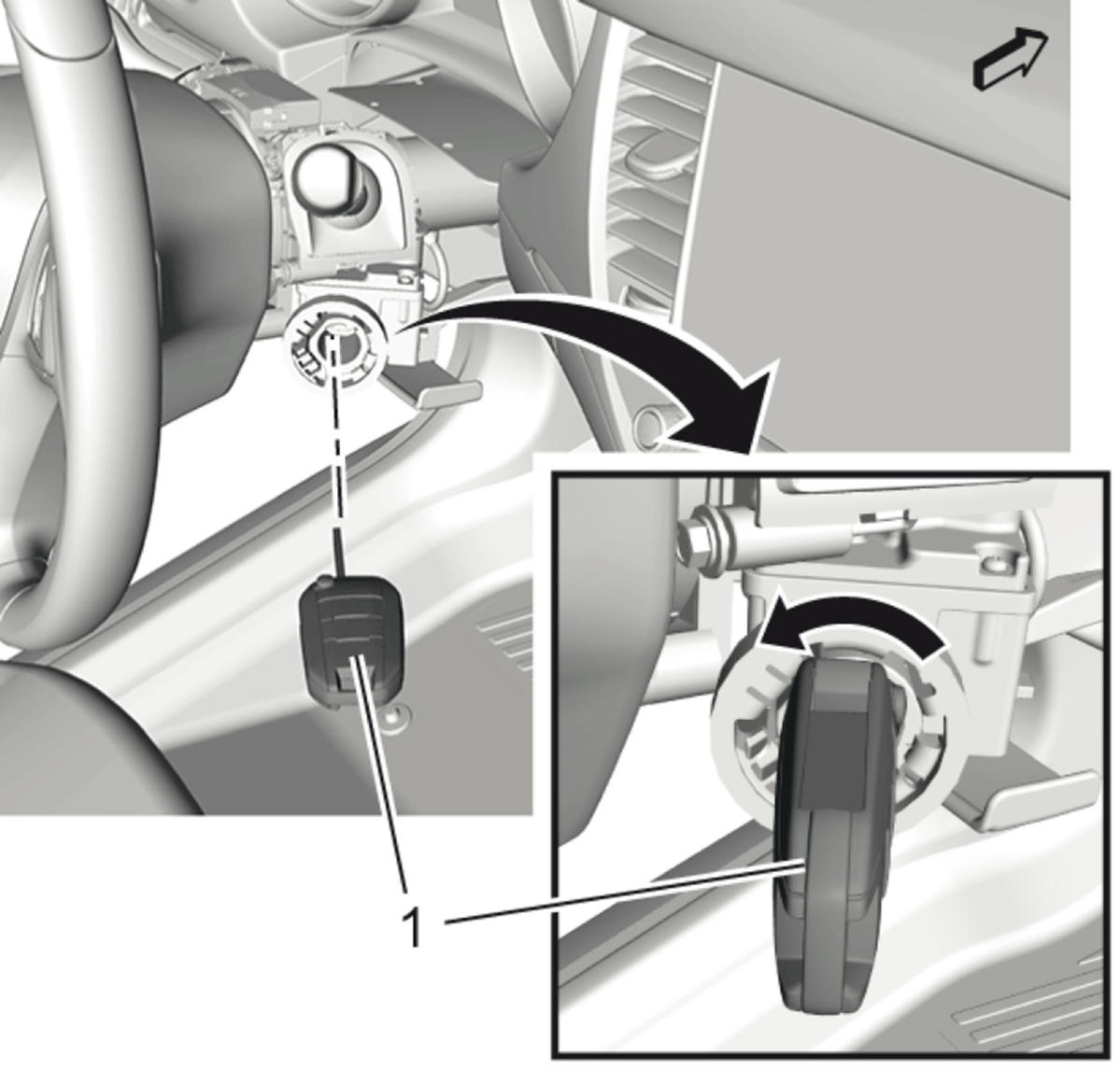

    4. Fig 3: Ignition Key
    GM4573052Courtesy of GENERAL MOTORS COMPANY
  4. Turn the ignition key (1) to position OFF and remove the ignition key (1) from the key cylinder.
  5. Install Steering Column Lower Trim Cover. Refer to Steering Column Lower Trim Cover Replacement
  6. Connect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
