Front Seat Belt Guide Adjuster Replacement (Crew Cab)

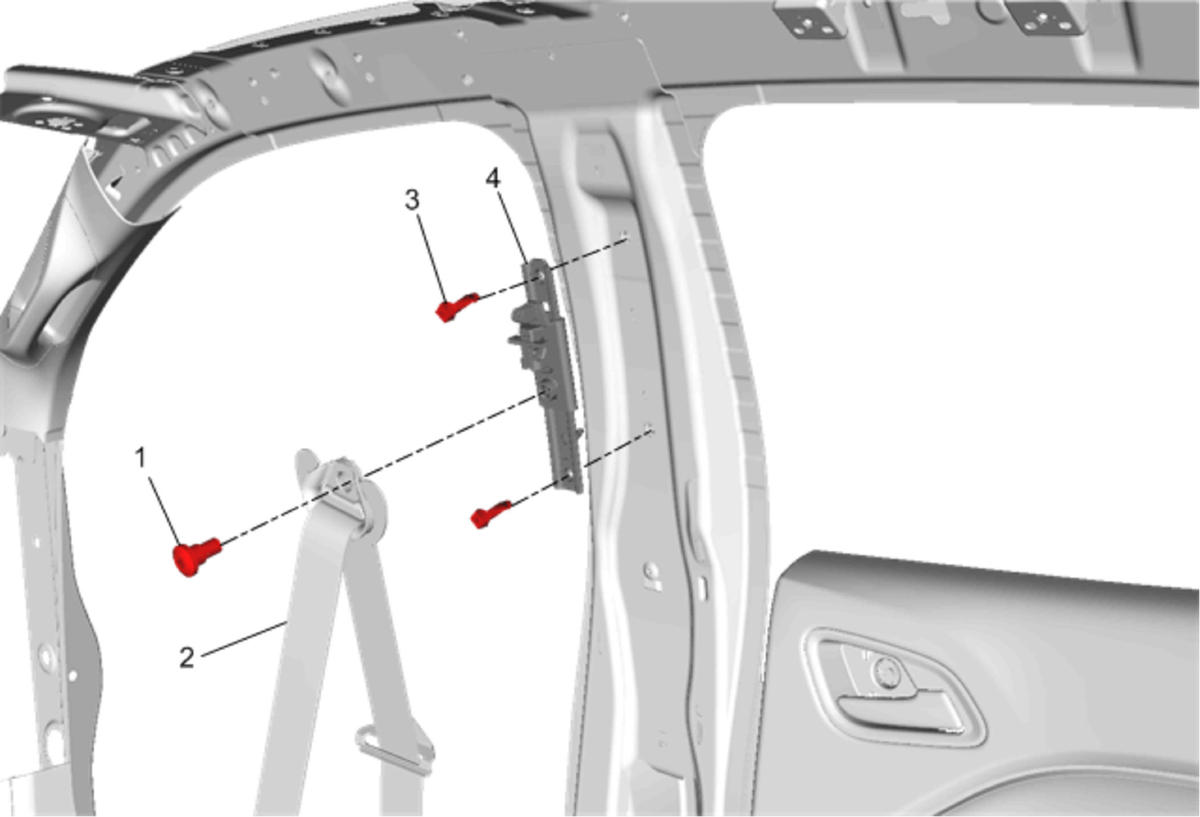

Fig 1: Front Seat Belt Guide Adjuster (Crew Cab)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement (Crew Cab)
1	Front Seat Belt Retractor Bolt CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Front Seat Belt
3	Front Seat Belt Guide Adjuster Bolt (Qty: 2) Tighten  45 N.m (33 lb ft)
4	Front Seat Belt Guide Adjuster
