Catalytic Converter Replacement (LCV)

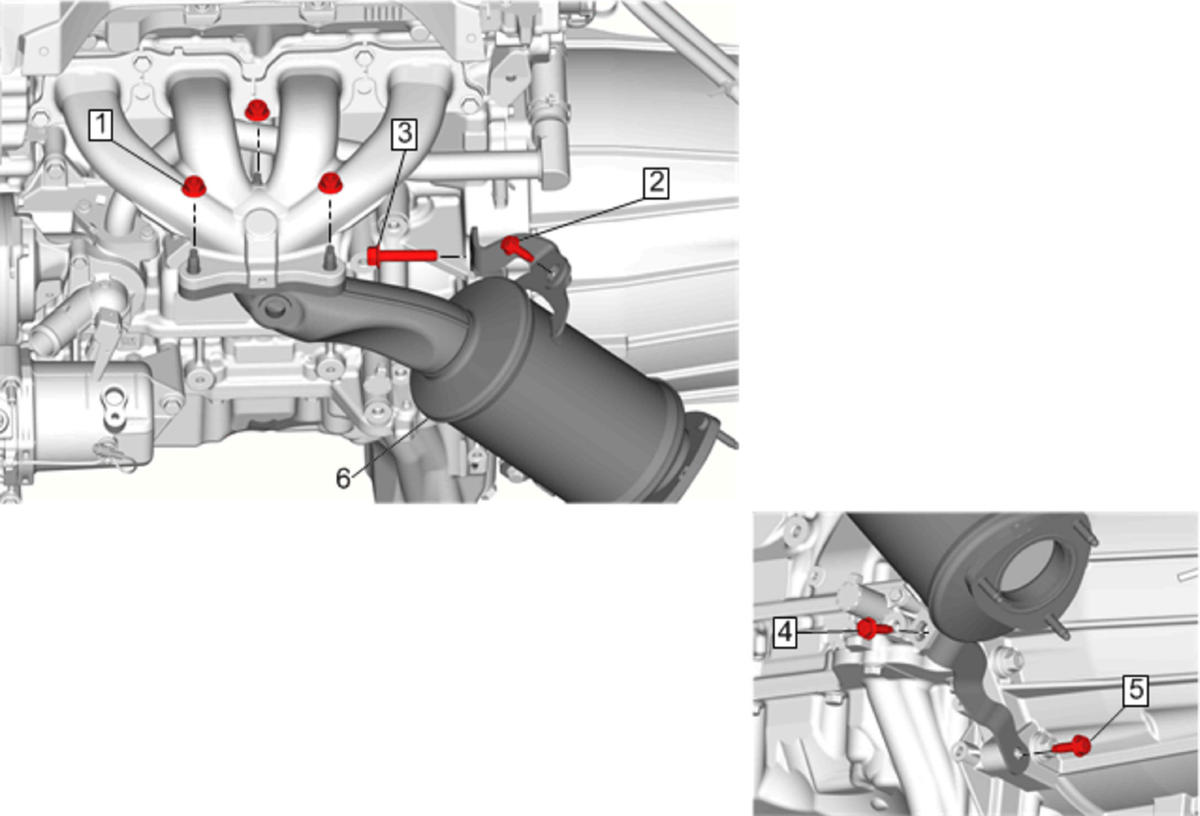

Fig 1: Catalytic Converter Replacement (LCV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . IMPORTANT: Torque all fasteners in the order listed. Preliminary Procedure Heated Oxygen Sensor Replacement - Sensor 1 Exhaust Manifold Replacement (LCV) Disconnect Exhaust Pipe @Catalytic Converter - Exhaust Pipe Replacement (LCV)
1	Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Fastener (Qty: 3) Tighten 22 N.m (16 lb ft)
3	Fastener (Qty: 3) Tighten 58 N.m (43 lb ft)
4	Fastener (Qty: 3) Tighten 22 N.m (16 lb ft)
5	Fastener (Qty: 3) Tighten 22 N.m (16 lb ft)
6	Catalytic Converter Procedure Install a NEW gasket.
