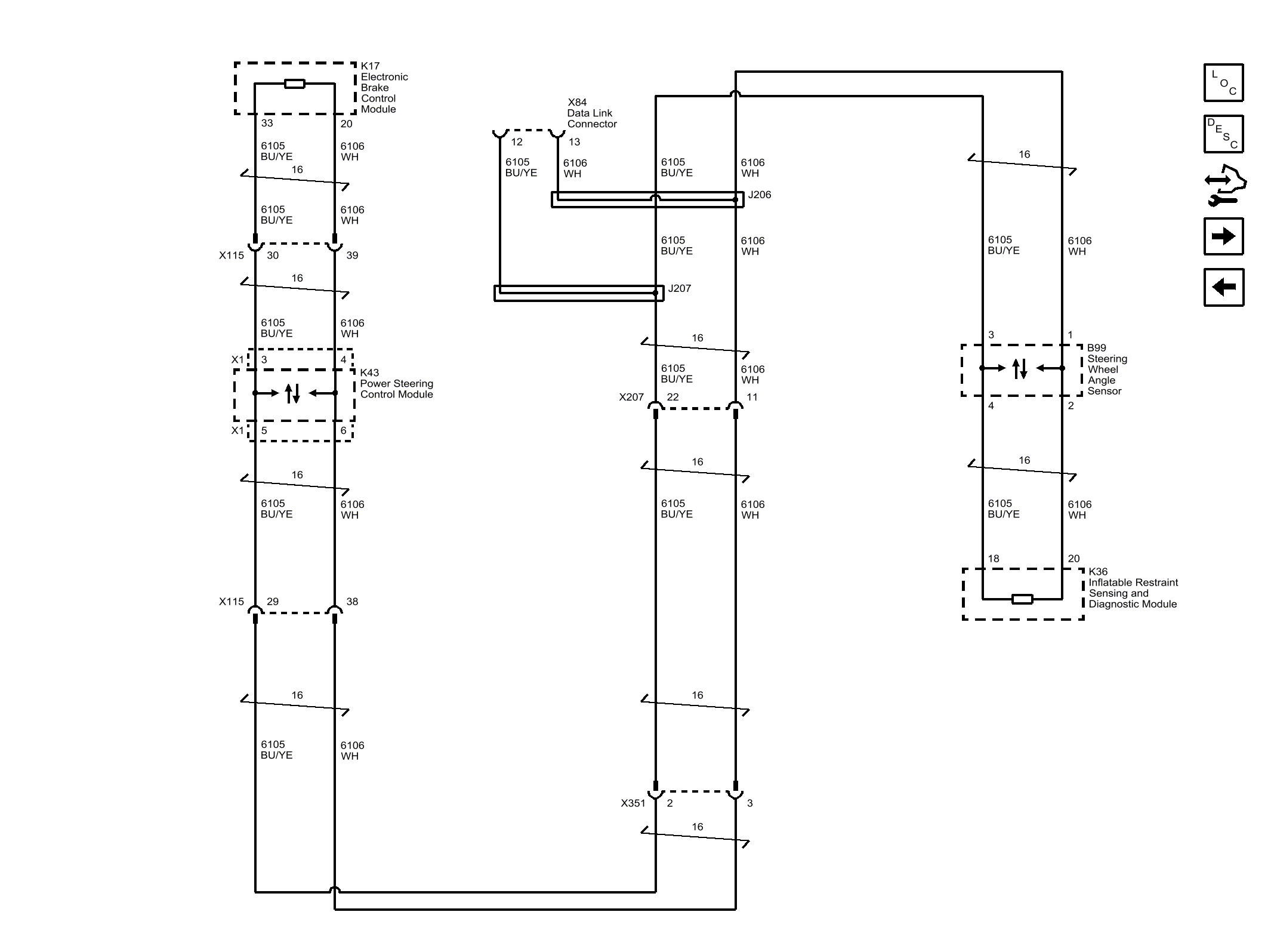

Home >> Chevrolet >> 2017 >> Caprice 6.0L Eng VIN 2 >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Chassis Expansion BUS
