Rear Spring Shackle Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

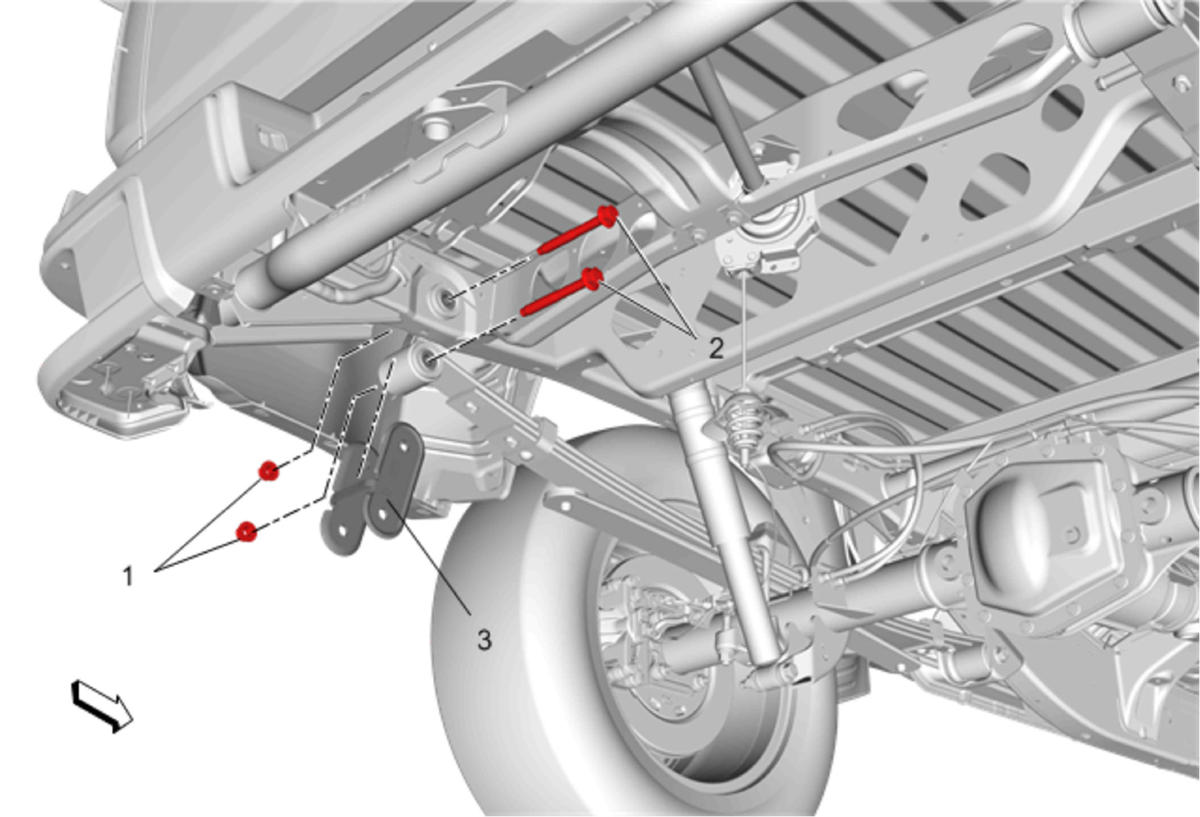

Fig 1: Rear Spring Shackle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Support the rear axle assembly.
1	Rear Spring Shackle Nut CAUTION: Refer to Fastener Caution . Tighten 160 N.m (118 lb ft)
2	Rear Spring Shackle Bolt
3	Rear Spring Shackle
