Catalytic Converter Heat Shield Replacement (LWN)

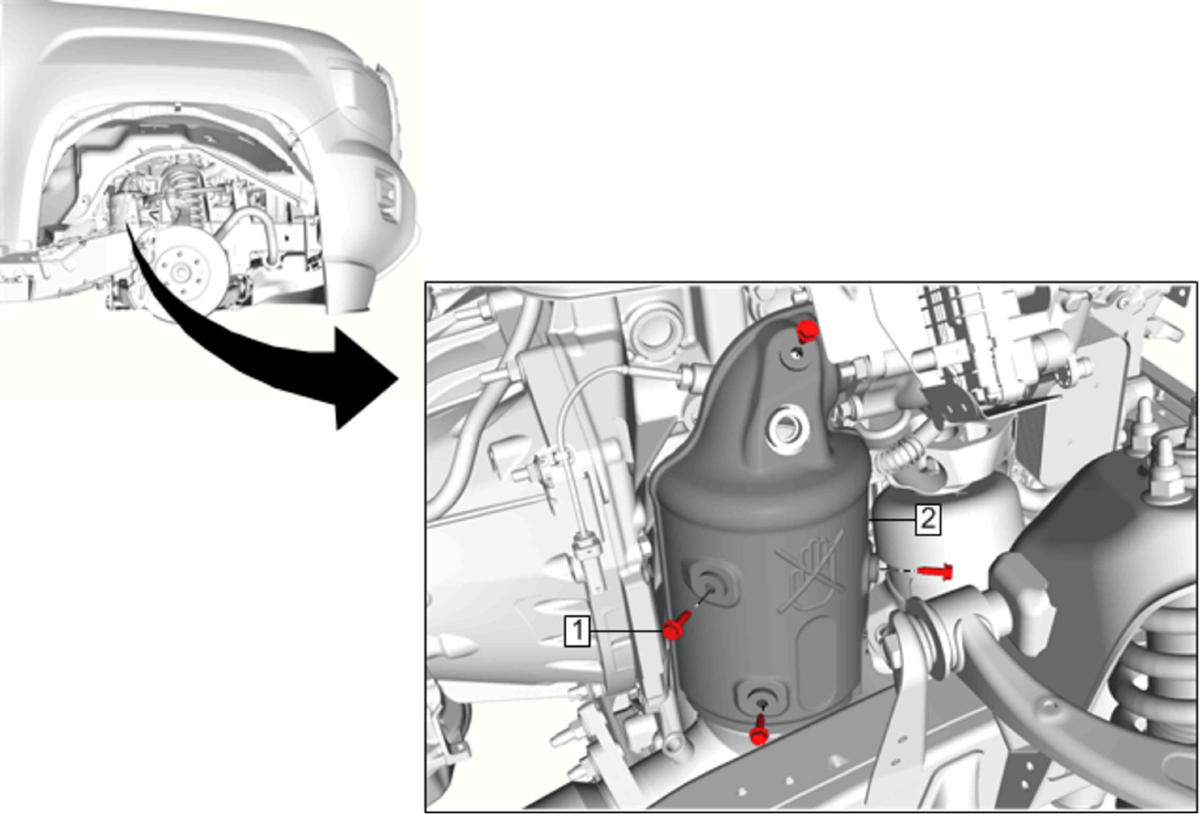

Fig 1: Catalytic Converter Heat Shield (LWN)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedures Front Wheelhouse Liner Replacement Nitrogen Oxides Sensor Replacement - Position 1
1	Catalytic Converter Heat Shield Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Catalytic Converter Heat Shield

Callout

Component Name

WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Preliminary Procedures

Catalytic Converter Heat Shield Bolt (Qty: 4)

CAUTION:

Tighten
10 N.m (89 lb in)

Catalytic Converter Heat Shield
