Outside Rearview Mirror Motor Replacement

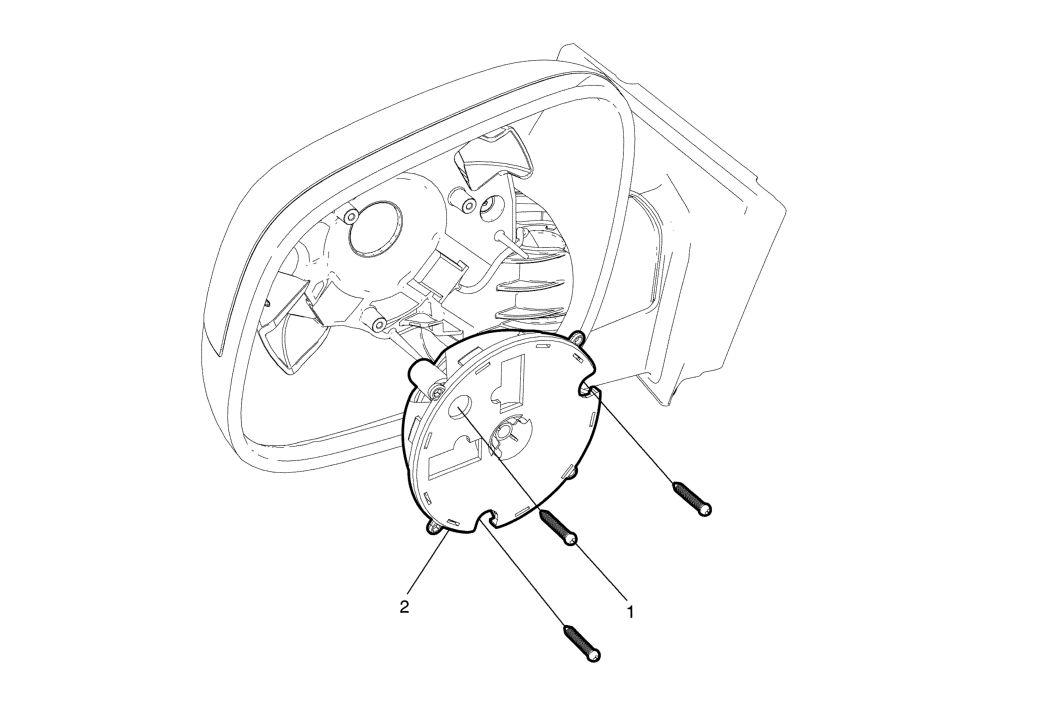

Fig 1: Outside Rearview Mirror Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
1	Outside Rearview Mirror Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
2	Outside Rearview Mirror Motor TIP:  Disconnect the electrical connector.
