Installation Procedure

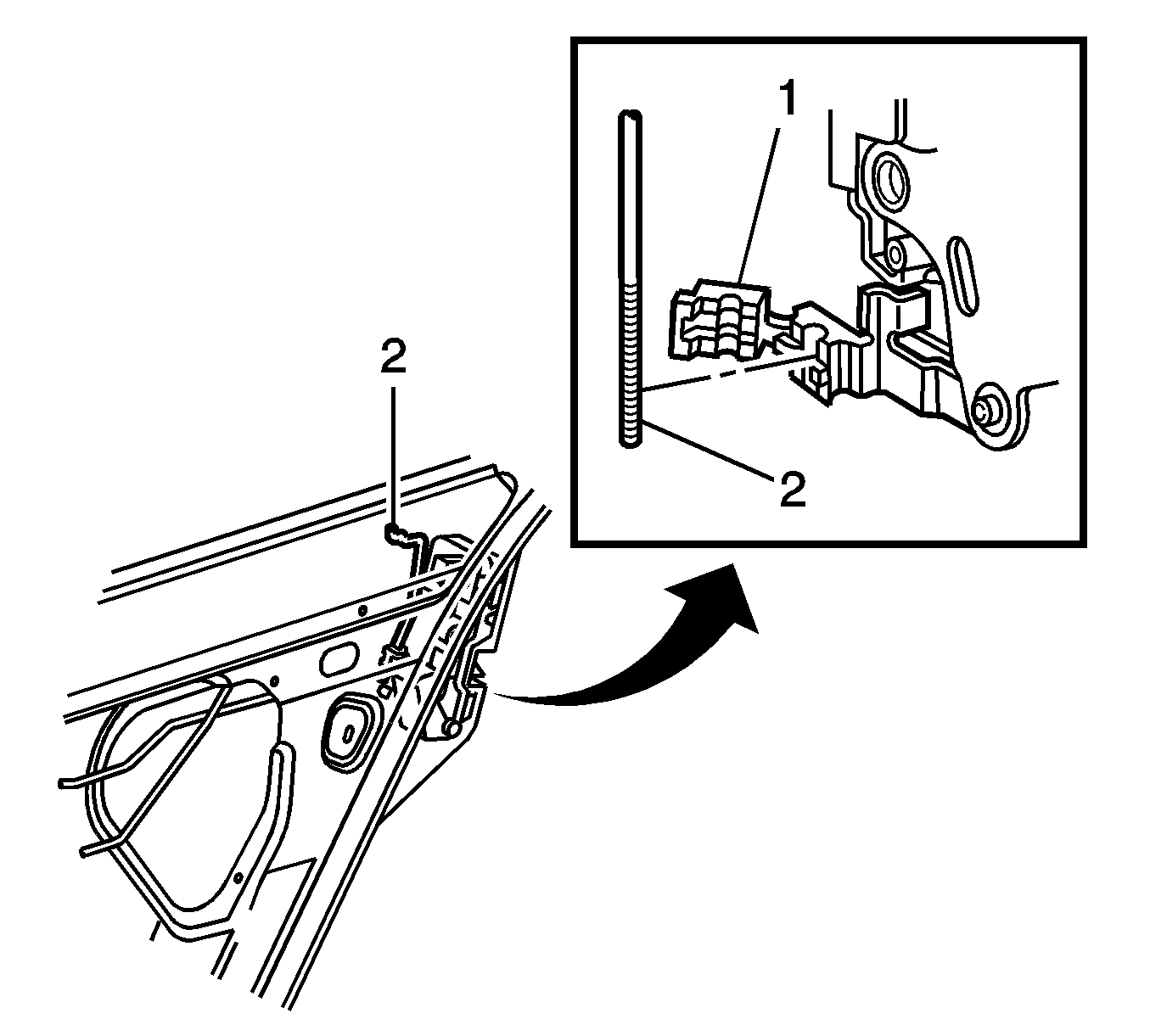

    Fig 1: Positioning Outside Door Handle Rod In Clip
    GM1219512Courtesy of GENERAL MOTORS COMPANY
  1. Position the outside door handle rod (2) in the clip (1) in order to eliminate any free play in the outside door handle.
  2. Install the clip cover closed over the threaded outside door handle rod.
  3. Inspect the door lock system for proper operation.
  4. Install the rear door water deflector as needed. Refer to Rear Side Door Water Deflector Replacement .
  5. Install the rear door trim panel. Refer to Front Side Door Trim Panel Replacement .
