Rear Seat Belt Retractor Replacement

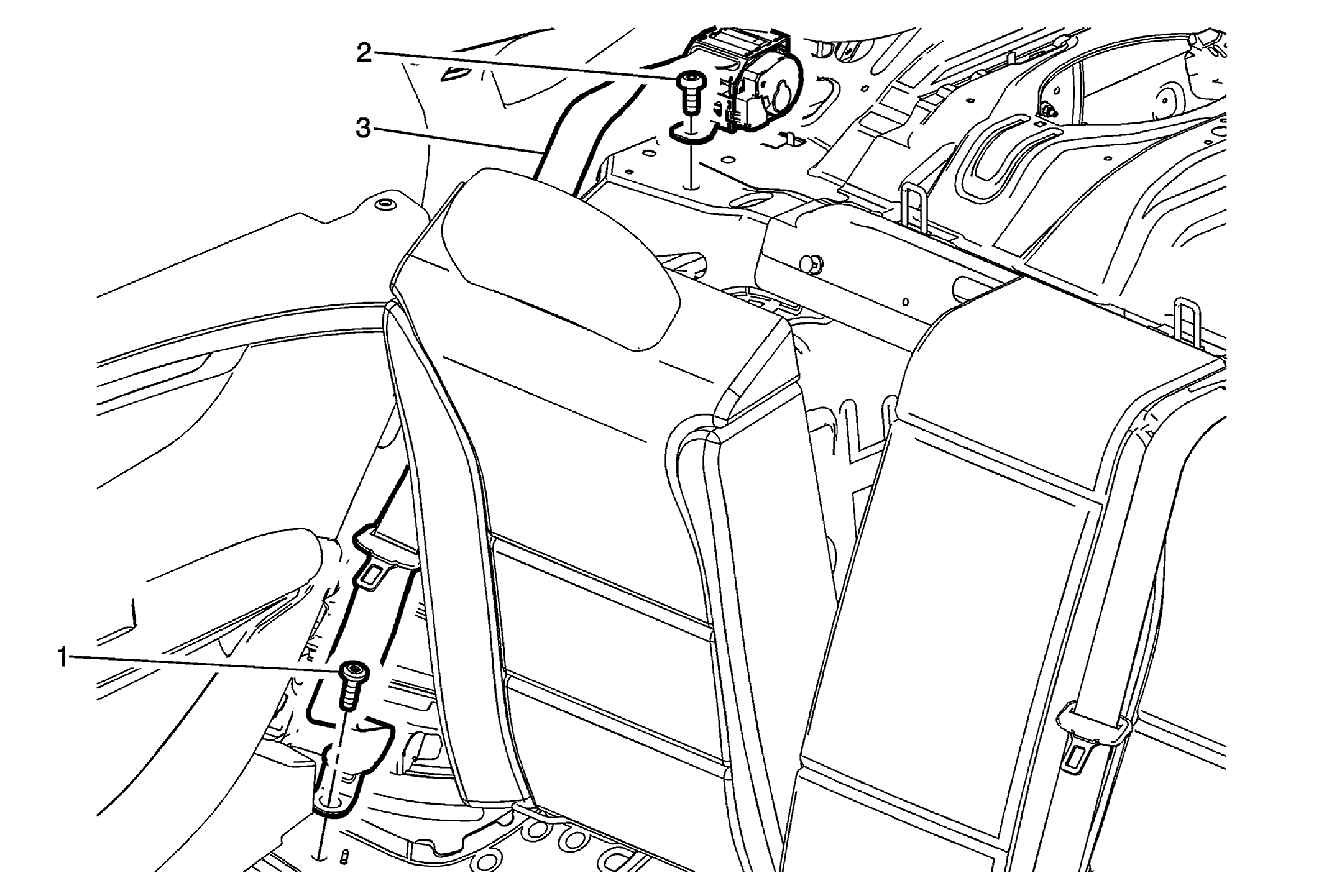

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement . Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement . Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
1	Rear Seat Belt Retractor Anchor Plate Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Bolt Tighten 45 N.m (33 lb ft)
3	Rear Seat Belt Retractor
