Cruise Control Wiring Schematics: Controls

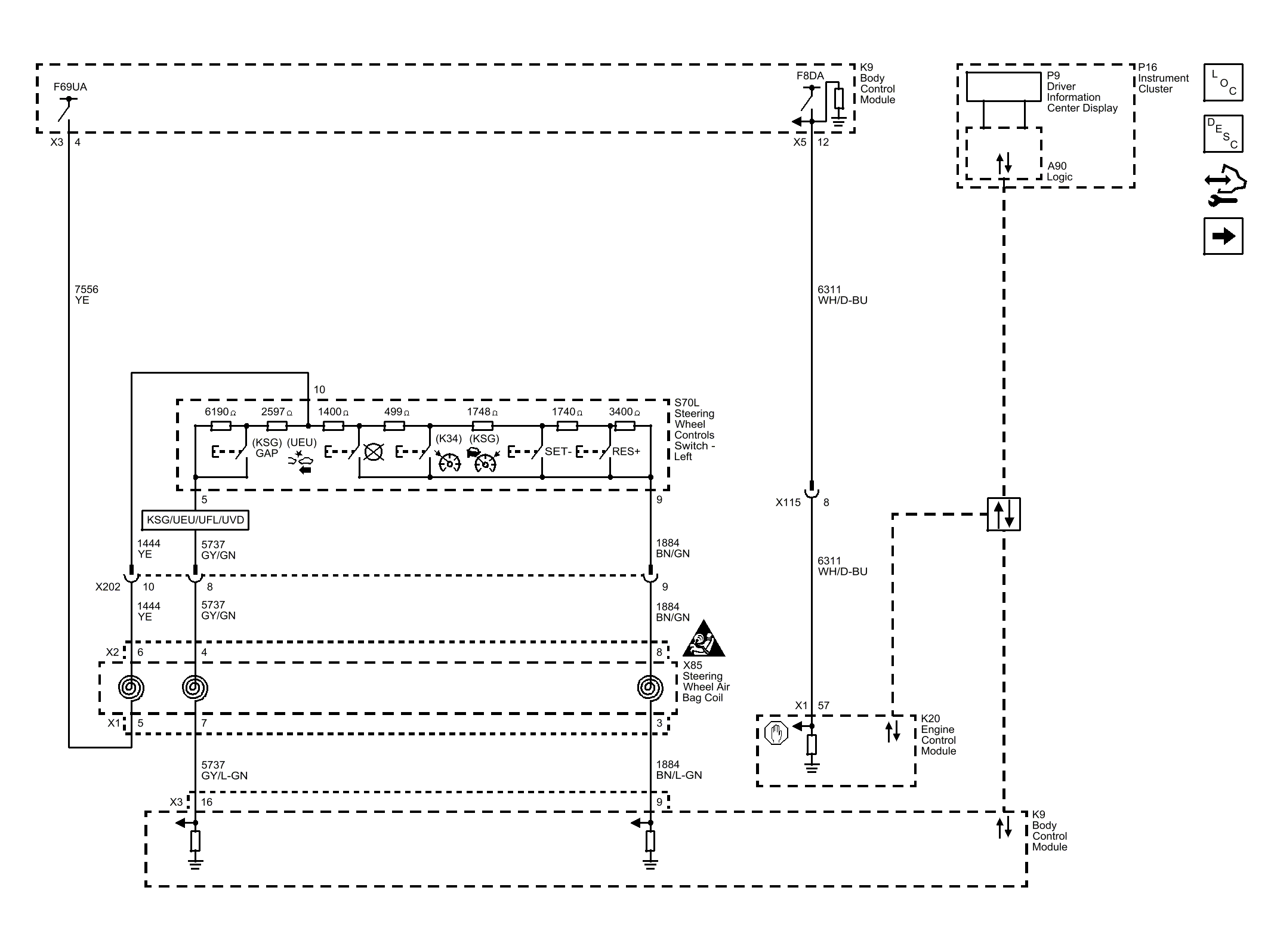

Fig 1: Cruise Control Wiring Schematic

GM2913720

Courtesy of GENERAL MOTORS COMPANY
