Removal Procedure

WARNING: This page is about a different car, the 2012 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Disabling The SIR System
    GM2543255Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to SIR Inflator Module Handling and Storage Warning .

    WARNING:

    Refer to SIR Warning .

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Rotate the steering wheel 180 degrees.

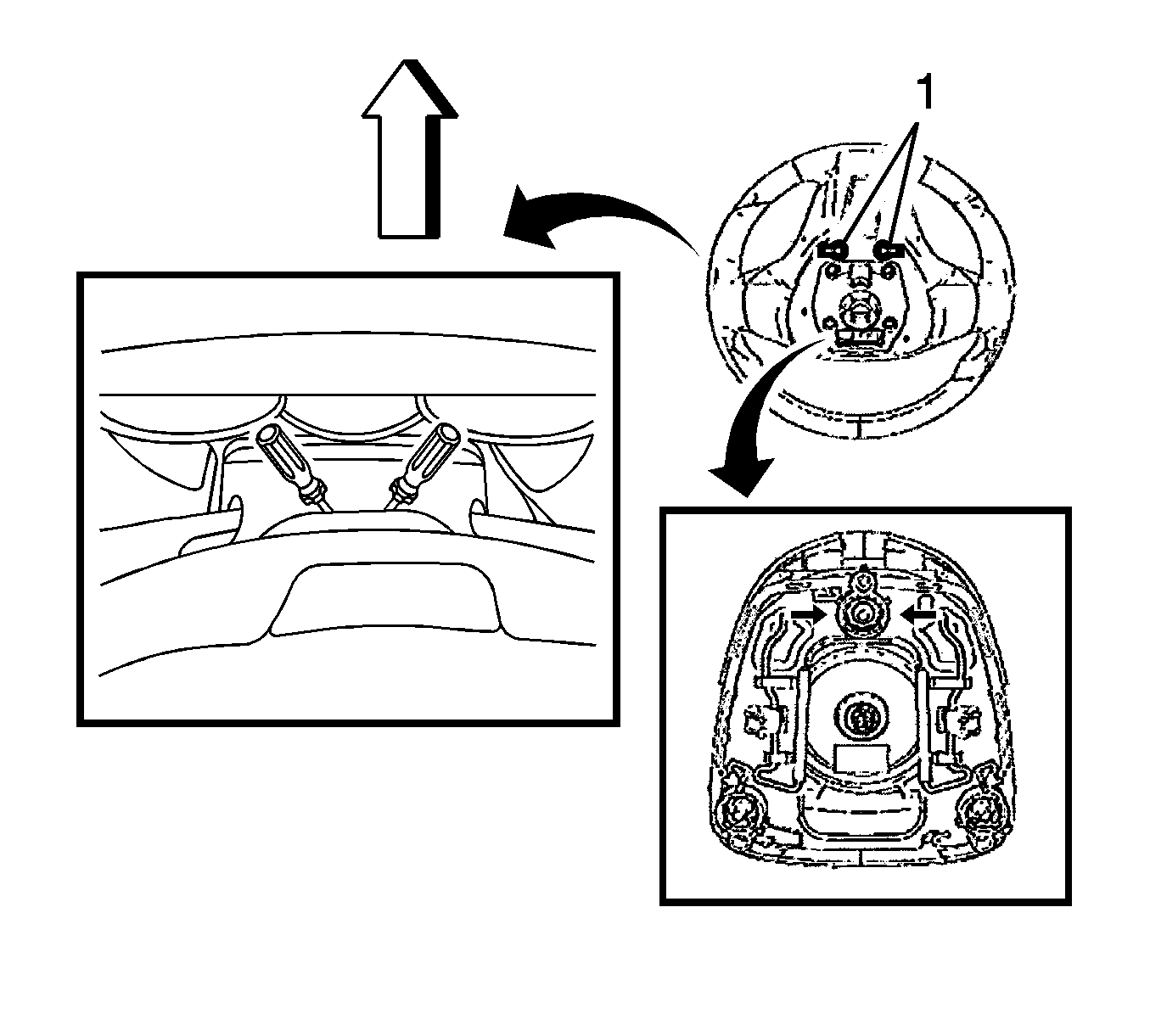

    3. Fig 2: Steering Wheel Access Hole
    GM2543256Courtesy of GENERAL MOTORS COMPANY
  3. Using a blunt-ended tool, push the spring fastener inward through the access hole (1) located on the rear of the steering wheel by pulling the tool outwards.
  4. Keeping the tool inserted, repeat the step for other opening.
  5. Keeping the upper step pull the steering wheel inflatable restraint module out of the steering wheel.
  6. Disconnect the electrical connectors.
  7. Remove the steering wheel inflatable restraint module.
