Manual Transmission Component Views
>>
Shift Control and Shift Lever/Selector Lever Cable Components
Shift Control and Shift Lever/Selector Lever Cable Components

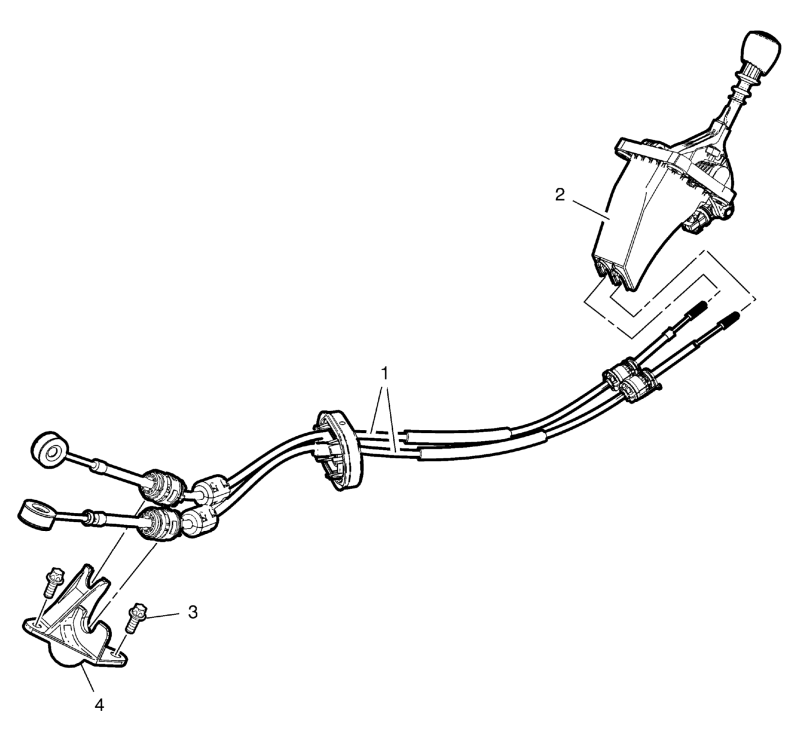

Fig 1: Shift Control and Shift Lever/Selector Lever Cable Components
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Manual Transmission Shift Lever and Selector Lever Cable
2
Shift Control Housing
3
Manual Transmission Selector and Shift Lever Cable Bracket Bolt
4
Manual Transmission Selector and Shift Lever Cable Bracket
