Rear Side Door Window Channel Retainer Replacement

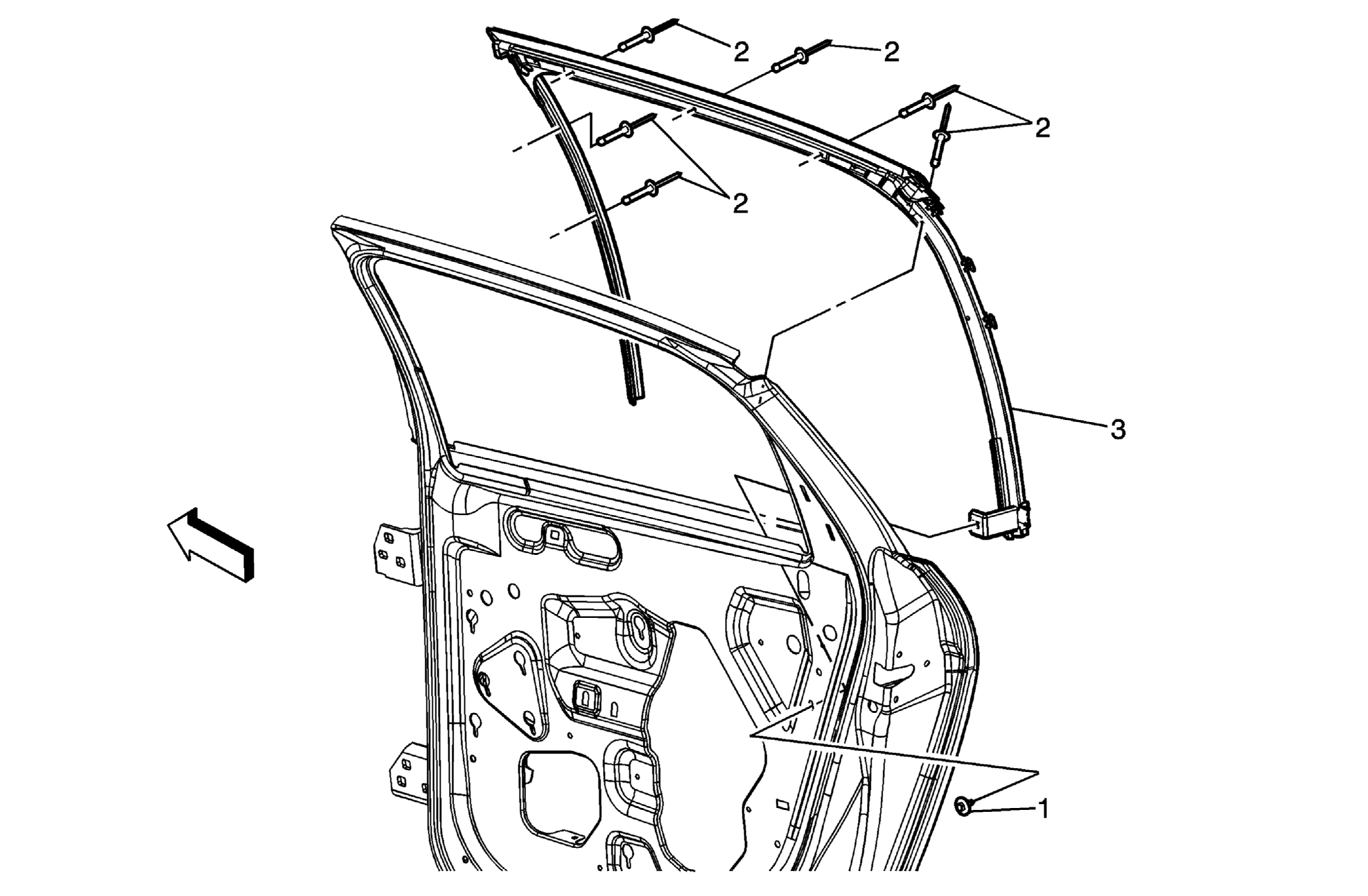

Fig 1: Rear Side Door Window Channel Retainer & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the inside sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement .
1	Rear Door Weatherstrip Seal Retainer Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Door Weatherstrip Seal Retainer Rivets (Qty: 6) TIP: Drill out the rivets from around the upper door frame.
3	Rear Door Weatherstrip Seal Retainer TIP: Pull the weatherstrip retainer upward, slightly twisting weatherstrip retainer to clear the outer sealing strip.
