Intake Manifold Assembly

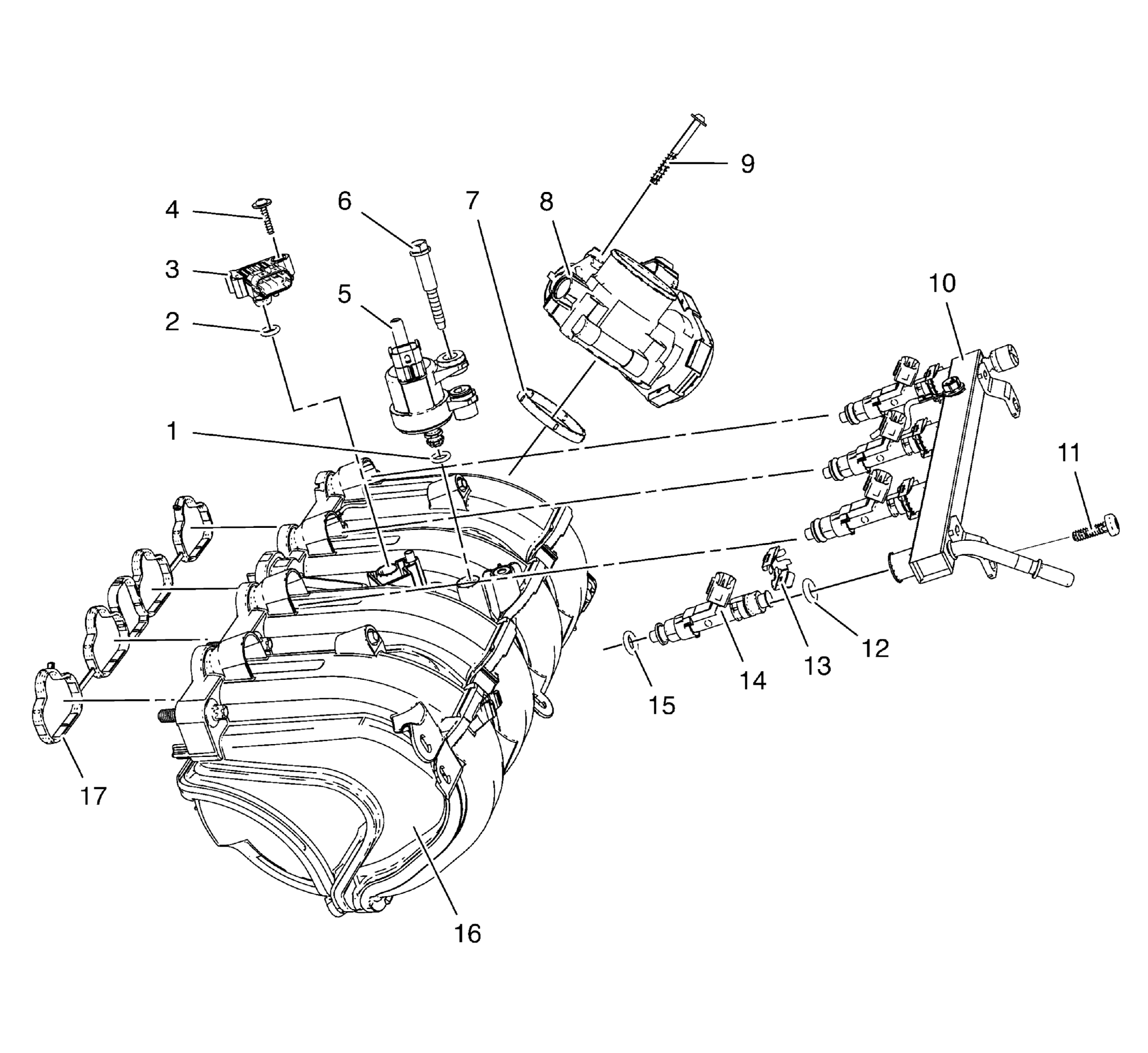

Fig 1: Intake Manifold Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Evaporative Emission Canister Purge Solenoid Valve Seal Ring
2	Manifold Absolute Pressure Sensor Seal Ring
3	Manifold Absolute Pressure Sensor
4	Manifold Absolute Pressure Sensor Bolt
5	Evaporative Emission Canister Purge Solenoid Valve
6	Evaporative Emission Canister Purge Solenoid Valve Bolt
7	Throttle Body Seal Ring
8	Throttle Body
9	Throttle Body Bolt
10	Fuel Injection Fuel Rail
11	Fuel Injection Fuel Rail Bolt
12	Fuel Injector Seal Ring
13	Fuel Injector Retainer Clamp
14	Fuel Injector
15	Fuel Injector Seal Ring
16	Intake Manifold
17	Intake Manifold Gasket
