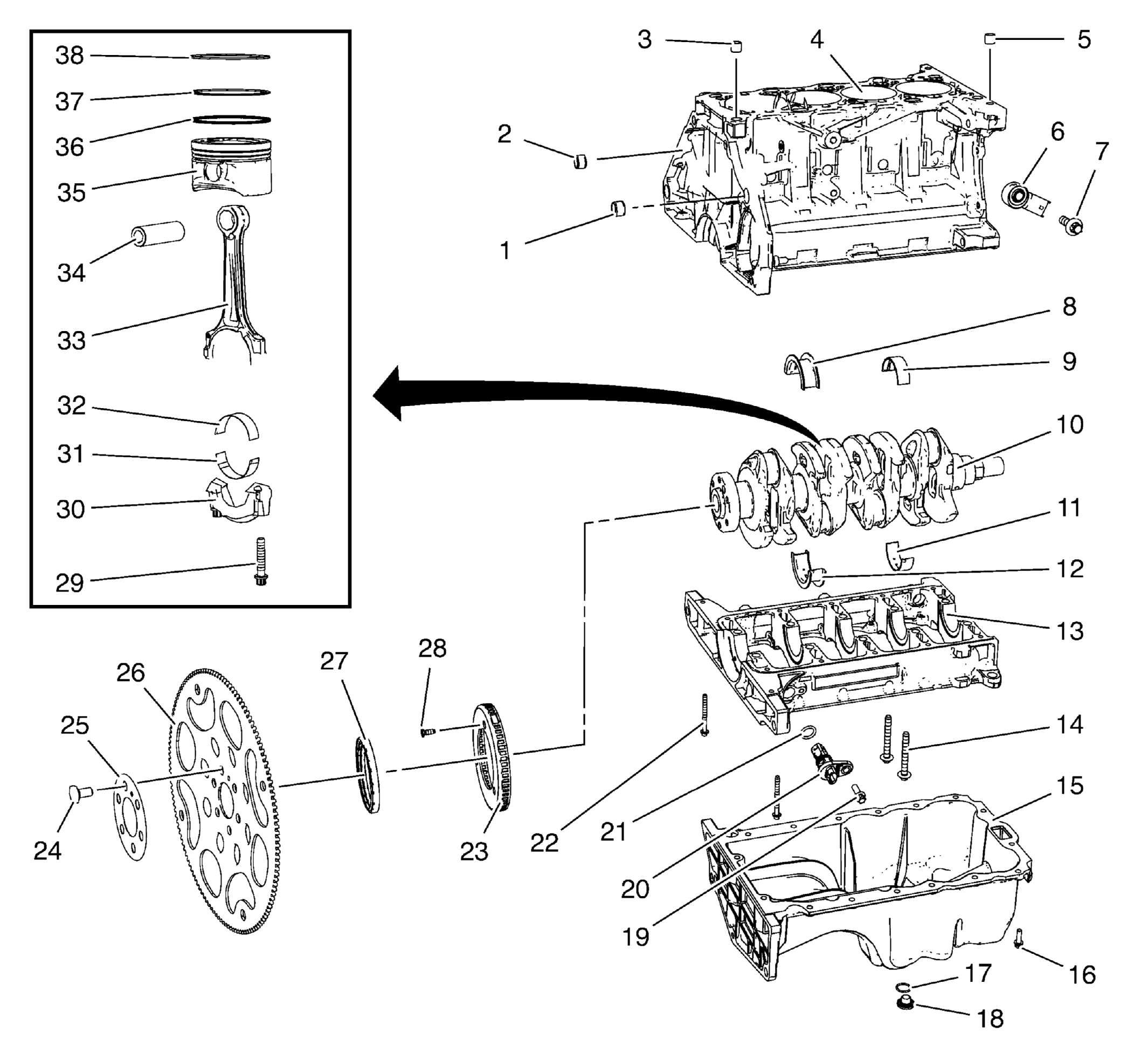

| 1 |
Transmission Guide Sleeve |
| 2 |
Transmission Guide Sleeve |
| 3 |
Cylinder Head Guide Sleeve |
| 4 |
Engine Block |
| 5 |
Cylinder Head Guide Sleeve |
| 6 |
Knock Sensor |
| 7 |
Knock Sensor Bolt |
| 8 |
Upper Crankshaft Thrust Bearing |
| 9 |
Upper Crankshaft Bearing |
| 10 |
Crankshaft |
| 11 |
Lower Crankshaft Bearing |
| 12 |
Lower Crankshaft Thrust Bearing |
| 13 |
Crankshaft Bearing Cap Tie Plate |
| 14 |
Crankshaft Bearing Cap Tie Plate Bolt (M10) |
| 15 |
Oil Pan |
| 16 |
Oil Pan Bolt |
| 17 |
Oil Pan Drain Plug Seal Ring |
| 18 |
Oil Pan Drain Plug |
| 19 |
Crankshaft Position Sensor Bolt |
| 20 |
Crankshaft Position Sensor |
| 21 |
Crankshaft Position Sensor Seal Ring |
| 22 |
Crankshaft Bearing Cap Tie Plate Bolt (M8) |
| 23 |
Crankshaft Position Sensor Reluctor Ring |
| 24 |
Flex Plate Bolt |
| 25 |
Flex Plate Bolt Washer |
| 26 |
Flex Plate |
| 27 |
Crankshaft Rear Oil Seal |
| 28 |
Crankshaft Position Sensor Reluctor Ring Bolt |
| 29 |
Connecting Rod Bearing Cap Bolt |
| 30 |
Connecting Rod Bearing Cap |
| 31 |
Lower Connecting Rod Bearing |
| 32 |
Upper Connecting Rod Bearing |
| 33 |
Connecting Rod |
| 34 |
Piston Pin |
| 35 |
Piston |
| 36 |
Piston Oil Ring (With Oil Ring Spacer) |
| 37 |
Lower Compression Ring |
| 38 |
Upper Compression Ring |
