Manual Transmission Component Views
>>
Shift Control and Shift Lever/Selector Lever Cable Components
Shift Control and Shift Lever/Selector Lever Cable Components

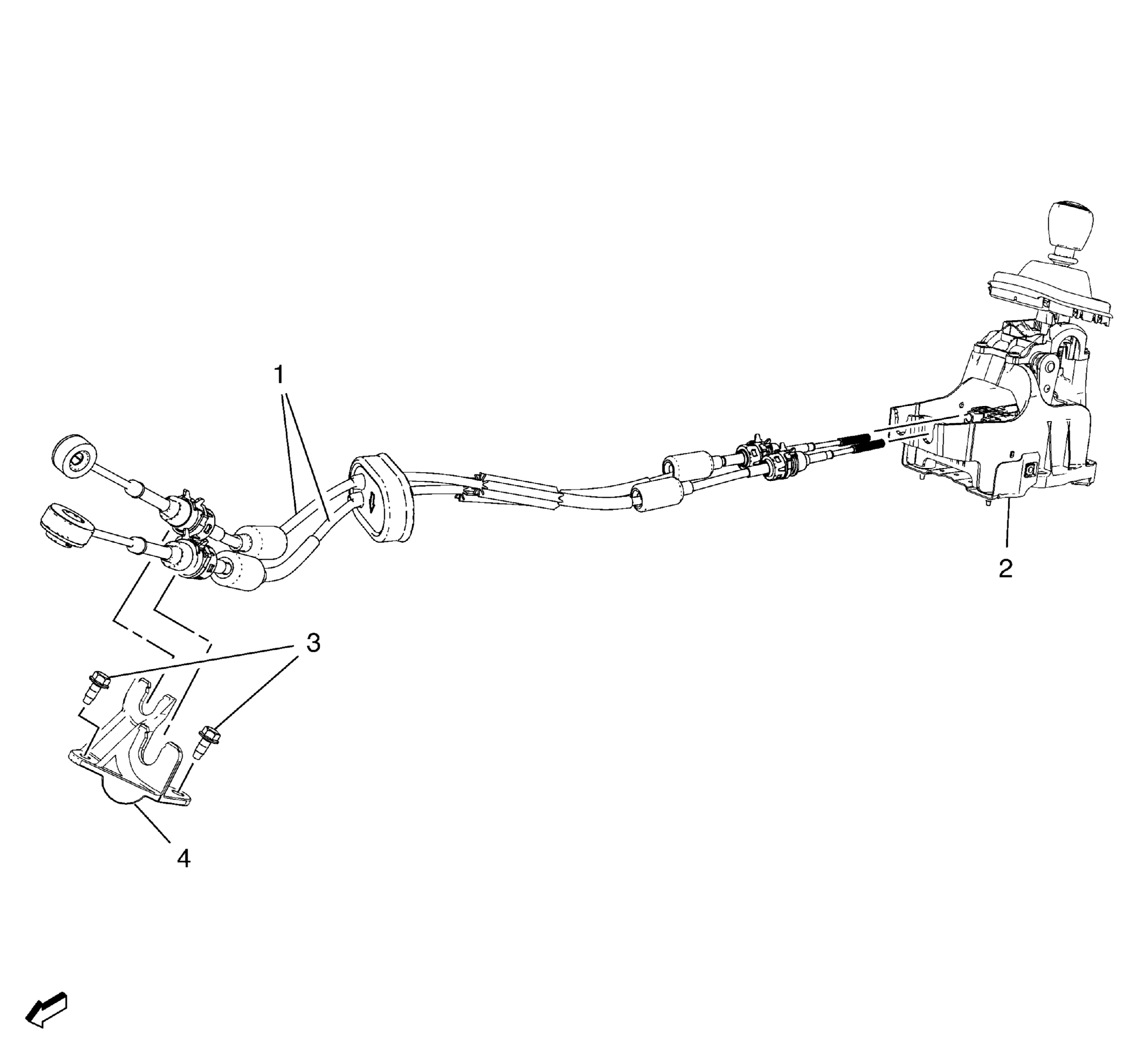

Fig 1: Shift Control And Shift Lever/Selector Lever Cable
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Manual Transmission Shift Lever and Selector Lever Cable
2
Shift Control Lever
3
Manual Transmission Selector and Shift Lever Cable Bracket Bolt (Qty: 2)
4
Manual Transmission Selector and Shift Lever Cable Bracket
